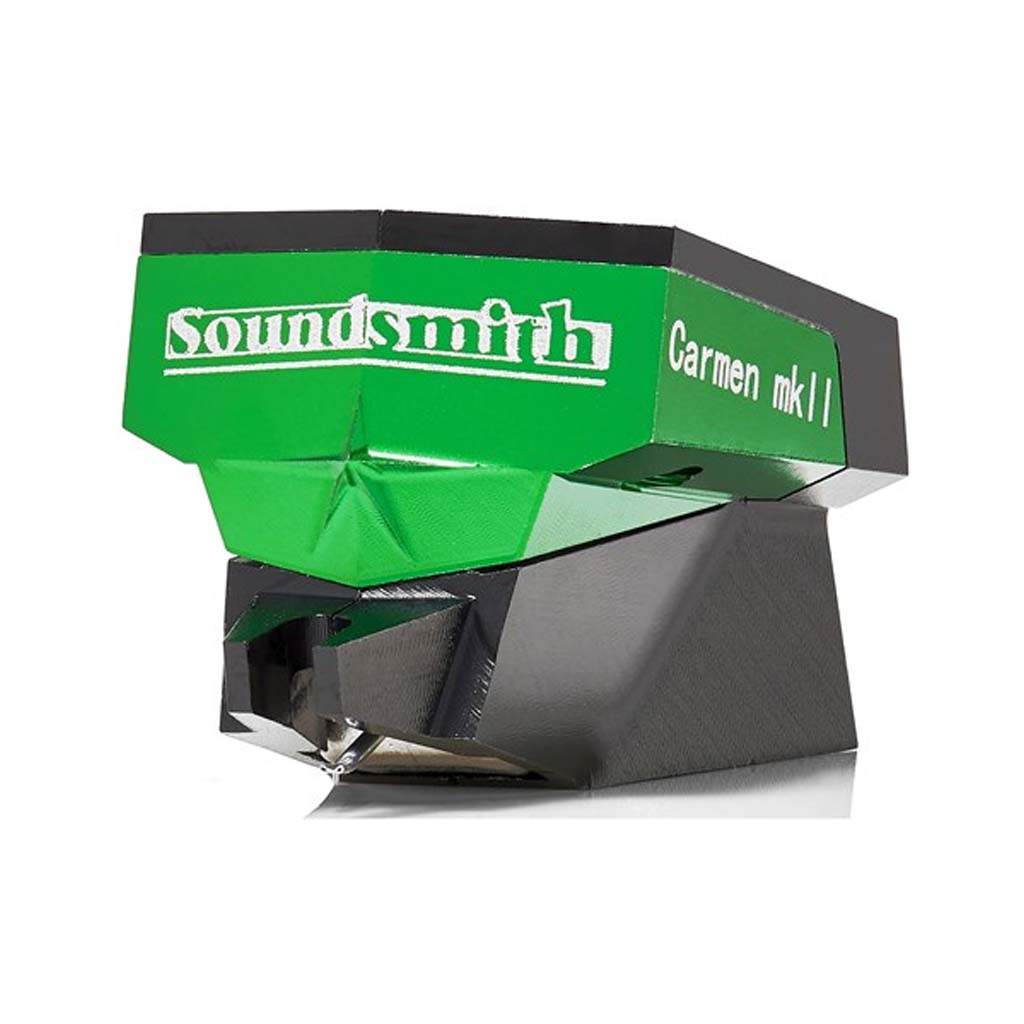

The Soundsmith Carmen MKII is a high-output moving-iron / fixed-coil phono cartridge designed to deliver excellent performance at a comparatively affordable price point. It emphasizes purity of tone, a lush but well-controlled midrange, and smooth presentation. The body is handmade (often in solid ebony), and it offers solid resolution and detail with relatively low distortion. Ideal for listeners who want clarity and musicality, especially with vinyl playback that preserves nuance and depth.

-Fixed Coil / Moving Iron Design — for reduced mechanical noise and jitter, good for detail.
-High Output — allows use with standard MM/MI phono preamps without needing a step-up transformer.
-Nude Elliptical Stylus, Hyper-Elliptical Shape — very low-mass stylus for precise groove tracing and better upper frequency extension.
-Aluminum Alloy Cantilever — balances stiffness and minimal damping to let the stylus follow grooves precisely.
-“ES DEMS” Body Design — includes improved mechanical design and damping / isolation (DEMS = Dynamic Energy Management System) to reduce harmful vibrations and ensure clarity.
-Dual Compliance Options — standard medium compliance, and optionally high compliance for tonearms which favor that.
-Handmade Solid Ebony Case — quality build, durable, adds to aesthetic and mechanical stability.

Cartridge Type: - Fixed Coil / Moving Iron
Stylus: - Nude Elliptical, 0.120 mm square, Hyper-Elliptical shape
Radius of Curvature: - 6 × 17 µm
Cantilever: - Aluminum Alloy
Recommended Tracking Force
-1.3 - 1.6 g (standard / medium compliance)
-Special order: 1.0 - 1.2 g (high compliance)
Effective Tip Mass: -~ 0.35 mg
Compliance
~ 22 µm/mN (Medium compliance)
~ 28 µm/mN (High compliance, special order)
Output Voltage: - ~ 2.12 mV
Frequency Response: -~ 20 – 20,000 Hz ±2.5 dB
Channel Separation
> 26 dB at 1,000 Hz (Stereo)
> 20 dB from 50 – 15,000 Hz
Channel Difference
< 1.6 dB (Stereo)
< 1.0 dB (Mono version)
Cartridge Weight: - ~ 9.2 grams for ES-series body
Loading: - ≥ 47 kΩ recommended load resistance
