Overview
Integrated amplifiers have become the essential audio component, distilling sources, amp, preamp and interconnects into a single chassis. And since 2015, connoisseurs have revered the Gryphon Diablo 300 as the finest integrated amplifier ever produced and a genuine “Object of Desire.” Unanimously praised by critics and with thousands sold, it became High End Audio’s most coveted “Ultra-Luxe” integrated.
Surpassing the ‘300 was no easy feat; however, thanks to the engineering genius of Gryphon’s Chief Designer, Tom Moeller, the artistic sensibilities of Gryphon Founder Flemming Rasmussen as well as the development of cutting-edge component technologies, Gryphon has authored a new benchmark, better in virtually every respect than its iconic predecessor. A completely reimagined amplifier whose ideal feature set, aesthetic beauty, heirloom build quality and enormous performance envelope establish an unprecedented level of excellence. Gryphon proudly introduces Diablo 333: The World’s Finest Integrated Amplifier.

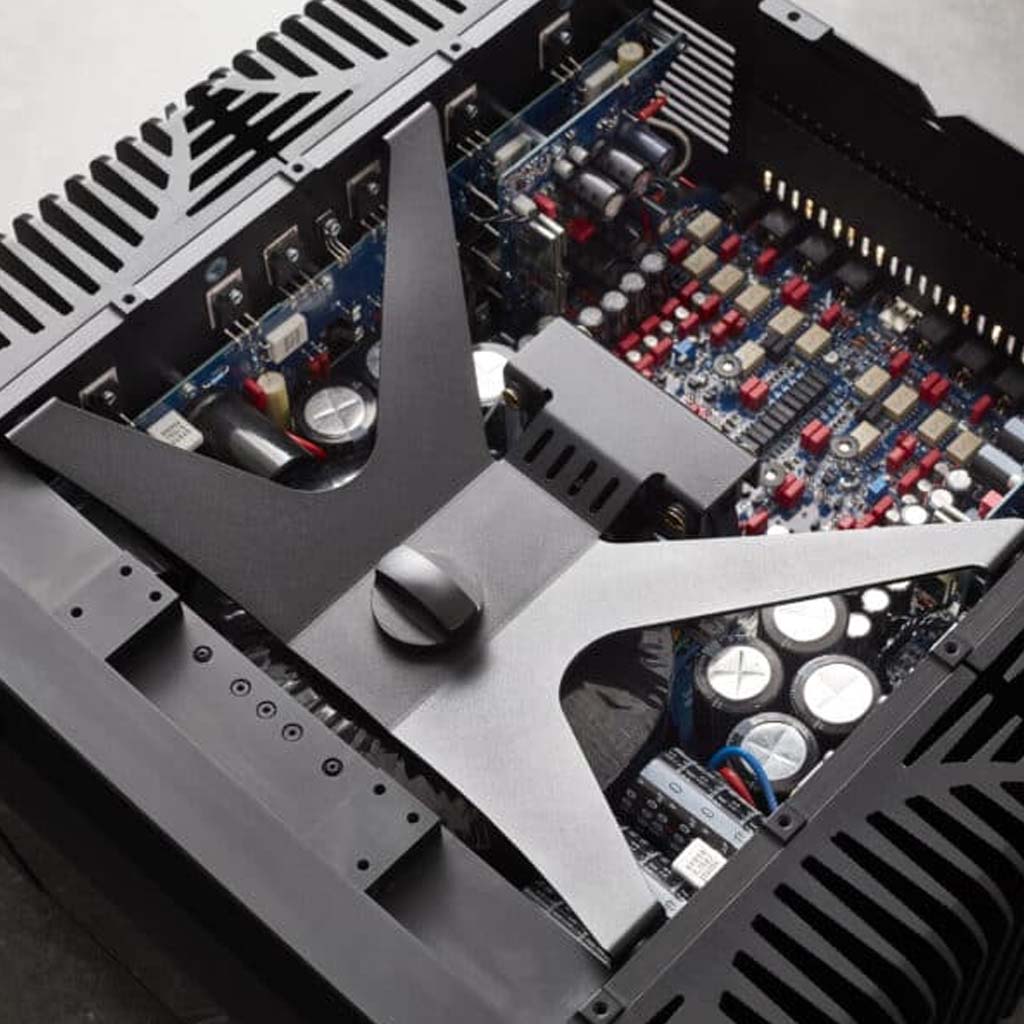

Our new Integrated boasts ten percent more output power than its legendary predecessor, but there’s more to 333’s performance than wattage alone. Circuit advancements and parts from the new Apex and Commander, Gryphon’s flagship Amplifier and Preamplifier, have “Trickled-Down” to the Diablo 333. New, ultra-fast, pre-driver transistors deliver both enhanced musicality and superior measured performance while output devices—ten per channel—are identical to those found in our State-of-the-Art Apex. A massively augmented power supply distinguished by an oversized Holmgren Dual-Mono Transformer and 68,000uF per channel filter capacitance provide enormous dynamic headroom and explain the 333’s 50.6 Kg (112 lb) mass.

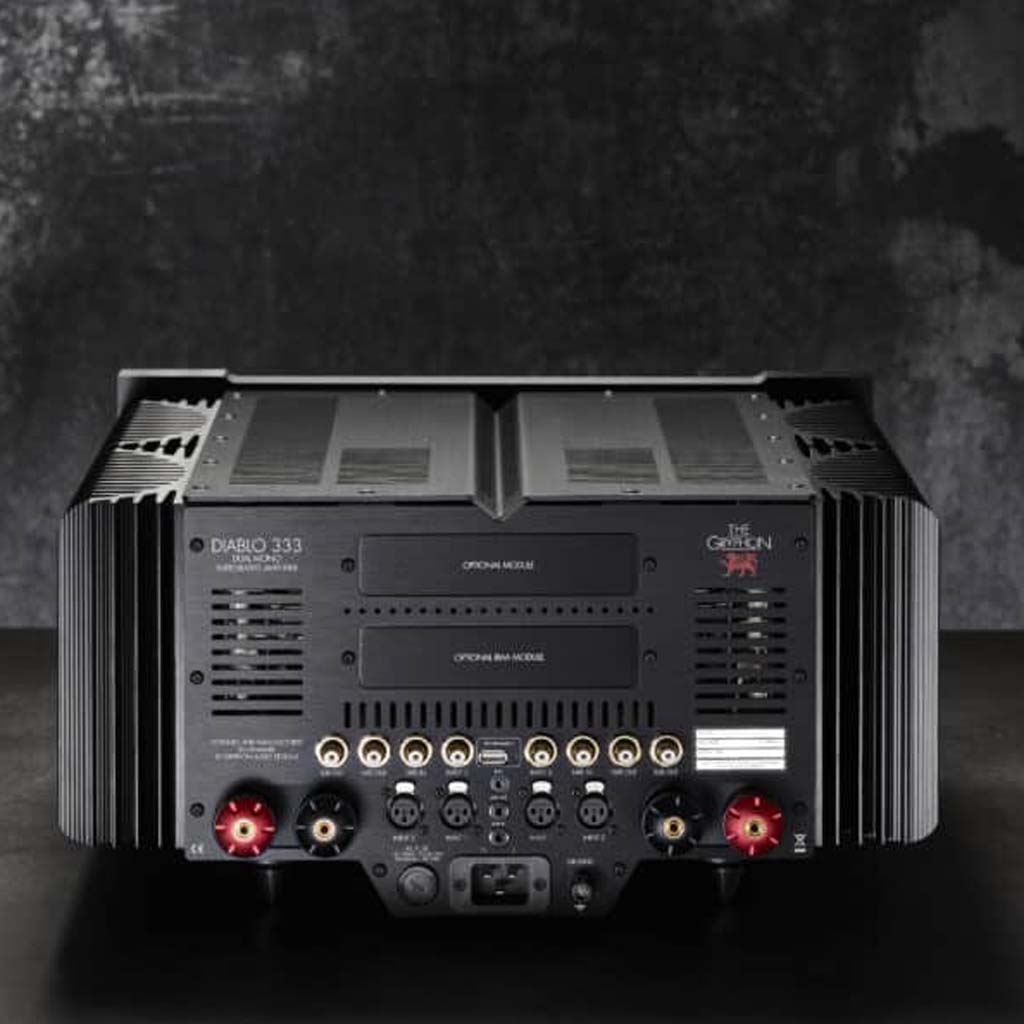

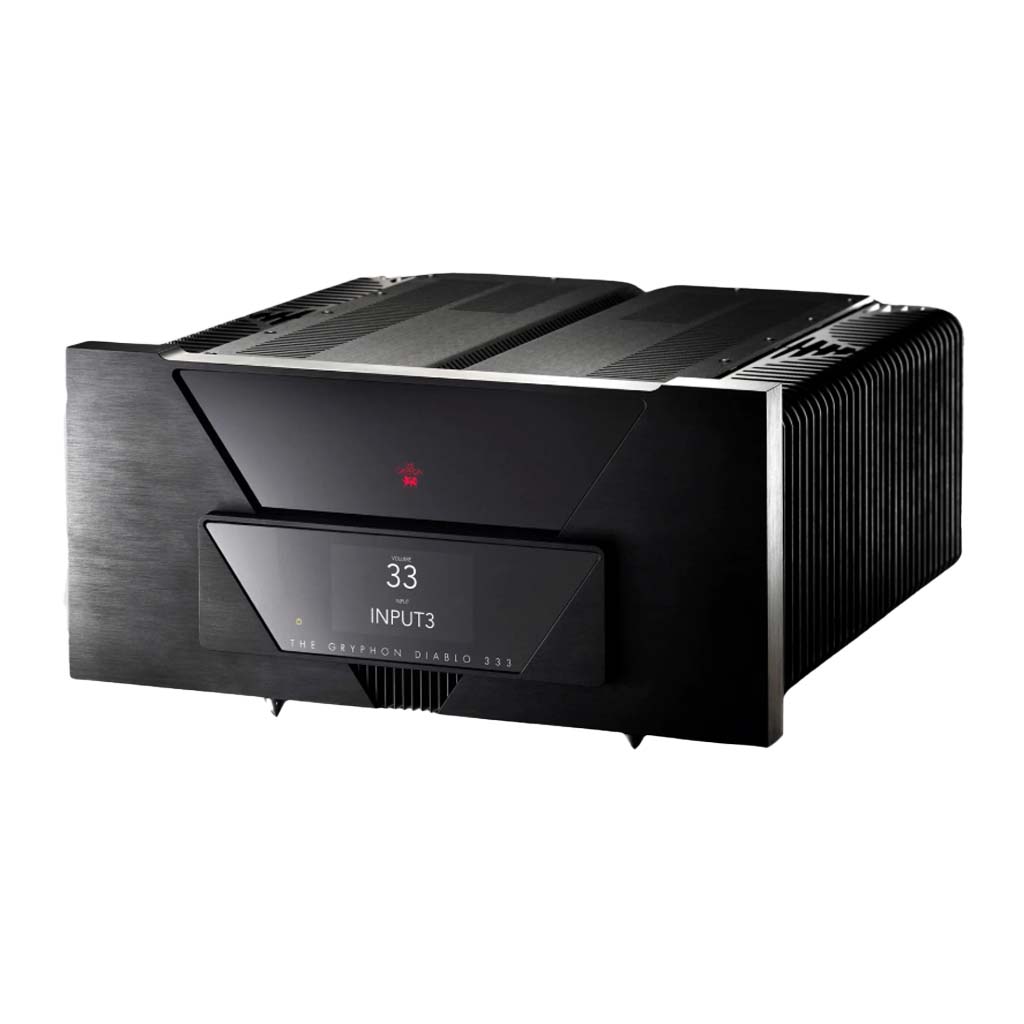

One look at the 333 and the Gryphon DNA is obvious: the triangular display panel with 4.3” TFT capacitive touch screen evokes the aesthetic created for Apex and Commander by Gryphon Founder Flemming Rasmussen, as do custom-made chassis spikes which enhance both mechanical stability and visual harmony. Also developed for Apex, Gryphon’s bespoke binding posts adorn the 333’s back panel, which also reveals a generous connector complement, including dual Subwoofer Outputs, a Tape Loop and the ability to select an XLR or RCA “Unity Gain” Home Theater throughput. Sculpted from billet aluminum, the remote handset from Commander replaces the “Wand” remote supplied with Diablo 300. A new, more intuitive menu structure enhances the user interface while a USB 2.0 socket on Diablo’s rear panel simplifies firmware upgrades.
As with the Diablo 300, the 333’s capabilities can be expanded with optional Phono and DAC modules. As befits an all-new amplifier, these modules have also been completely redesigned and their performance elevated. The PS-3 Phono Module features True Dual Mono Class A-coupled topology from input to output, with no global negative feedback and discrete balanced circuitry featuring matched transistor arrays. Gold-plated Neutrik XLR balanced input sockets replace the RCA sockets utilized in the previous generation PS-2S. MC load impedance can be set externally with left/right rear panel switches, versus the less convenient internal jumpers found on the PS-2S . MC/MM setting is front-panel selectable via the Diablo 333 menu. Gryphon’s new DAC-3 D/A MODULE incorporates the latest High-Performance Sabre DAC: the ES9039PRO. Seven user-selectable PCM digital roll-off filters are included, as are a full assortment of USB, AES/EBU, BNC and TOSLINK inputs. The 333’s USB input is compatible with all current Digital Audio Formats.
A New Icon
For music lovers fortunate enough to own a Diablo 300—as well as those of you who have dreamed of owning one—rest assured: the ‘300 remains one of the finest Integrated Amplifiers available, still outperforming newer and more expensive competitors. And yet, purists who quest for the best will find Diablo 333 superior in virtually every aspect of performance, connectivity and parts specification.
Every detail of its legendary predecessor has been scrutinized and, wherever possible, improved; as a result, The 333 now represents the pinnacle of Integrated Amplifier technology.
Diablo 333: the new definition of perfection.
Output impedance: 0,015Ω
Bandwidth (-3dB): 0,1Hz to 350 kHz
Power Supply Capacity: 2 x 68.000uF
Gain: +38dB
SUB output gain: +12dB
Input Impedance, balanced (20-20000Hz): 50KΩ
Input Impedance, single ended (20-20000Hz): 30KΩ
Power consumption: ≤ 0.5W (standby), approx. 180W (idle)
AC voltage range: 110-120V OR 220-240V – not changeable.
Operating ambient temperature range: 15 - 30°C / 59 - 86°F
MENU-controlled functions:
Volume Max Level
Volume Start Level
Display Intensity: (100%-75%-50%-25%, Auto Dim and Auto OFF)
Infrared source (Front or Rear Panel)
Input Level Match
Input Naming
Dedicate Input 2 (XLR) or Input 3 (RCA) to Volume-Bypass AV-input
Restore Settings
Phono Stage MM/MC selection (optional)
DAC level and filter settings (optional)
Outer dimensions, W x D x H:
468mm x 472mm x 245mm 18.4in x 18.6in x 9.66in
Net weight:
50,6kg – 112lb
Shipping weight:
67,0kg – 148lb
Note: Specifications can be changed without
Orders ship Sunday through Friday from our offices in Dubai, UAE.
In-stock products typically ship within 48 hours and should be expected to arrive in 3-4 business days. Orders outside of the UAE should be expected to arrive in 5-7 business days.
Pre-order and backorder products will state the approximate delivery timeline beside the Add To Cart button.
If you would like to place a custom order, chat with our specialists for a guided shopping experience. Once your order has been placed, a timeline will be provided depending on your order details.
- Free delivery within the UAE
- Shipping charges will be calculated upon checkout for orders outside of the UAE (Bahrain, Oman, Kuwait, Saudi Arabia & Qatar).
- Taxes and duties are calculated according to the applicable laws of the state or country an item is shipped to and are the customer's responsibility.
For additional information on shipping and our exchange & return policy visit our help center.
Installation charges are applicable and can be paid upon delivery for our clients based in Dubai.
- Installation Charges: AED 450 Per Hour
- Speaker Cables: AED 32 Per Meter
- Trunking: AED 10 Per Meter
For clients based outside of the UAE, please contact our specialists and we will share an estimate based on your requirements.
Diablo 300 incorporates a full-range subwoofer output and, for use in a surround setup without compromising the stereo performance of the Diablo 300, an AV throughput allows the Diablo 300 to drive the two main channels without the need to rewire or recalibrate the system when switching between stereo and surround operation.
Diablo 300 can be configured for automatic level matching of inputs to protect the owner’s ears and equipment when switching between sources with varying output levels. The volume control is linked to the Mute control to prevent increasing volume while the muting circuit is active. This eliminates the risk of loudspeaker damage through accidental overpowering.
For further protection, a fixed start level and fixed maximum level can be selected in the Diablo 300 setup menu.
An intelligent, non-invasive protection system constantly monitors operational status and, in the unlikely event of any problem, shuts down quickly and safely to protect your investment.
Custom-built Gryphon speaker terminals accept bare wire, spade lugs or banana plugs for a tight, reliable connection and 12V DC link inputs and outputs are provided for integration with a home automation system.
