MSB Technology
Discrete DAC

From: AED 48,300 (Inc. Tax)

Free delivery on orders above AED 500 in UAE.

48300
MSB Technology

The Network Renderer V2

There are many renderer interfaces in the industry. The MSB Renderer was developed using an in-house hardware design running an ultra low noise A5 processor for optimal audio playback performance. MSB's Renderer V2 interface is MQA and Roon Ready and has a maximum sample rate of 32/768kHz and 4xDSD. The entire renderer solution is galvanically isolated from the DAC including isolated power.

MSB Technology

Pro USB

The Pro USB

Ultimate isolation. Ultimate performance.

MSB Technology

Discrete Power Supply

Superior conversion begins with clean and stable low-noise power. The Discrete Power Supply feeds the DAC with dual low-noise power streams that are linear and independent. That’s not all—the CNC unibody aluminum chassis provides the discrete power supply with optimal thermal performance and an elegant design aesthetic. The DAC comes equipped with a single power supply, but can be augmented with a second discrete power supply to enable optimized power isolation between all major components.

Available on backorder


Need Assistance?

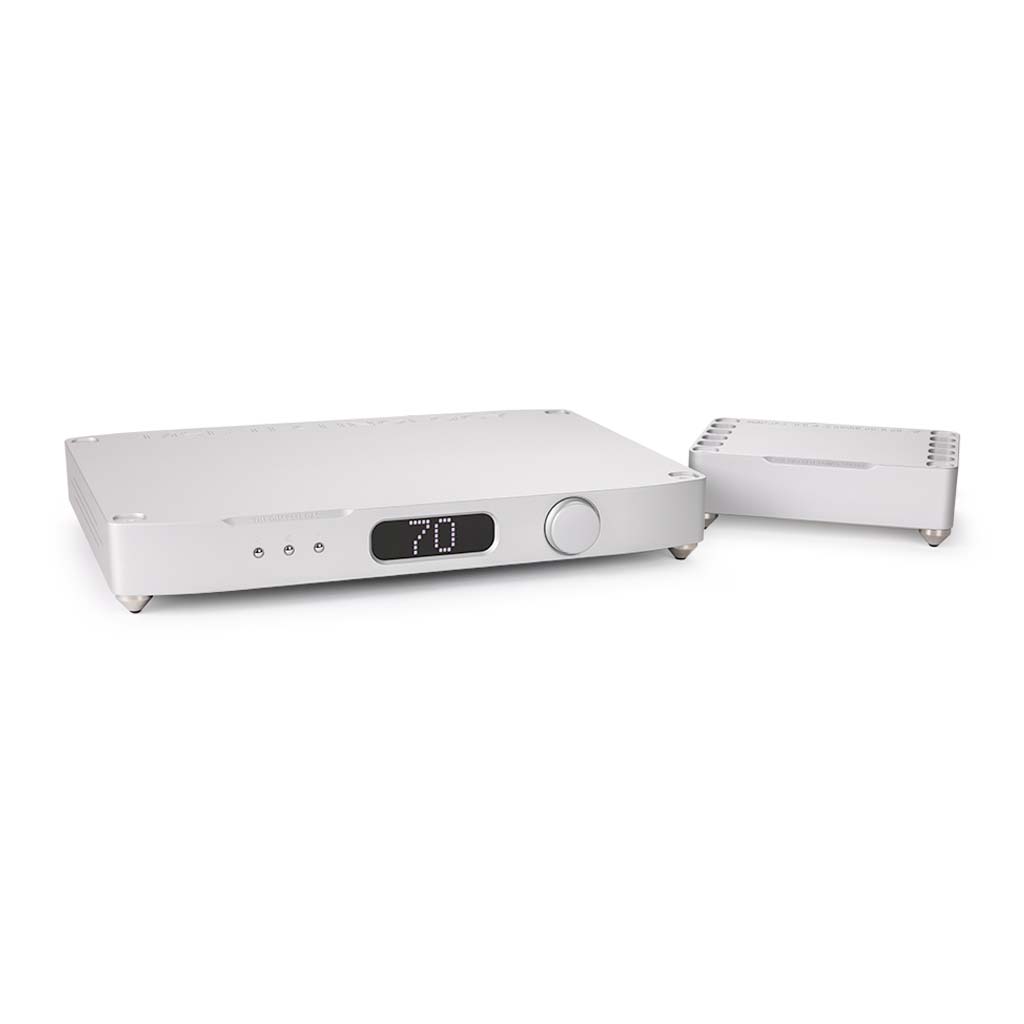

The Discrete DAC

Refined sound. Elegant design.

Read More

Overview

The Prime DAC Module.
With two prime DACs, we yield an unprecedented level of detail, reproducing the musicality, soundstage, and texture of an original performance, bringing the artist to you. A fully balanced, ultra-high precision, discrete ladder DAC architecture ensures each note tells a story. Additionally, MSB’s robust in-house design enables the finest quality playback of PCM and native DSD, while our low impedance circuitry drives your amplification directly without adding coloration or buffering noise. The end result is a digital experience defying expectations.

A display for the listening chair.
Equipped with high-visibility and a wide viewing angle, the display is both easy-to-read and stunning, exhibiting our love for intuitive features. The LED display, slaved to the audio clock, is refreshed between data processing to drastically reduce electrical interference. The in-house discrete design is then constructed into its own shielded CNC pocket for optimal isolation. Sit back and be immersed.

Integrated clock. Flexible Configurations.
A modular I/O card keeps even the discrete DAC flexible, repairable, and upgradeable. Along with an integrated clock, changing this card allows switching between single-ended and balanced outputs.

Engaging with the future.
MSB thrives off the innovation required to meet consumer demands. We’re constantly improving digital input modules to stay at the forefront of the high-end audio industry, ensuring you’re always equipped with the most current digital file formats and interfaces. Focusing on our network renderer and USB input, your audio tech will be on the cutting edge. Put simply, your DAC is ready for the future.

A better USB solution.
The Pro USB was developed to offer a multi part USB solution that features complete electrical isolation and all the performance of MSB’s proprietary Pro ISL input. The Pro USB is offered as a stand alone module for users who already have an MSB DAC that is equipped with a Pro ISL input as well as a starter kit with a Pro ISL input and everything you need to get up and running.

– Complete electrical isolation
– Up to 32 bit – 768kHz
– MQA decoding
– Up to 8X DSD
– Up to 1km lossless transmission

Superior streaming.
The MSB Renderer was developed using an in-house hardware design running an ultra low noise A5 processor for optimal audio playback performance. Over the air updates will ensure that your renderer always has the latest capabilities and ultimate convenience.

– Up to 32 bit – 768kHz
– MQA decoding
– Roon Endpoint
– Up to 4X DSD
– UPnP Protocol
– DLNA Protocol

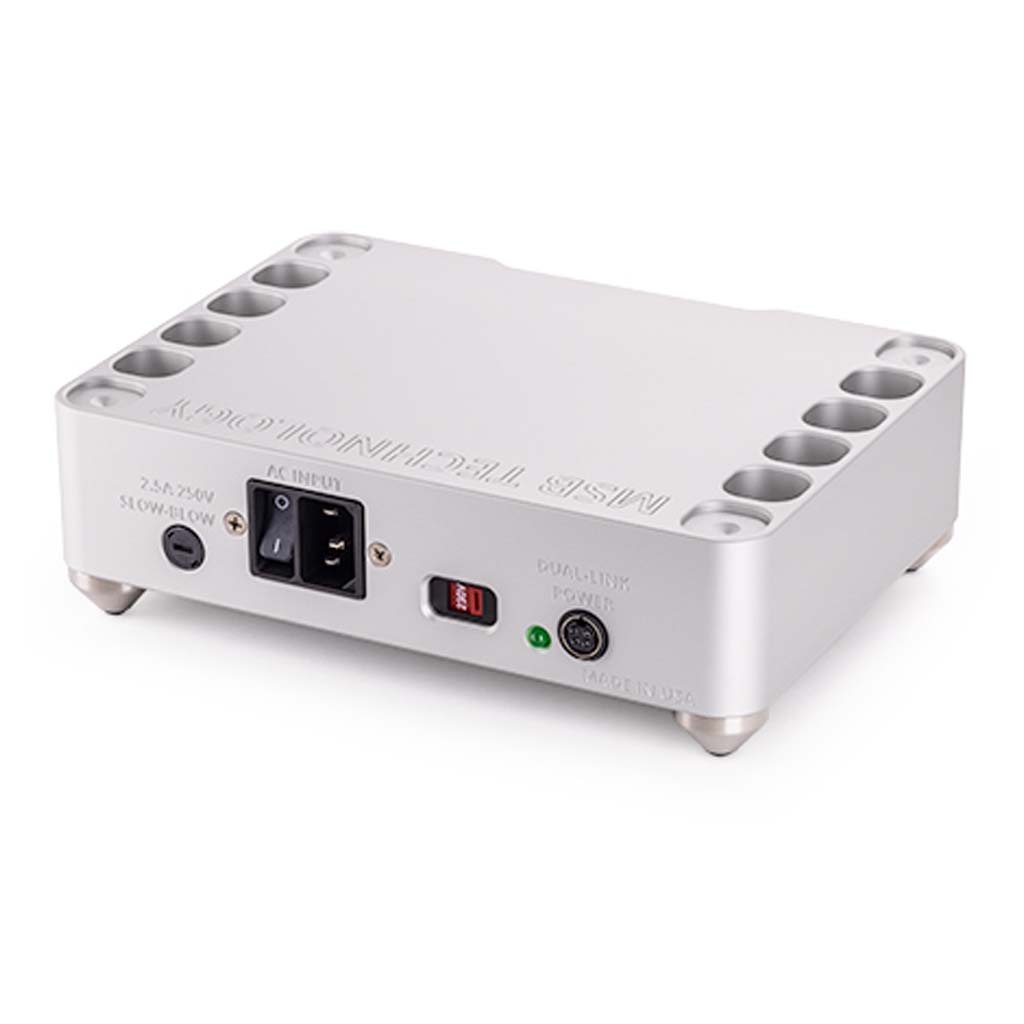

Discrete Power Supply.
Superior conversion begins with clean and stable low-noise power. The Discrete Power Supply feeds the DAC with dual low-noise power streams that are linear and independent. That’s not all—the CNC unibody aluminum chassis provides the discrete power supply with optimal thermal performance and an elegant design aesthetic. The DAC comes equipped with a single power supply, but can be augmented with a second discrete power supply to enable optimized power isolation between all major components.

Completely modular.
Paired with performance increases, our modular design ethos increases flexibility for future updates and product support, guaranteeing a long-term product investment. As you pursue higher levels of playback, an MSB upgrade path is always available to help drive your own desire for innovation. Whether it’s a software update or a leading-edge modular component, we’re here to help the most valued aspect of MSB—our customers.

The MSB Remote.
When we set out to make the MSB remote, the design was built from the ground up. Stainless steel buttons arrayed around an elegant volume wheel to optimize performance and response. California crafted in-house from an aluminum billet, the enclosure feels solid yet refined. Tailored for both the transport and the DAC’s daily use, our remote brings you closer to the music you love.

Engaging with the future.
MSB thrives off the innovation required to meet consumer demands. We’re constantly improving digital input modules to stay at the forefront of the high-end audio industry, ensuring you’re always equipped with the most current digital file formats and interfaces. Focusing on our network renderer and USB input, your audio tech will be on the cutting edge. Put simply, your DAC is ready for the future.

A better USB solution.
The Pro USB was developed to offer a multi part USB solution that features complete electrical isolation and all the performance of MSB’s proprietary Pro ISL input. The Pro USB is offered as a stand alone module for users who already have an MSB DAC that is equipped with a Pro ISL input as well as a starter kit with a Pro ISL input and everything you need to get up and running.

– Complete electrical isolation
– Up to 32 bit – 768kHz
– MQA decoding
– Up to 8X DSD
– Up to 1km lossless transmission

Superior streaming.
The MSB Renderer was developed using an in-house hardware design running an ultra low noise A5 processor for optimal audio playback performance. Over the air updates will ensure that your renderer always has the latest capabilities and ultimate convenience.

– Up to 32 bit – 768kHz
– MQA decoding
– Roon Endpoint
– Up to 4X DSD
– UPnP Protocol
– DLNA Protocol

Discrete Power Supply.
Superior conversion begins with clean and stable low-noise power. The Discrete Power Supply feeds the DAC with dual low-noise power streams that are linear and independent. That’s not all—the CNC unibody aluminum chassis provides the discrete power supply with optimal thermal performance and an elegant design aesthetic. The DAC comes equipped with a single power supply, but can be augmented with a second discrete power supply to enable optimized power isolation between all major components.

Completely modular.
Paired with performance increases, our modular design ethos increases flexibility for future updates and product support, guaranteeing a long-term product investment. As you pursue higher levels of playback, an MSB upgrade path is always available to help drive your own desire for innovation. Whether it’s a software update or a leading-edge modular component, we’re here to help the most valued aspect of MSB—our customers.

The MSB Remote.
When we set out to make the MSB remote, the design was built from the ground up. Stainless steel buttons arrayed around an elegant volume wheel to optimize performance and response. California crafted in-house from an aluminum billet, the enclosure feels solid yet refined. Tailored for both the transport and the DAC’s daily use, our remote brings you closer to the music you love.
The Discrete DAC
Supported Formats (Input dependent):44.1kHz to 3,072kHz PCM up to 32 bits
1xDSD, 2xDSD, 4xDSD, 8xDSD Supports DSD via DoP on all inputs
Digital Inputs:
- 1x RCA Coaxial
- 1x XLR
- 1x Word-Sync
- 2x Toslink
- 2x Advanced isolated input module slots
XLR Analog Outputs:
- 3.57Vrms Maximum
- 300Ω Balanced
- Galvanically isolated
Volume Control:1dB steps (Range 0 - 106).Volume Control can be disabled in the menu.
Display:Discrete LED audio clock synchronous display Adjustable brightness and auto-off feature
Controls:
- Isolated RS-232
- IR Remote
- Front panel interface
Power Consumption: 35 Watts with fully configured Discrete DAC
Chassis Dimensions:
Width: 17 in (432 mm)
Depth: 12 in (305 mm)
Chassis Height (Without Feet): 2 in (51 mm)
Stack height: 2.65 in (68 mm)
Weight: 18 lbs (8.2 kg)
Product Feet: M6X1 Thread
Shipping Dimensions:
Width: 22 in (558.8 mm)
Depth: 18 in (457.2 mm)
Height: 7 in (177.8 mm)
Weight: 27 lbs (12.3 kg)
- User Manual
- MSB Remote
- USB charging cable
- Dual-link power splitter
- 4X Rubber feet
- 4X Plastic foot inserts

Orders ship Sunday through Friday from our offices in Dubai, UAE.

In-stock products typically ship within 48 hours and should be expected to arrive in 3-4 business days. Orders outside of the UAE should be expected to arrive in 5-7 business days.

Pre-order and backorder products will state the approximate delivery timeline beside the Add To Cart button.

If you would like to place a custom order, chat with our specialists for a guided shopping experience. Once your order has been placed, a timeline will be provided depending on your order details.

- Free delivery within the UAE
- Shipping charges will be calculated upon checkout for orders outside of the UAE (Bahrain, Oman, Kuwait, Saudi Arabia & Qatar).
- Taxes and duties are calculated according to the applicable laws of the state or country an item is shipped to and are the customer's responsibility.

For additional information on shipping and our exchange & return policy visit our help center.

Installation charges are applicable and can be paid upon delivery for our clients based in Dubai.

- Installation Charges: AED 450 Per Hour
- Speaker Cables: AED 32 Per Meter
- Trunking: AED 10 Per Meter

For clients based outside of the UAE, please contact our specialists and we will share an estimate based on your requirements.

A

DAC firmware updates offer both corrections of problems we found and performance improvements. We recommend keeping your DAC Firmware up to date. You can check the current version of Firmware installed by following these steps: - Press the menu button on the front of the unit (The button marked with a square) - Turn the volume knob until “Code” or “DAC Software” is displayed (This screen will display the currently installed revision number for the DAC) - Turn the volume knob until “Director Software” is displayed (This screen will display the currently installed revision number for the Digital Director) - Compare both of these numbers with the revision numbers listed below. If they do not match, Please update your DAC and/or Digital Director.
