Fyne Audio
F502SP Floorstanding Speaker

AED 27,626.50 (Inc. Tax)

26310.952381
(Price Per Pair)
Free delivery on orders above AED 500 in UAE.

27626
27626
Clear

Need Assistance?

Improving on the F502, the UK built SP edition uses the premium 200mm (8″) IsoFlareTM driver and 200mm (8″) bass/mid driver from the F702, featuring rigid multi-fibre cones and FyneFluteTM roll surrounds. The IsoFlare’s 25mm magnesium compression tweeter has a unique HF wave guide pole piece delivering an incredibly even, full-range frequency response and outstanding Hi-Fi musical imaging.

Read More

Overview

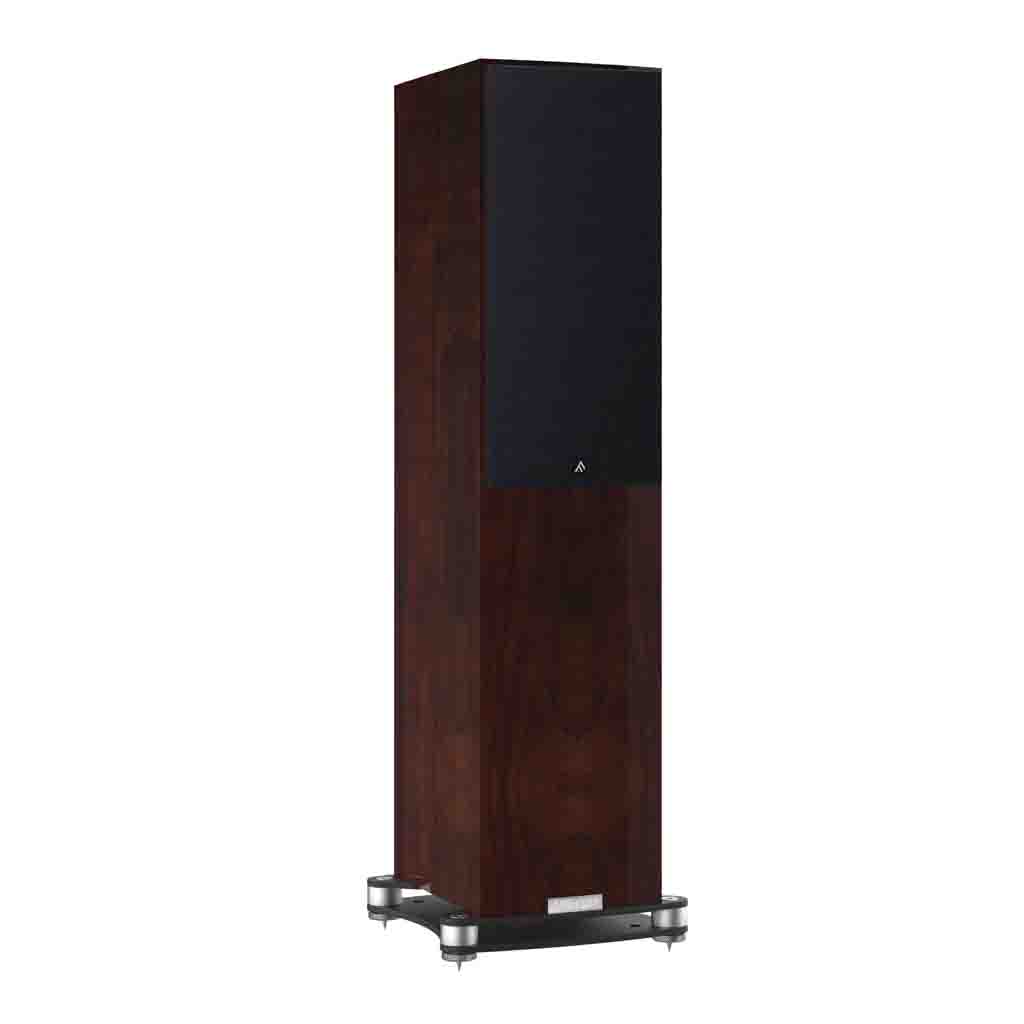

Improving on the F502, the UK built SP edition uses the premium 200mm (8″) IsoFlareTM driver and 200mm (8″) bass/mid driver from the F702, featuring rigid multi-fibre cones and FyneFluteTM roll surrounds. The IsoFlare’s 25mm magnesium compression tweeter has a unique HF wave guide pole piece delivering an incredibly even, full-range frequency response and outstanding Hi-Fi musical imaging. The F502SP also benefits from the F700’s advanced crossover components and aluminium sandwich type plinth with BassTrax tractrix profile bass diffuser, re-engineered to precisely tune the F502SP’s more compact cabinet. The SP is available in high-gloss black and high gloss white as standard, or a luxurious deep gloss lacquered walnut veneer with a diamond machine cut finish on the aluminium driver chassis.

At the heart of all SP Series loudspeakers is the award-winning F500 Series cabinets, enhanced with subtle improvements to further refine performance. SP models use a higher density fibreboard to increase rigidity, plus a balanced combination of bonded acoustic fiber and polyether foam damping to control resonances. The parallel-sided heavyweight construction is internally braced to further lower coloration. The concept extends to the driver/cabinet interface, the rear of each drive unit being coupled to the bracing spars with an energy-absorbing damping mastic.

BASSTRAXTM PORT SYSTEM
All three SP models incorporate Fyne’s flagship BassTrax Tractrix bass porting system as found in a larger format on the F700 and flagship F1 models. The system integrates a tuned downward-firing port and Tractrix profile cone that converts plain wave port energy into a spherical 360-degree wavefront that exits uniformly through the plinth. The system smooths LF output by evenly dispersing energy into the room, making the speaker much less critical of room positioning.

CROSSOVER
With many crossover components and circuit architecture trickled down from the premium F700 loudspeakers, F500 SP models bring a new level of refinement and detail to the already successful F500 design. Low-loss laminated core inductors, high-grade polypropylene capacitors, and Van Den Hul Matched Crystal silver-plated OFC wiring ensure transparent signal transmission, with final crossover and component tuning undertaken by Dr. Paul Mills. The F500 SP Series integrate Fyne’s high-quality bi-wire terminal panel with a fifth loudspeaker terminal for driver chassis grounding.

PLINTH
Optimizing floor coupling and better dissipating vibration in the F500 Series cabinets, floorstanding SP models use Fyne’s striking twin-layer metal plinth. Machined from thick aluminum plates, the two sections are precisely separated by aluminum spacers for optimum integration with the BassTrax porting system. The integrated floor spikes are adjusted from the top of the plinth to make leveling easy, while knurled lock nuts clamp the spikes firmly in position. Machined aluminum cups are provided to protect wooden floors.
System Type:2 ½ way, downwards firing port, with BassTraxTM Tractrix diffuser*, twin cavity loading system
Recommended amplifier power (Watt RMS):30- 200
Continuous power handling (Watt RMS):100
Sensitivity (2.83 Volt @ 1m):92dB
Nominal impedance:8 Ohm
Frequency response (-6dB typical in room):30Hz - 34kHz
Drive unit complement:
1 x 200mm IsoFlare point source driver, multi-fibre bass/ midrange cone, FyneFluteTM surround with 25mm magnesium dome compression tweeter, neodymium magnet system. 1 x 200mm multi-fibre bass cone, FyneFluteTM surround.
Crossover frequency:250Hz & 1.7kHz
Crossover type:Bi-wired passive low loss, 2nd order low pass, 1st order high pass
Dimensions - HxWxD:1111 x 338 x 380mm (43.7 x 13.3 x 15.0”)
Weight - Each: 30.4kg (67.0lb)

Orders ship Sunday through Friday from our offices in Dubai, UAE.

In-stock products typically ship within 48 hours and should be expected to arrive in 3-4 business days. Orders outside of the UAE should be expected to arrive in 5-7 business days.

Pre-order and backorder products will state the approximate delivery timeline beside the Add To Cart button.

If you would like to place a custom order, chat with our specialists for a guided shopping experience. Once your order has been placed, a timeline will be provided depending on your order details.

- Free delivery within the UAE
- Shipping charges will be calculated upon checkout for orders outside of the UAE (Bahrain, Oman, Kuwait, Saudi Arabia & Qatar).
- Taxes and duties are calculated according to the applicable laws of the state or country an item is shipped to and are the customer's responsibility.

For additional information on shipping and our exchange & return policy visit our help center.

Installation charges are applicable and can be paid upon delivery for our clients based in Dubai.

- Installation Charges: AED 450 Per Hour
- Speaker Cables: AED 32 Per Meter
- Trunking: AED 10 Per Meter

For clients based outside of the UAE, please contact our specialists and we will share an estimate based on your requirements.

A

Special Production (SP) models distil some of Fyne Audio’s best components and engineering into a unique loudspeaker, optimised by our Technical Director Dr Paul Mills and hand built in the UK by our Special Projects team. Improving on the F502, the SP edition uses the premium 200mm (8in) IsoFlare driver and 200mm (8in) bass/mid driver from the F702, featuring rigid multi-fibre cones and FyneFlute roll surrounds. The IsoFlare’s 25mm magnesium compression tweeter has a unique HF wave guide pole piece delivering an incredibly even, full-range frequency response and outstanding musical imaging. The F502SP also benefits from the F700’s advanced crossover components and aluminium sandwich type plinth with BassTrax tractrix profile bass diffuser, re-engineered to precisely tune the F502SP’s more compact cabinet. The result is a stunning, bespoke addition to the F500 series, available in high-gloss black and high gloss white as standard, or in a new, luxurious deep gloss lacquered walnut veneer with diamond machine cut finish on the aluminium chassis.
