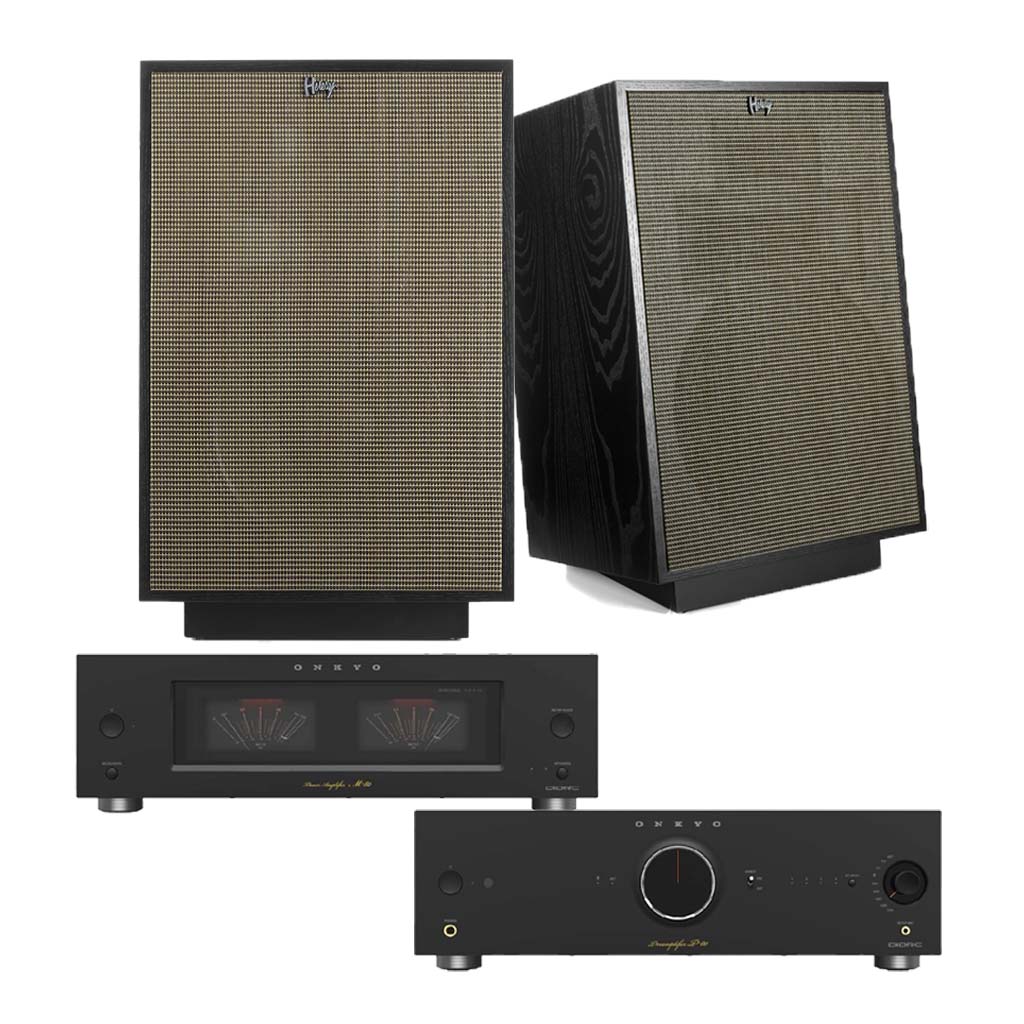

Heresy IV Floorstanding Speaker Description

The Klipsch Heresy IV Floorstanding Speaker is an iconic, three-way design from the revered Heritage Series, meticulously hand-built in Hope, Arkansas, USA. It masterfully blends classic mid-century modern aesthetics with advanced acoustic engineering. The Heresy IV features a 1-inch Titanium LTS tweeter and a 1.75-inch polyimide midrange compression driver, both mounted to Klipsch’s signature Tractrix® horns for dynamic, highly efficient, and precise sound reproduction.

A powerful 12-inch fiber-composite cone woofer anchors the low end, now significantly enhanced by a new, rear-firing Tractrix® port – a first for the Heresy line – delivering surprisingly deep and impactful bass extension. Its high 99dB sensitivity allows it to be driven effortlessly by a wide range of amplifiers. Encased in beautiful real wood veneer and including a slanted riser base for optimal floor placement, the Heresy IV offers a detailed, wide soundstage, making it perfect for discerning audiophiles seeking a blend of heritage, performance, and versatile placement.

M-80 Power Amplifier Description:

POWERING THE MUSIC THAT MOVES YOU
The M-80 uses a three-stage Inverted Darlington Amplifier. The three-stage Inverted Darlington Amplifier has a very low output impedance and drives speakers powerfully with a large current. Also, by keeping NFB (Negative Feedback) low, it is not affected by
noise from the speaker. It offers a powerful yet highly resolving and informative sound.The M-80’s output stage transistors are in parallel configuration, which provides excellent instantaneous current supply capability, further enhancing the rise of sound and the sense of power. The driver stage of the M-80 amplifier uses DIDRC (Dynamic Intermodulation Distortion Reduction Circuitry). Reducing beats generated signals(noise) in the ultra-high frequency band by DIDRC’s high slew rate design and helps produce the natural sound of an analog record.

CUTTING EDGE COMPONENTRY FOR CAPTIVATING PLAYBACK
The M-80 housing consists of two aluminum side panels and a steel top panel. The three-piece construction of the housings increases rigidity and improves seismic resistance. Various vibrations are suppressed and sound quality is improved.

CREATE YOUR PERFECT SYSTEM
The M-80 has an output power of 130w (8ohm, 20-20kHz, THD 0.07%, 2ch driven) / 200w (4ohm, 1kHz, THD 0.7%, 2ch driven) which allows it to powerfully drive large speakers and bring you dynamic acoustic information. For example, Klipsch Forte speakers paired with the P-80 and M-80 would maximize the dynamic and extended sound of the Forte.

P-80 Network Preamplifier Description:

QUALITY IS KING, AND SUBLIME SOUND IS THE DECREE
Thanks to patented DIDRC (Dynamic Intermodulation Distortion Reduction Circuitry), the P-80 Network Preamplifier delivers a vivid yet smooth and comfortable sound from any music source. DIDRC is a discrete signal control circuit developed to make digital sound sources such as CDs and music streaming services sound as natural as analog records. This technology has been further refined and is used in the P-80’s the analog filter of the DAC and phono amplifier circuits.

INPUT YOUR GEAR, CONNECT TO YOUR MUSIC
Hardwire your turntable, plug in your CD player, and stream your songs with ease thanks to the Onkyo P-80’s many connectivity options. With 3 pairs of RCA analog inputs, MM/MC phono, coax, optical, USB-A (Storage Playback) and headphone inputs, you have all the flexibility your music devices need to move you.

ONKYO INVESTS IN YOUR MODERN LIFESTYLE
Your carefully curated playlists play well with the Onkyo P-80 Network Preamplifier. Seamlessly hardwire or cast your content from any of the following built-in platforms:Spotify Connect, TIDAL Connect, Qobuz Connectt, Amazon Music, Qplay, TuneIn, Works with
AirPlay 2, Chromecast, Roon Ready

Heresy IV Floorstanding Speaker Features
-Includes New 10-Year Warranty
-All-new K-702 midrange compression driver, featuring a polyimide diaphragm, for exceptional detail
-For the first time, the Heresy IV features a rear port for the most efficient, fastest air transfer in their class, which reduces port noise for punchier low frequencies
- K-702 midrange is mated to the K-704 Tractrix® horn for a wide coverage pattern
- K-107-TI titanium diaphragm high-frequency driver with an all-new wide
dispersion phase plug for providing exceptionally even high-frequency dispersion
- All-new high fidelity network for truer to life sound, best-in-class efficiency, and power handling
- Klipsch Tractrix ports have custom designed inner flares that help reduce air turbulence entering the port. Less turbulent air helps reduce port noise for cleaner, more powerful bass.

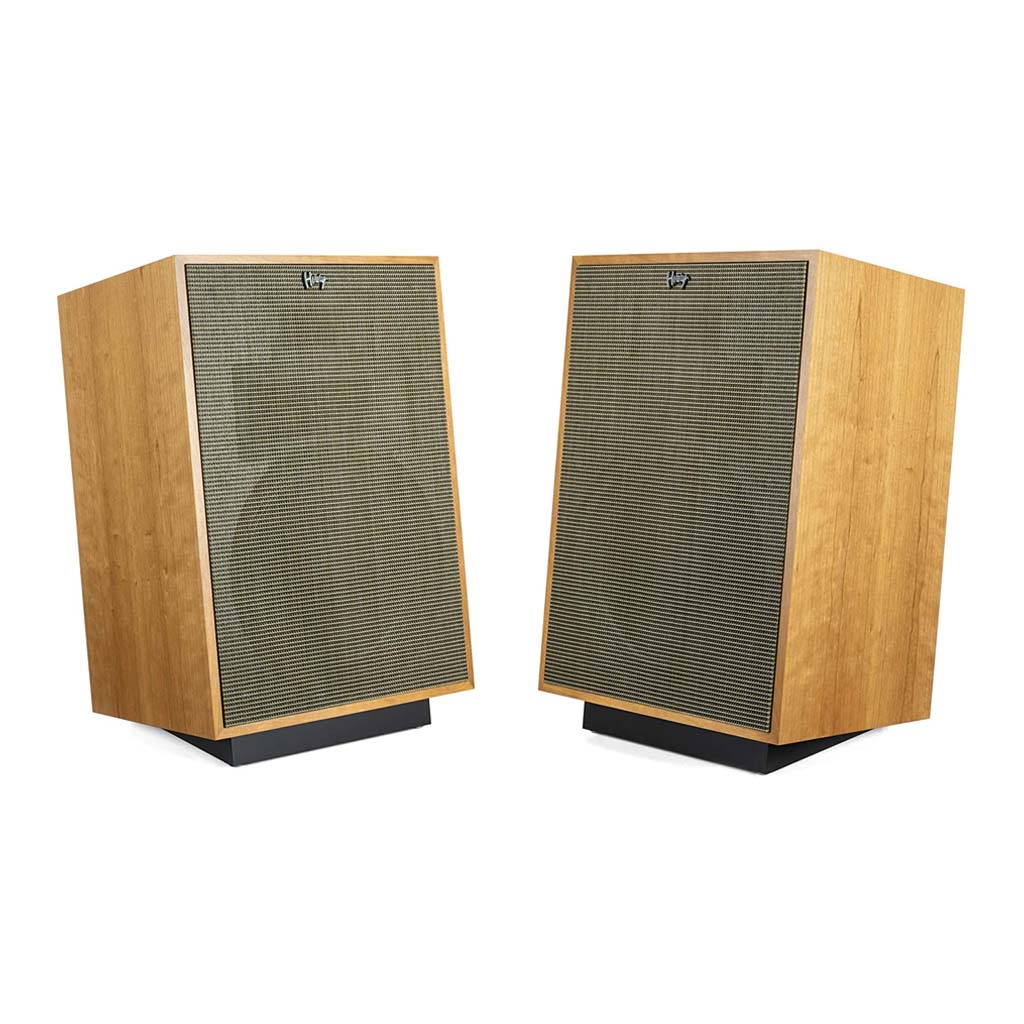

- Available in a high-quality Satin Black Ash, Natural Cherry, Distressed Oak, or - American Walnut wood veneer finish
- Designed & assembled in the USA

M-80 Power Amplifier Features:

SUPERIOR SOUND STARTS WITH ONKYO
Sophisticated circuitry, elevated design choices, and next-generation tech are weaved into every millimeter of Onkyo’s new Icon Series. Our dedicated engineers believe everyone deserves an exceptional listening experience with all the nuance, detail, and emotion that the artists or players intended. The content played through any of our Icon Series products isn’t just heard – it’s felt

FROM ONKYO ACADEMY: THE BENEFITS OF A POWER AMPLIFIER
A power amplifier receives the signal from your pre-amp and literally powers it into your speakers. Think of your pre-amp as a brain, and your power amplifier as the muscle. Separating your amplifiers into pre- and power gives you ultimate flexibility in audio playback. Since they are not affected by each other’s circuits, they can provide high-resolution sound quality through even cleaner signal transmission. Audiophiles are well-known to prefer specific power amps and the way they impact sound quality and
coloration. The M-80 is a power amplifier that reproduces the full range of artists or players’ intentions in their music and drives you into a world of emotion.

P-80 Network Preamplifier Features:
FROM ONKYO ACADEMY: THE BENEFITS OF A PREAMPLIFIER
A preamplifier receives the signal input from your device (music source), and applies tone controls to that signal. You have more control over your audio playback in terms of bass, treble, volume, and more. When Fidelity IQ (Auto Loudness function) is turned on, the system automatically provides optimal audio playback according to any volume in conjunction with the master volume (This function operates independently of Tone Control and can be used in conjunction with Tone Control / Parameters are generated for the viewing environment using the setup microphone during initial setup). This Fidelity IQ goes beyond correcting loudness characteristics. Onkyo’s sound quality engineers adjust the frequency response to provide the most emotional sound possible, regardless of the music genre. Select your source, tweak settings to your liking – which may vary depending on the speakers you listen through, the type of audio being played, the genre of music, etc. – and customize the experience accordingly.

DIRAC LIVE FOR THE DISCERNING LISTENER
Onkyo builds world-class products for early adaptors and tech enthusiasts. It’s what sets us apart from the rest, and the P-80 Network Preamplifier is no exception to our commitment to impress. That’s why it comes with built-in Dirac Live Room Correction. With frequency response correction (500Hz-20kHz / full version is option), multiple playback modes, and more, this highly sought feature will elevate your listening experience by taking your unique system and room setup into account.

Heresy IV Floorstanding Speaker Specification
- Power Handling (Cont/Peak): 100W/400W
- Maximum SPL: 116dB Continuous
- Nominal Impedance: 8 ohms Compatible
- Crossover Frequency HF: HF: 4500Hz, MF: 850Hz
- High Frequency Driver: K-107-TI 1” (2.54cm) Titanium diaphragm compression driver
- Midrange: K-702 1.75” (4.45cm) polyimide diaphragm compression driver
- Low Frequency Driver: K-28-E 12” (30.48cm) Fiber-composite cone woofer
- Enclosure Material: MDF
- Inputs: Dual binding posts / bi-wire / bi-amp
- Height: 24.81” (63.01cm)
- Width: 15.5” (39.37cm)
- Depth: 13.25” (33.66cm)
- Weight: 45lbs (20.41kg)

M-80 Power Amplifier Specification:
OUTPUT POWER - 130w ( 8ohm, 20-20kHz, THD 0.07%, 2ch driven)
200w ( 4ohm, 1kHz, THD 0.7%, 2ch driven )
AMPLIFIER CHANNEL - 2 Ch
AMPLIFIER TYPE - Class AB
FREQUENCY RESPONSE - 5Hz~100kHz(+1/-3dB)
SPEAKER IMPEDANCE - 4-16Ω
ANALOG AUDIO INPUT - RCA(Unbalanced) x 1pair ; XLR(Balanced) x 1pair; 12V TRIGER Input(1/8”(3.5mm) Jack)
PRODUCT DIMENSIONS -
(W X H X D) 17.1” (435mm) x 5.3” (135mm) x 13.6” (345mm)
PRODUCT WEIGHT - 13.5 kg
PACKAGE DIMENSIONS -
(W X H X D) 21.3” (542mm) x 9.3” (236mm) x 17.4” (441mm)
POWER CONSUMPTION - 445w, 51w(idle), Less than 0.3w(Standby)

P-80 Network Preamplifier Specification:
PRE AMPLIFIER CHANNEL - 2.2 Ch
FREQUENCY RESPONSE - 5Hz~100kHz(+1/-3dB)
TONE CONTROL - (BASS / TREBLE) 100Hz ±10dB / 10kHz ±10dB
ANALOG AUDIO INPUT RCA - (Unbalanced) 3 Pair
DIGITAL AUDIO INPUT - HDMI ARC, COAX, Optical, USB-A (Storage playback)
PHONO INPUT - 1 Pair (MM/MC)
AUDIO PRE OUTPUT RCA - (Unbalanced) 1 Pair; XLR (Balanced) 1 Pair
SUBWOOFER OUTPUT RCA(Preout) - x 2
HEADPHONE OUTPUT - 1/4”(6.3mm) Jack
SETUP MIC INPUT - 1/8”(3.5mm) Jack
12V TRIGER - Output 1/8”(3.5mm) Jack
NETWORK CONNECTIVITY - Wi-Fi, LAN BLUETOOTH SBC, aptX, aptX HD
NETWORK SERVICE Spotify Connect, TIDAL Connect, Amazon Music,Qobuz Connect, QQ Music, Tune In, Roon Ready
ROOM CALIBRATION - Dirac Live® Room Correction
PRODUCT DIMENSIONS - (W X H X D) 17.1” (435mm) x 5.3” (135mm) x 14” (355mm)
PRODUCT WEIGHT - 12.0 kg
PACKAGE DIMENSIONS - (W X H X D) 21.3” (542mm) x 9.3” (236mm) x 17.4” (441mm)
POWER CONSUMPTION - 35w, 30w(idle), Less than 0.3w (Standby)
