dCS
Lina Network DAC

AED 65,625 (Inc. Tax)

Free delivery on orders above AED 500 in UAE.

1 in stock

65625

Now accepting payments via cryptocurrency

The heart of your dCS Lina system, our powerful network streaming DAC delivers extraordinary sound from any digital source

- Compatible with all digital audio formats
- Supports hi-res streaming from Roon, TIDAL, Qobuz, Spotify, Deezer, AirPlay & more
- Features our renowned dCS Ring DAC TM and Digital Processing Platform

Read More

Overview

The Lina Network Streaming DAC is both a continuation and a new beginning. Its design combines renowned dCS technologies and all of the benefits listeners have come to expect from a dCS DAC with a wealth of new innovations, including an all-new mechanical design, plus new technologies developed specifically for headphone listening. It is a complete reimagining of form and function, created with the same relentless focus and ambition as our world-renowned Bartók, Rossini and Vivaldi DACs.

The DAC utilises proprietary dCS playback technologies, including the famous dCS Ring DACâ„¢ and our endlessly flexible Digital Processing Platform, to deliver a deeply natural, highly detailed, and profoundly musical sound. With its wide dynamic range, crisp, clear playback, expansive soundstage, and tonal neutrality, it delivers a highly revealing and compelling performance that uncovers the true depth and essence of a recording.

Its powerful flex-rigid circuit board enables us to deliver a huge range of features in a compact chassis (our smallest yet). The result is a supremely capable product that caters to a wide range of settings, including rooms where space is at a premium.

Add unique headphone optimisation technology, a high-performance streaming platform, and digital volume control enabling use in systems without a preamp, and you have a hugely versatile source that delivers a spectacular performance in a vast range of setups. Designed to inspire, inform and entertain, it will give you a whole new perspective on the artists and recordings you love.

Effortless listening
While the Lina Network DAC offers a vast range of features, it is designed with simplicity, convenience and ease of use in mind. Its streamlined user interface allows you to easily navigate system settings, select music and manage your playback experience, while the dCS Mosaic app offers an intuitive and painless way to browse and access music from multiple sources and audio libraries. With a choice of inputs and outputs, and user selectable filters, it allows you to seamlessly enjoy audio from any source, in any format, without compromise.

Unlimited potential
The Lina Network DAC’s performance is driven by a completely flexible control board – the dCS Digital Processing Platform. This powerful, robust and highly intelligent system operates on code written by dCS engineers, and it can be endlessly updated to deliver any number of new features and enhancements. This means we are able to continue upgrading Lina’s performance over time, and ensure that each system delivers a state-of-the-art experience long after it’s purchased.

Scrupulous design
Crafted from billet aluminium (a material selected for its excellent acoustic properties), the Lina Network DAC has been meticulously designed to deliver the finest possible sound, with the lowest possible levels of distortion and noise. Each aspect of its design – from its billet aluminium casework, to its internal fixings and components, and proprietary hardware and software – is carefully engineered and exhaustively tested to ensure it provides the best possible experience, and the highest levels of quality and reliability. This holistic approach and obsessive attention to detail is one of the reasons that dCS DACs sound so sublime.

• dCS Ring DAC™ system and Digital Processing Platform ensure audio is reproduced with absolute integrity, for a highly detailed, musical and deeply natural sound
• dCS Mosaic platform supports hi-res streaming via Roon, Spotify, Deezer, Qobuz, TIDAL, Internet Radio and Apple AirPlay
• Patented dCS Expanse technology offers enhanced headphone optimisation, for a more natural and immersive experience when listening to a wide range of stereo recordings

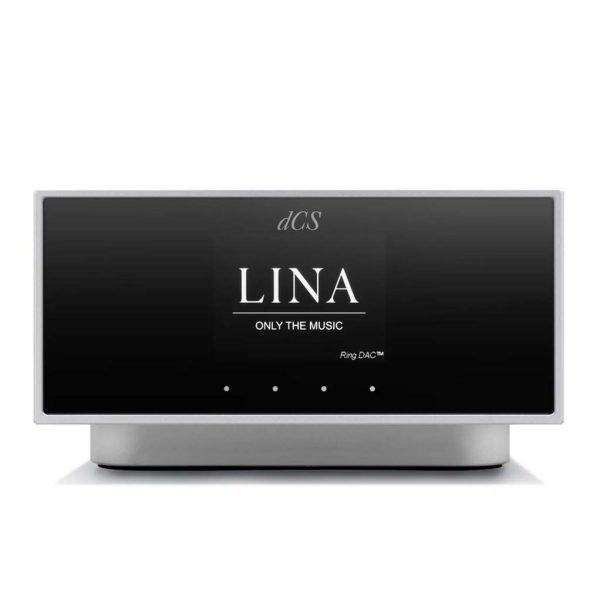

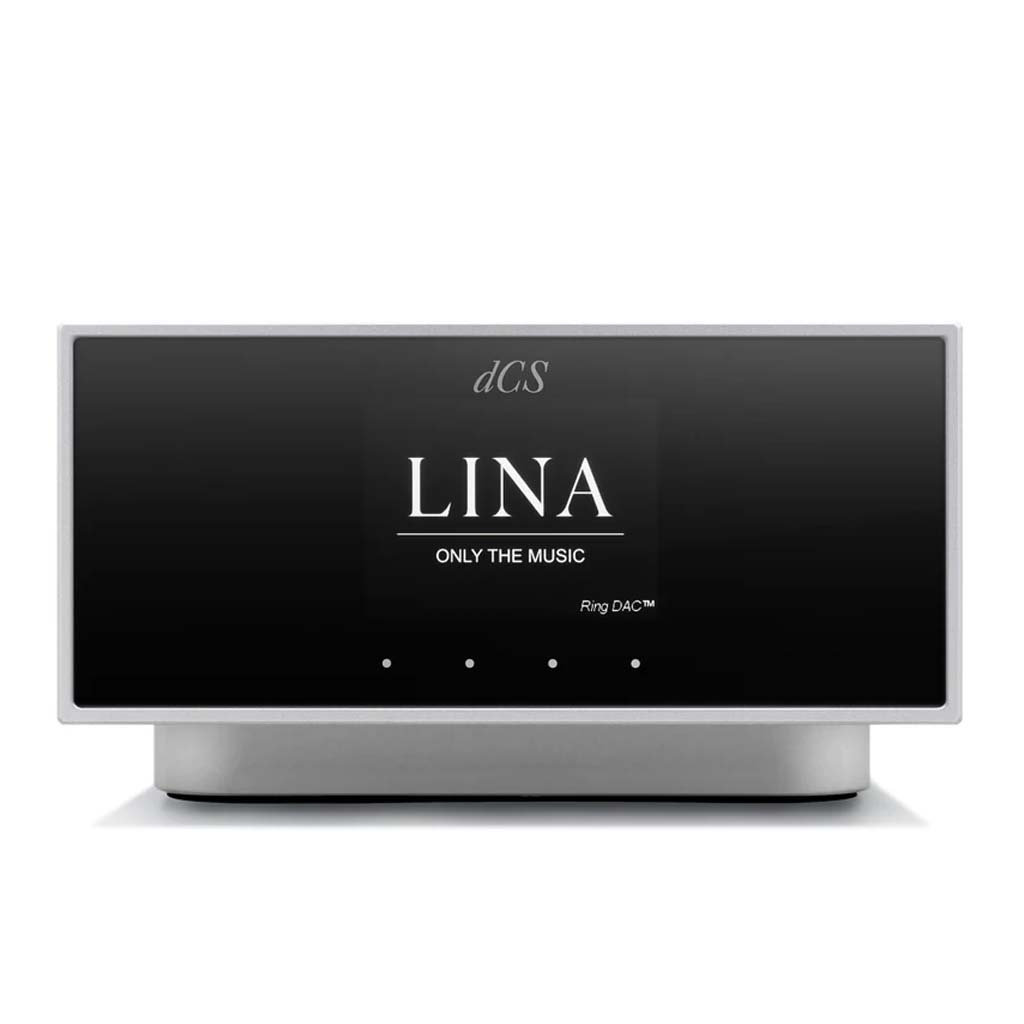

• Touch screen UI with customisable menu allows listeners to easily control playback and adjust system settings
• Flexible firmware provides unlimited scope for future upgrades, with new features and enhancements delivered via simple software updates
• All-new electronic and mechanical design delivers a vast range of features in a compact and elegant format, while digital volume control function removes need for separate pre-amp
Product Dimensions / Weight
121.5mm (H) x 220mm (W) x 339mm (D) 7.4kg

Upsampling
• 1 stereo balanced pair on 2x 3-pin male XLR connectors (pin 2 = hot, pin 3 = cold). These outputs are electronically balanced and floating, the signal balance ratio at 1 kHz is better than 40dB. Output impedance is 3Ω , maximum load is 600Ω (a 10kΩ - 100kΩ load is recommended)

• 1 stereo unbalanced pair on 2x RCA Phono connectors. Output impedance is 52Ω, maximum load is 600Ω (a 10kΩ - 100kΩ load is recommended)
• Output levels are 0.2V, 0.6V, 2V, or 6V rms for a full-scale input, set in the menu.

L-R Crosstalk
Better than –115dB0, 20Hz-20kHz

Streaming Compatibility
Supports the following platforms and services:
• UPnP
• Qobuz
• Deezer
• Tidal
• Internet Radio
• Spotify
• Apple AirPlay 2 (support at 44.1 or 48kS/s)
• RoonReady

Upsampling
Multi-stage DXD oversampling with switchable DSD Upsampling (1-bit 2.822 or 3.07MS/s) and DSDx2 Upsampling (1-bit 5.644 or 6.14MS/s).

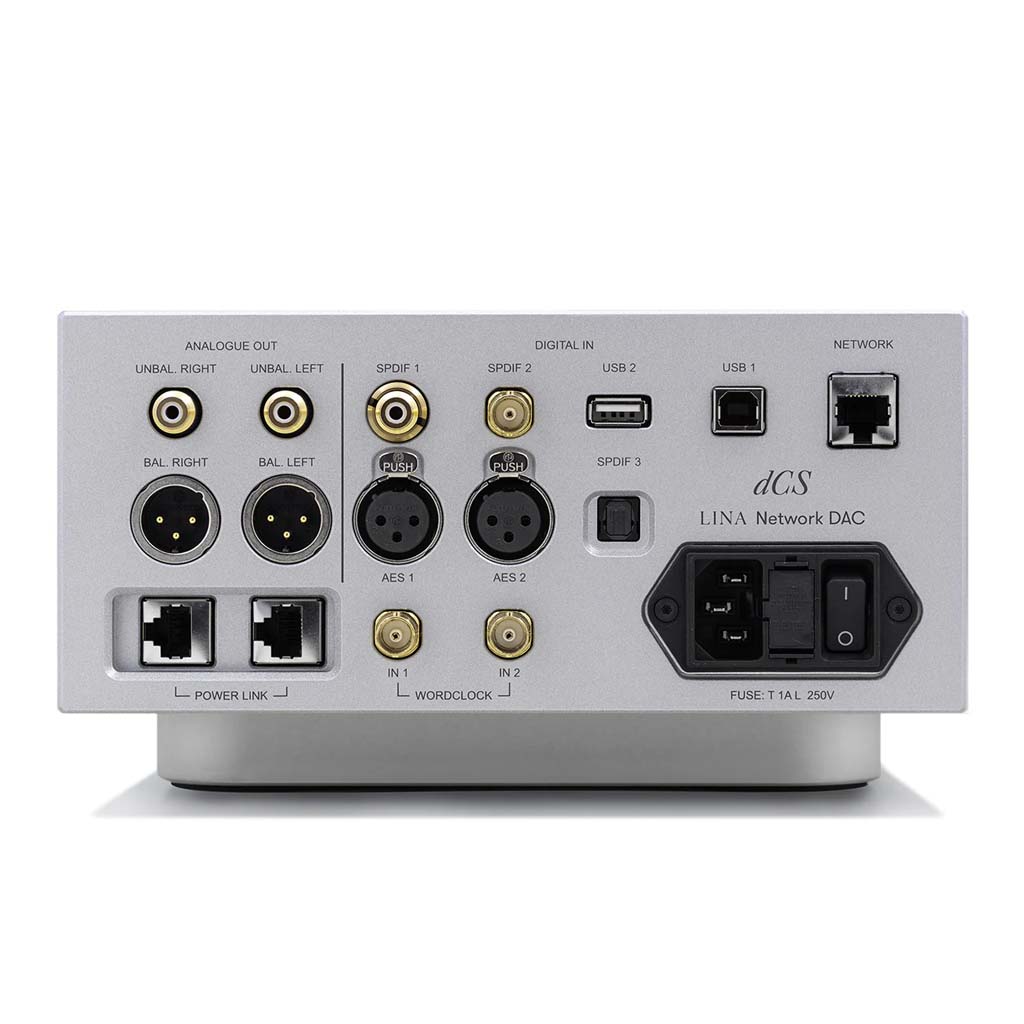

Digital Inputs
• 2 x AES/EBU on 3 pin XLR 44.1-384kS/s
• 1 x S/PDIF BNC Coax 44.1-192kS/s
• 1 x S/PDIF on RCA 44.1-192kS/s
• 1 x Toslink 44.1-96kS/s
• 1 x USB Type B 44.1-384kS/s, PCM and DSD, DSDx2 in Async Mode
• 1 x USB Type A connector for mass storage devices (navigated using Mosaic)

Frequency Response (set to filter 1)
• Fs = 44.1 or 48kS/s +/-0.1dB, 10Hz-20kHz
• Fs = 88.2 or 96kS/s +/-0.1dB, 10Hz-20kHz -3dB @ >38kHz
• Fs = 176.4 or 192kS/s +/-0.1dB, 10Hz-20kHz -3dB @ >67kHz
• Fs = 352.8 or 384kS/s +/-0.1dB, 10Hz-20kHz -3dB @ >100kHz
• DSD64 +/-0.1dB, 10Hz-20kHz -3dB @ >90kHz
• DSD128 +/-0.1dB, 10Hz-20kHz -3dB @ >100kHz

Residual Noise (6v output setting)
• 16-bit data: Better than –96dB0, 20Hz-20kHz unweighted
• 24-bit data: Better than –113dB0, 20Hz-20kHz unweighted

Sample frequencies and formats
Supports the following audio formats
and sample rates:

• 44.1-384kS/s up to 24 bits
• DSD/64, DSD/128
• Native DSD + DoP (input dependent)
• FLAC, WAV, AIFF, MQA

Power Requirements:
90-127V / 220-240V, 50/60Hz

Power consumption: 30W
