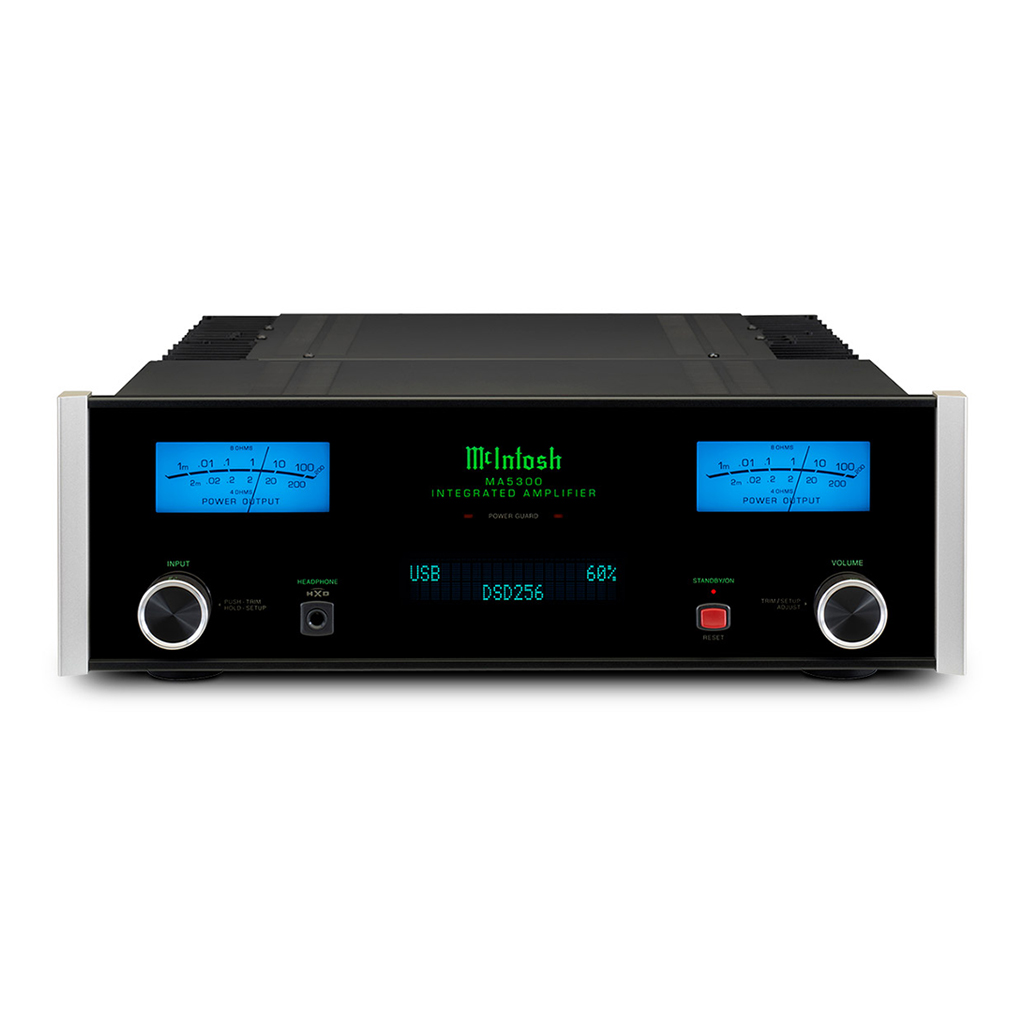

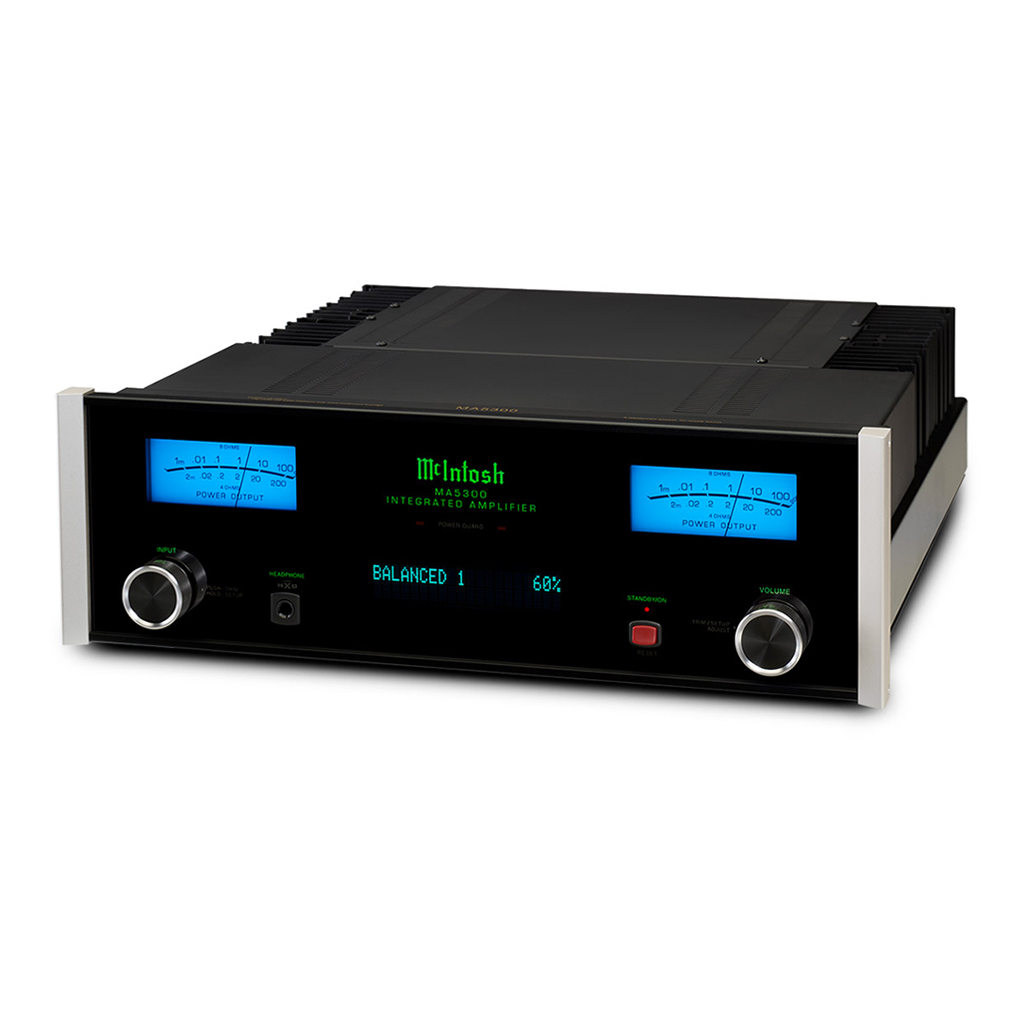

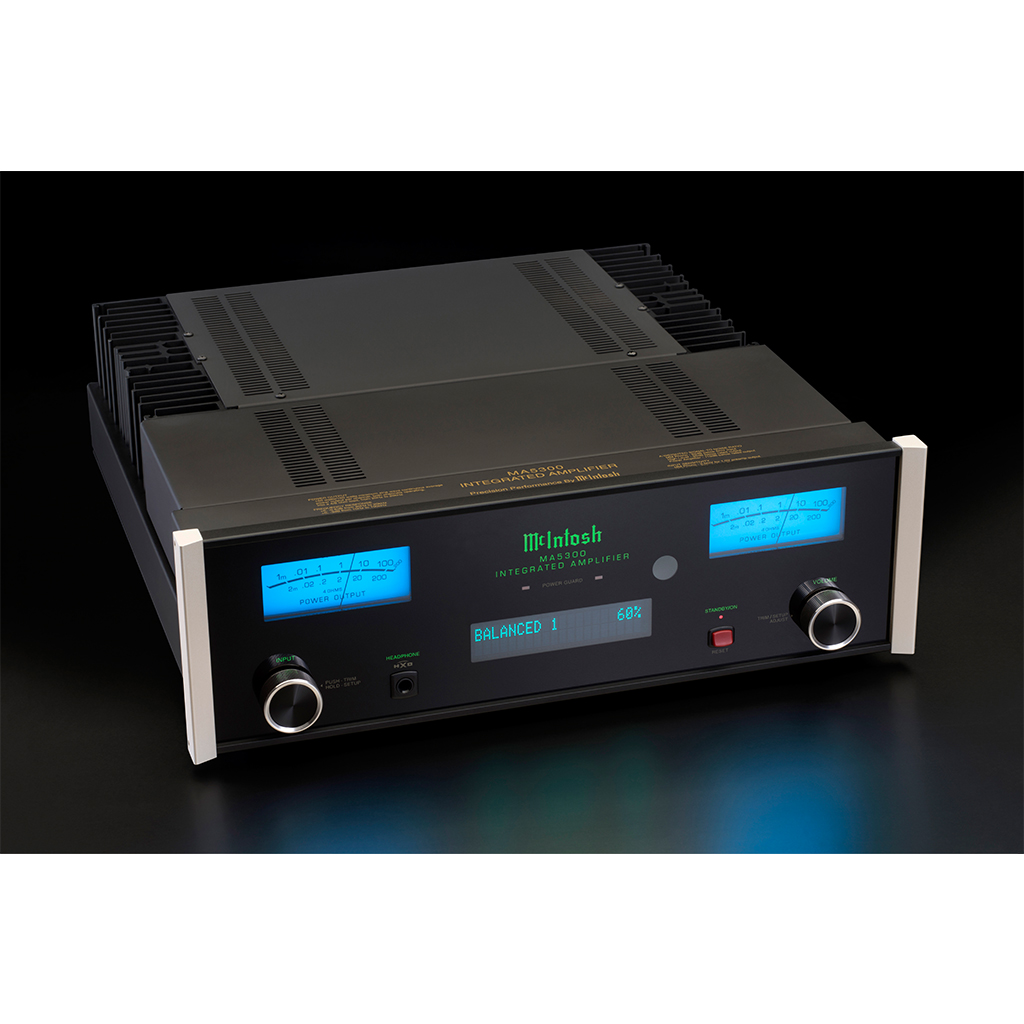

The McIntosh MA5300 Integrated Amplifier offers a complete audiophile solution in a compact design. It delivers 100 Watts per channel into 8 Ohms (160 Watts into 4 Ohms), featuring Power Guard® and Monogrammed Heatsinks™ for robust, distortion-free performance.

Equipped with the upgradable DA1 Digital Audio Module, it provides extensive digital connectivity, supporting PCM up to 32-bit/384kHz and DSD256. Analog inputs include a Moving Magnet phono stage, four unbalanced, and one balanced input. It boasts a High Drive Headphone Amplifier with HXD®, bass/treble controls, and Home Theater Pass Through. The MA5300 combines iconic blue Watt meters with classic McIntosh aesthetics, offering versatile connectivity and exceptional sound quality for both analog and digital sources.

- Delivers 100 Watts per channel into 8 Ohm speakers or 160 Watts per channel into 4 Ohm speakers. New dual scale blue Watt meters give an accurate readout of power output for both impedances.
- Includes 6 analog and 6 digital inputs, enough to connect virtually all source components.
- All digital inputs are housed in our DA1 Digital Audio Module which can be replaced by future modules as new digital audio technologies are developed.
- Supports high-resolution digital music up to DSD256 and DXD 384kHz via an 8-channel, 32-bit/192kHz DAC used in Quad Balanced mode.
- Features our new McIntosh Monogrammed Heatsinks™, powerful new control microprocessors and some of the latest audio-grade circuit components.
- Full of numerous McIntosh technologies including Power Guard®, Sentry Monitor™, Home Theater PassThru, bass and treble tone controls, High Drive headphone amplifier with Headphone Crossfeed Director (HXD®)and Power Control.

ELECTRONIC SPECIFICATIONS
Power Output per Channel:
- 100 Watts into 8 Ohms
- 160 Watts into 4 Ohms
Number of Channels:2
Speaker Impedance:4 or 8 Ohms
Rated Power Band:20Hz to 20kHz
Total Harmonic Distortion:0.005%
Dynamic Headroom:1.8dB
Frequency Response +0,-0.5dB:20Hz to 20kHz
Frequency Response, +0, -3dB:10Hz to 100kHz
Sensitivity Phono (Moving Coil):N/A
Sensitivity Phono (Moving Magnet):2.5mV
Sensitivity High Level (Balanced / Unbalanced):0.5V/0.25V
Sensitivity (Power Amp input):1V
Signal To Noise Ratio (Moving Coil):N/A
Signal To Noise Ratio (Moving Magnet):82dB
Signal To Noise Ratio (High Level):95dB
Signal To Noise Ratio (Power Amp input):110dB
Input Impedance (Balanced / Unbalanced):20K/20K
Damping Factor:
- 8 Ohms: >200
- 4 Ohms: >100
Maximum Output (Balanced / Unbalanced):8V Unbalanced

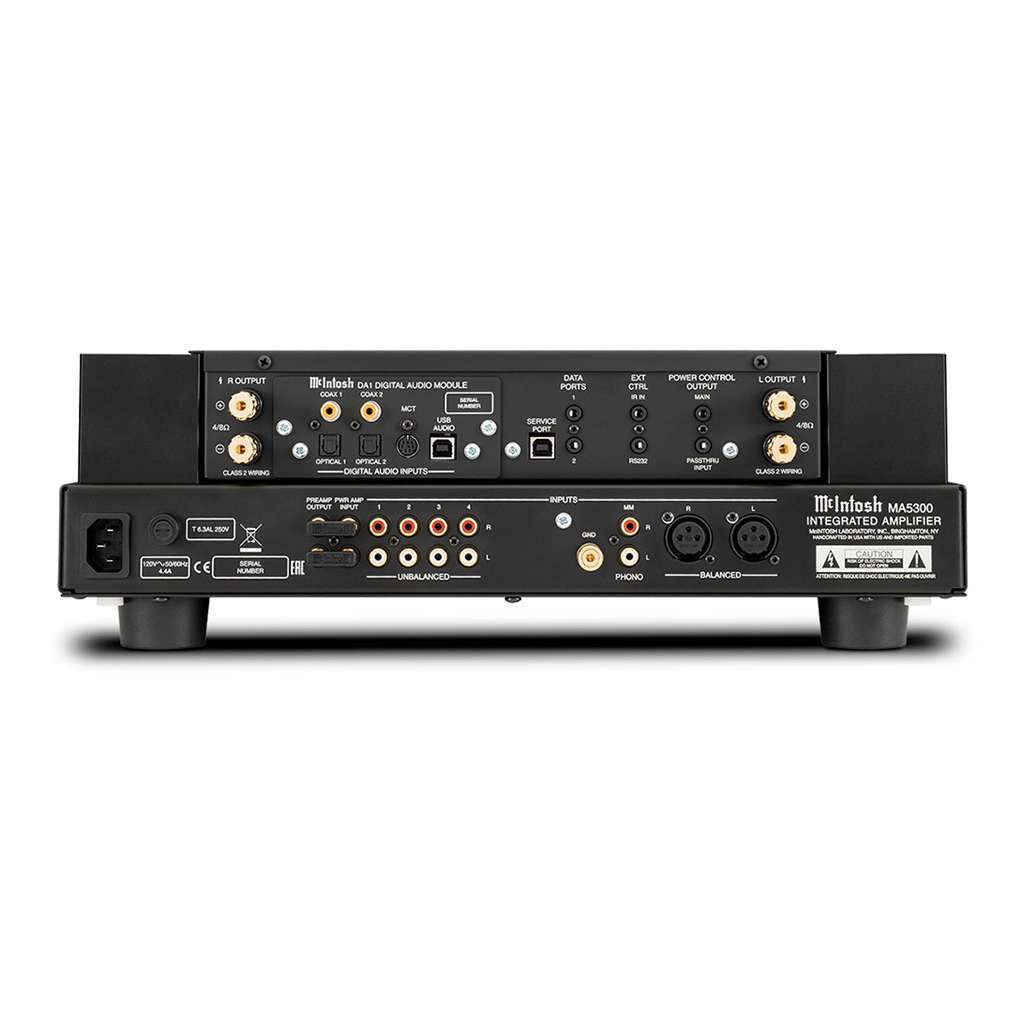

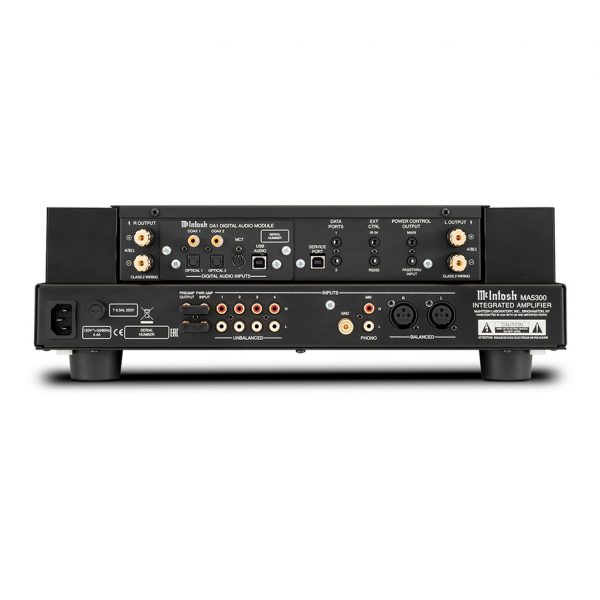

CONNECTIVITY
Balanced Input:1
Unbalanced Input:4
Phono Input Moving Coil:0
Phono Input Moving Magnet1 (fixed loading)
Upgradeable Digital Audio Module:Yes: DA1
Digital Coaxial Input:2
Digital Optical Input:2
Digital MCT (DIN) Input:1
Digital USB Input:1
HDMI (ARC) Input:0
Balanced Variable Output:0
Unbalanced Fixed Output:0
Unbalanced Variable Output:1
Headphone Output:1/4" High Drive with Headphone Crossfeed Director (HXD®)
Subwoofer Output:0
AM/FM Tuner option:No
Home Theater PassThru:Yes
Unbalanced Analog Connector Type:Standard
Speaker Binding Post Type:Standard
Service Port:1

DIGITAL AUDIO SPECIFICATIONS
Digital-to-Analog Converter (DAC) Type:
- 8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced
Digital Coaxial Input Sample Rate:24-bit/44.1kHz to 192kHz
Digital Optical Input Sample Rate:24-bit/44.1kHz to 192kHz
Digital MCT (DIN) Input Sample Rate:
- 16-bit/44.1kHz (CD)
- DSD64 (SACD)
Digital USB Input Sample Rate:
- 32-bit/44.1kHz to 384kHz (PCM)
- DSD64, DSD128, DSD256, DXD352.8kHz, DXD384kHz

CONTROL
Tone Controls:Bass and Treble
Tone Bypass and Input Assign:Yes
RS232 Control Input:Yes
Power Control Output:1 Main
Rear Panel Data Port:2
Rear Panel IR Sensor Input:Yes
Input Level Match:Yes

GENERAL SPECIFICATIONS
Vacuum Tube or Solid State:Solid State
Output Type:Direct Coupled
Output Meters:Yes
Dual Layer Chassis:Yes
Chassis Finish:Black painted steel
McIntosh Monogrammed Heatsinks™:Yes
Power Requirement:120V 50/60Hz, 2.3A
Standby Power Requirement: <0.25 Watts

WEIGHTS & DIMENSIONS
Unit Dimensions (W x H x D):
- 17-1/2" (44.45cm) x 6" (15.2cm) x 18-3/4" (47.6cm)
Unit Weight:38 lbs (17.2 kg)
Shipping Weight:55.5 lbs (25.2 kg)
