MC2301 1-Channel Vacuum Tube Amplifier
- 300 Watt Quad Balanced Monoblock
- Vacuum tube powered
Overview
From the demands of massed chorale to full-on rock and roll, the MC2301 delivers the most extraordinarily lifelike and dynamic performance ever heard from a McIntosh tube amplifier. With an output of 300 Watts, it provides enough high power to drive even the most demanding loudspeaker. And thanks to our patented Unity Coupled Circuit output transformer, this full 300 Watts is available to 2, 4 or 8 Ohm speakers.
The MC2301 is the first McIntosh vacuum tube amplifier to use our Quad Balanced design. This design cancels virtually all noise and distortion in the audio signal. As a result, even when amplified to high levels the signal is effectively free of any distortion. Our fuse-less short-circuit protection circuit Sentry Monitorâ„¢ disengages the output stage before current exceeds safe operating levels and then resets automatically. Inputs for balanced and unbalanced cables are available to provide flexibility in connecting the rest of your audio system.

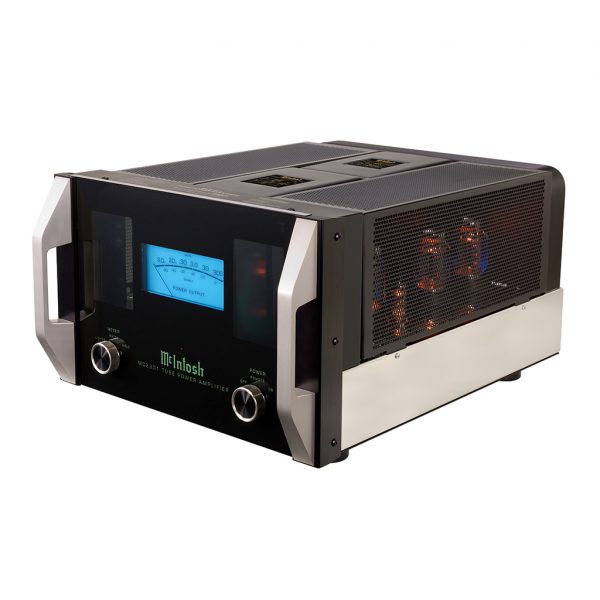

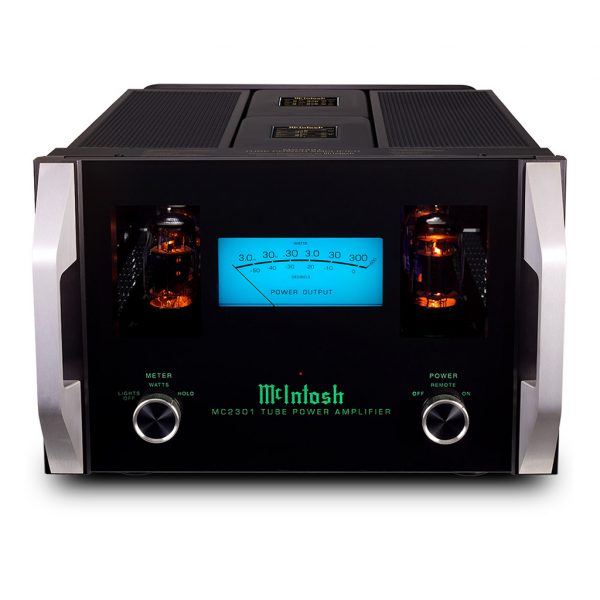

The attractive blue meter is flanked by two rows of output vacuum tubes that bring even more visual appeal to the front panel to go along with the knobs and brushed aluminum handles that all effortlessly blend with the polished stainless steel chassis. The MC2301 is well suited for stereo music systems.
A collection of technologies that enhance performance and reliability while
protecting the amplifier and loudspeakers.
SENTRY MONITOR®TUBE PROTECTION
Fuse-less short-circuit protection circuit disengages the output stage before current exceeds safe operating level – resets automatically.
UNITY COUPLED OUTPUT CIRCUIT®
Output power is taken from both the plate and cathode of the output tubes. Conventional designs only take output from the latter. This allows ½ the turns
ratio, or ¼ the impedance transformation of conventional designs. The result is much lower distortion, wider bandwidth and increased loudspeaker damping factor.
WATTMETER
Swift, accurate response reveals program peaks so staying within the power limits
of your loudspeakers is easy.
Power Output per Channel:300W @ 2, 4 or 8 Ohms
Number of Channels:1
Total Harmonic Distortion:
- 0.5% maximum harmonic distortion at any power level from 250 milliwatts to rated power, 20Hz to 20,000Hz(? 0.25% harmonic distortion at 1kHz)
S/N below rated output:117dB
Dynamic Headroom:1.2dB
Damping Factor:>15 Wideband
Rated Power Band:20Hz to 20kHz
Frequency Response:
+0, -0.5dB from 20Hz to 20,000Hz
+0, -3.0dB from 10Hz to 100,000Hz
CONTROL
Remote Power Control:Yes
Multi-Channel DB25 Cable:N/A
GENERAL SPECIFICATIONS
Circuit Configuration: Quad Balanced, Unity Coupled
Circuit Design:Vacuum Tube
Mono Bridge:No
Mono Parallel:No
Output Type:Unity Coupled Output Transformer
Meters:Yes
Meter Light Switch:Yes
Balanced Input:Yes
Front Panel:1/2" Glass with handles
Illumination:LED Fiber Optic
Chassis Style:Open Stainless Steel
CONNECTIVITY
Speaker Binding Post Type:Yes, 200 amp, 3-way
WEIGHTS & DIMENSIONS
Unit Dimensions (W x H x D):
- 17-3/4" (45.09cm) x 12-5/16" (31.27cm) (including feet) x 23" (58.42cm) (including front panel and cables)
Unit Weight:116 lbs (52.6 kg)
Shipping Weight:141 lbs (63.9 kg)
