Digital Audio Interface
The MVI Digital audio interface connects a professional XLR microphone or 1/4" instrument output to a computer or mobile device. Features include 5 DSP preset modes for EQ, compression, limiter settings, gain control, mute, and volume, and phantom power.

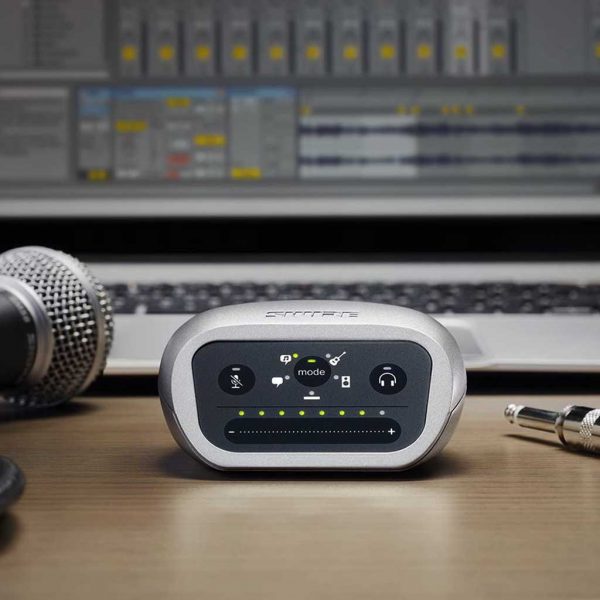

The compact MOTIV MVi connects your microphone or instrument to your computer or mobile device to create a portable recording studio, wherever and whenever you need it. For maximum flexibility, the unit connects to any PC, Mac or iOS device with Lightning Connector, as well as most Android devices (contact our expert team for full compatibility details), giving you absolute control while on the move. This robust all-metal unit features a combined XLR and 6.3 mm input to enable use with both microphones and instruments. When connected to a laptop/PC it also provides the phantom power required to operate condenser microphones.
The unit has five preset DSP modes (speech, singing, flat, acoustic instrument, and loud) which configure audio settings so you can start recording immediately. The built-in touch panel also provides a control for gain, mute, and headphone volume. If you want to fine-tune your recording for a specific purpose, you can adapt the limiter, compressor, and five-band EQ manually to find a unique sound.
Features
- 5 DSP preset modes (speech, singing, flat, acoustic instrument, loud) for EQ, compression, and limiter settings

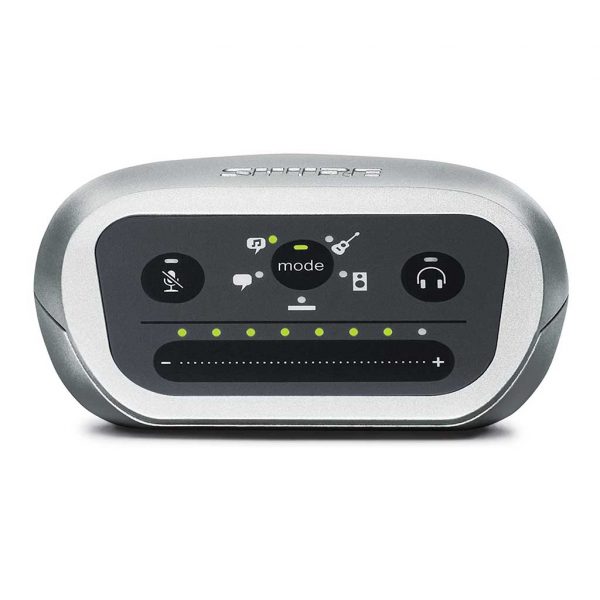

- Touch panel provides a control for gain, mute, and headphone volume
- Manual audio settings can be adjusted via iOS devices with Lightning Connector, using the ShurePlus MOTIV app
- JFET Class A buffered instrument preamplifier input for exceptional tone and clarity

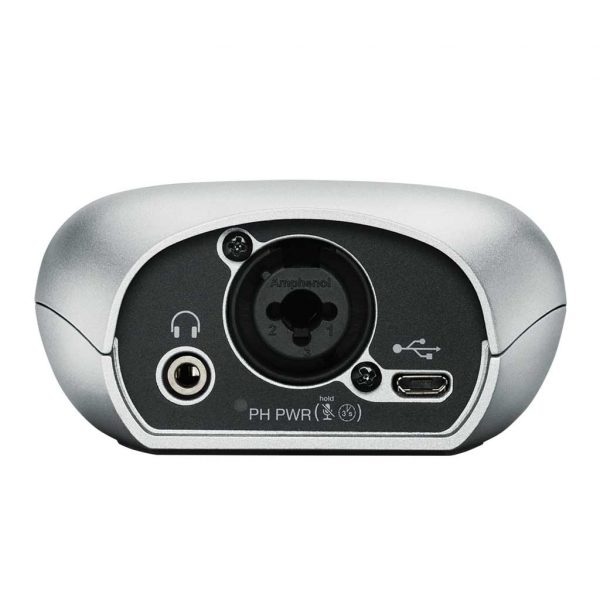

- Combined XLR microphone and 6.3 mm instrument input
- Supplies phantom power for use with condenser microphones
Specifications
MFi Certified: Yes DSP Modes(Presets): Voice/Instrument/Flat Type:Electret condenser (16 mm) Polar Pattern: Unidirectional (cardioid) A/D Converter: Up to 24-bit/48 kHz Frequency Response: 20 Hz to 20,000 Hz Adjustable Gain Range: 0 to +36 dB Sensitivity at Minimum Gain, Flat Mode:
- 40 dBFS/Pa at 1 kHz
- 1 Pa=94 SPL Maximum SPL at Minimum Gain, Flat Mode: 130 dB SPL Headphone Output: 3.5 mm (1/8") Power Requirements: Powered through USB or Lightning connector Microphone Mute: Yes Mounting Stand: Included Stand adapter: ¼", 20-thread (standard tripod mount) Housing: PC/ABS with Die-Cast Zinc Frame Net Weight Without Mounting Stand: 90 g (3.2 oz) With Mounting Stand: 160 g (5.6 oz) Dimensions Without Mounting Stand: 66 × 67 × 65 mm H × W × D With Mounting Stand: 89 × 142 × 97 mm H × W × D
What's in the box
1 - MicroB-to-USB Cable
1 - USB-C-to-Micro USB Cable
