Nagra
Nagra CLASSIC INT Amplifier

AED 74,000.00 (Inc. Tax)

(Price Per Unit)

Only 2 left in stock (can be backordered)

Pay a 50% deposit per item

Ships Next Business Day

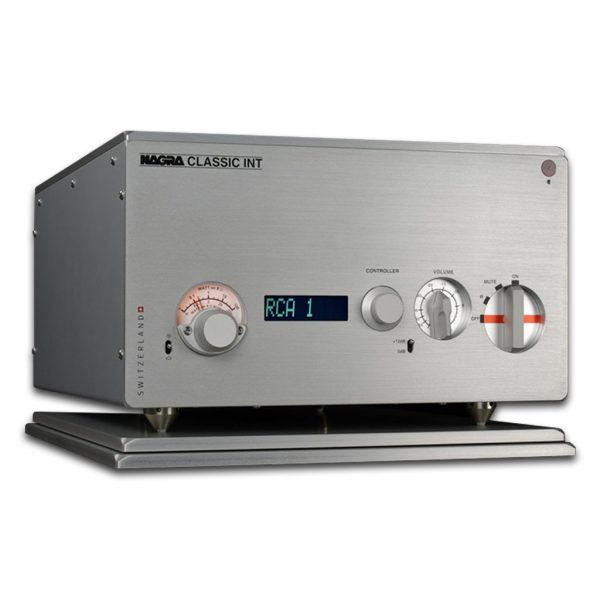

Based on the acclaimed design of the Nagra CLASSIC AMP, this is a powerful integrated amplifier capable of driving the great majority of speakers on the market whilst delivering exceptional musicality.

The power amp section is identical to that of the esteemed Nagra CLASSIC AMP, whereas the preamplifier section is an entirely original design by Nagra R&D that sets a new standard for an integrated amplifier.

The Nagra CLASSIC INT offers a compact and simple set-up without the performance compromises that have sometimes been associated with integrated amplifiers.

Orders ship Sunday through Friday from our offices in Dubai, UAE.

In-stock products typically ship within 48 hours and should be expected to arrive in 3-4 business days. Orders outside of the UAE should be expected to arrive in 5-7 business days.

Pre-order and backorder products will state the approximate delivery timeline beside the Add To Cart button.

If you would like to place a custom order, chat with our specialists for a guided shopping experience. Once your order has been placed, a timeline will be provided depending on your order details.

- Free delivery within the UAE
- Shipping charges will be calculated upon checkout for orders outside of the UAE (Bahrain, Oman, Kuwait, Saudi Arabia & Qatar).
- Taxes and duties are calculated according to the applicable laws of the state or country an item is shipped to and are the customer's responsibility.

For additional information on shipping and our exchange & return policy visit our help center.

Installation charges are applicable and can be paid upon delivery for our clients based in Dubai.

- Installation Charges: AED 350 Per Hour
- Speaker Cables: AED 20 Per Meter
- Trunking: AED 10 Per Meter

For clients based outside of the UAE, please contact our specialists and we will share an estimate based on your requirements.


POWER
100 W RMS (into 8 Ohms) per channel output capable of driving the vast majority of speakers whatever their efficiency.

PREAMPLIFIER SECTION
The preamplifier section is ideally embedded in the unit as the Nagra CLASSIC INT was designed as an integral part of the process which gave rise to the Nagra CLASSIC AMP from which it borrows its power amp element.

Preamplifier equipped with 1 x XLR balanced input in addition to 4 x RCA unbalanced inputs. Each input’s sensitivity can be adjusted to match the source’s output level. It can even accommodate symmetrical professional signal levels enabling it to be used in a mastering studio.

No-compromise build reflects Nagra’s design philosophy where engineering excellence in the service of exceptional musical rendition is the overriding consideration. The Nagra CLASSIC INT offers the performance of separate pre and power amplifiers in one integrated package.

USER-FRIENDLY INTERFACE
Front panel with LCD screen, similar to the Nagra CLASSIC DAC so that each input can be named. An intuitive menu allows access to custom settings as well as operating time. All functions are accessible via remote.

Traditional Nagra Modulometer showing the output power.

LED to indicate saturations or excessive temperature.

Same dimensions as the other elements in the Nagra CLASSIC range allowing for neat and aesthetic stacking in the building of a complete Nagra system from various components.
POWER
100 W RMS (into 8 Ohms) per channel output capable of driving the vast majority of speakers whatever their efficiency.

PREAMPLIFIER SECTION
The preamplifier section is ideally embedded in the unit as the Nagra CLASSIC INT was designed as an integral part of the process which gave rise to the Nagra CLASSIC AMP from which it borrows its power amp element.

Preamplifier equipped with 1 x XLR balanced input in addition to 4 x RCA unbalanced inputs. Each input’s sensitivity can be adjusted to match the source’s output level. It can even accommodate symmetrical professional signal levels enabling it to be used in a mastering studio.

No-compromise build reflects Nagra’s design philosophy where engineering excellence in the service of exceptional musical rendition is the overriding consideration. The Nagra CLASSIC INT offers the performance of separate pre and power amplifiers in one integrated package.

USER-FRIENDLY INTERFACE
Front panel with LCD screen, similar to the Nagra CLASSIC DAC so that each input can be named. An intuitive menu allows access to custom settings as well as operating time. All functions are accessible via remote.

Traditional Nagra Modulometer showing the output power.

LED to indicate saturations or excessive temperature.

Same dimensions as the other elements in the Nagra CLASSIC range allowing for neat and aesthetic stacking in the building of a complete Nagra system from various components.
ELECTRONICS
Class: AB
Power: 100 W rms into 8Ω
Sensitivity: XLR input: Normal 2V; PRO 10V
RCA1 input: Normal 2V; High 3V
RCA 2 to 4 inputs: 2V
Bandwidth: <10 Hz to 80 KHz, +0 / -3 dB Crosstalk: >70 dB
Signal to noise ratio: Typically 110 dB measured in ASA A
THD+N: <0.05% at 100 W Input impedance: >100 KΩ
Output impedance: 60 mΩ
Monitoring: Stereo level meter
Red LED on the modulometer: clipping indication, temperature, saturation
Display: Saturation
Protection (deactivates amplifier): Overheating: above 60°C (140°F)
DC protection for loudspeakers: above +/- 2.5 V DC
Power consumption: 400 W max (sine wave current draw complies with EN61000-3-2 regulation)
< 1 W in standby and auto
Operating range: 90-110 V, 110-132 V, 180-264 V: 50-60 Hz

CONNECTIONS
Inputs: XLR (balanced)
RCA 1 to 4 (unbalanced)
Jack 3.5 mm (external remote IN and OUT)
Outputs: Cardas CPBP (rhodium terminals)
Banana plugs

GENERAL
Dimensions: 350 (400 from the nose of the modulometer to back of the connectors) x 277 x 165mm (15.7 x 10.9 x 6.5 inches) – Add 3cm or 1.2 inches with a VFS plate placed under
Weight: 18 Kg (40 lbs)
POWER
100 W RMS (into 8 Ohms) per channel output capable of driving the vast majority of speakers whatever their efficiency.

PREAMPLIFIER SECTION
The preamplifier section is ideally embedded in the unit as the Nagra CLASSIC INT was designed as an integral part of the process which gave rise to the Nagra CLASSIC AMP from which it borrows its power amp element.

Preamplifier equipped with 1 x XLR balanced input in addition to 4 x RCA unbalanced inputs. Each input’s sensitivity can be adjusted to match the source’s output level. It can even accommodate symmetrical professional signal levels enabling it to be used in a mastering studio.

No-compromise build reflects Nagra’s design philosophy where engineering excellence in the service of exceptional musical rendition is the overriding consideration. The Nagra CLASSIC INT offers the performance of separate pre and power amplifiers in one integrated package.

USER-FRIENDLY INTERFACE
Front panel with LCD screen, similar to the Nagra CLASSIC DAC so that each input can be named. An intuitive menu allows access to custom settings as well as operating time. All functions are accessible via remote.

Traditional Nagra Modulometer showing the output power.

LED to indicate saturations or excessive temperature.

Same dimensions as the other elements in the Nagra CLASSIC range allowing for neat and aesthetic stacking in the building of a complete Nagra system from various components.
Read more

POWER
100 W RMS (into 8 Ohms) per channel output capable of driving the vast majority of speakers whatever their efficiency.

PREAMPLIFIER SECTION
The preamplifier section is ideally embedded in the unit as the Nagra CLASSIC INT was designed as an integral part of the process which gave rise to the Nagra CLASSIC AMP from which it borrows its power amp element.

Preamplifier equipped with 1 x XLR balanced input in addition to 4 x RCA unbalanced inputs. Each input’s sensitivity can be adjusted to match the source’s output level. It can even accommodate symmetrical professional signal levels enabling it to be used in a mastering studio.

No-compromise build reflects Nagra’s design philosophy where engineering excellence in the service of exceptional musical rendition is the overriding consideration. The Nagra CLASSIC INT offers the performance of separate pre and power amplifiers in one integrated package.

USER-FRIENDLY INTERFACE
Front panel with LCD screen, similar to the Nagra CLASSIC DAC so that each input can be named. An intuitive menu allows access to custom settings as well as operating time. All functions are accessible via remote.

Traditional Nagra Modulometer showing the output power.

LED to indicate saturations or excessive temperature.

Same dimensions as the other elements in the Nagra CLASSIC range allowing for neat and aesthetic stacking in the building of a complete Nagra system from various components.
Read more

ELECTRONICS
Class: AB
Power: 100 W rms into 8Ω
Sensitivity: XLR input: Normal 2V; PRO 10V
RCA1 input: Normal 2V; High 3V
RCA 2 to 4 inputs: 2V
Bandwidth: <10 Hz to 80 KHz, +0 / -3 dB Crosstalk: >70 dB
Signal to noise ratio: Typically 110 dB measured in ASA A
THD+N: <0.05% at 100 W Input impedance: >100 KΩ
Output impedance: 60 mΩ
Monitoring: Stereo level meter
Red LED on the modulometer: clipping indication, temperature, saturation
Display: Saturation
Protection (deactivates amplifier): Overheating: above 60°C (140°F)
DC protection for loudspeakers: above +/- 2.5 V DC
Power consumption: 400 W max (sine wave current draw complies with EN61000-3-2 regulation)
< 1 W in standby and auto
Operating range: 90-110 V, 110-132 V, 180-264 V: 50-60 Hz

CONNECTIONS
Inputs: XLR (balanced)
RCA 1 to 4 (unbalanced)
Jack 3.5 mm (external remote IN and OUT)
Outputs: Cardas CPBP (rhodium terminals)
Banana plugs

GENERAL
Dimensions: 350 (400 from the nose of the modulometer to back of the connectors) x 277 x 165mm (15.7 x 10.9 x 6.5 inches) – Add 3cm or 1.2 inches with a VFS plate placed under
Weight: 18 Kg (40 lbs)
