Effortless Output from High-Excursion 15-inch SVS Driver
The most formidable, ported cabinet subwoofer driver in its class features all-new dual edge wound voice coils, suspension, basket, and extreme-excursion surround to achieve visceral sound pressure levels with pinpoint accuracy.

Lightweight and rigid 15-inch glass fiber composite cone with optimal stiffness-to-mass ratio for maximum efficiency and acoustic linearity
Two-piece toroidal ferrite electromagnetic motor generates massive force with precise control, remaining authoritative yet detailed and controlled
Extreme-excursion catenary SBR surround maintains pure, long-throw pistonic driver motion

Unerring Control from Dual Edge Wound Voice Coils
Precision engineered dual edge wound voice coils ensure stable transfer of electro-magnetic current to the 15-inch driver for authoritative output and exacting driver control.

Six-layer bi-filar dual voice coils conduct the massive power from the dual-mono amplifier to the motor with maximum thermal efficiency, resulting in effortless acoustic output
Flat edge wound aluminum voice coil wire maximizes density for optimal magnetic field strength and thermal capacity

Dual Mono STA-2000D Amplifier Design with Discrete MOSFET Output
A revolutionary new amplifier platform with technology adapted from the flagship SVS subwoofers. Rated conservatively at 2,000 Watts Continuous, 5,000+ Watts Peak, the innovative design maximizes driver potential with refined behavior and pristine response at any volume.

High Current Output of Fully Discrete MOSFET transistors with efficiency of Class D Amplifier generates immense sonic force with precise control for outstanding real-world performance at all volumes.
Each monoblock amp drives one of the dual three-inch voice coils within the motor to assert pinpoint control and maximize power fed to the driver
Eight 60 Amp 200 Volt MOSFET transistors deliver extreme high current for reference-level output with maximum efficiency

Performance Enhancing Switch Mode Power Supply
Regardless of the power coming out of your household circuit, the PB-5000 R|Evolution always maintains peak performance and remains impervious to voltage fluctuations.

Onboard AC line conditioner filters and stabilizes incoming voltage, corrects waveform distortions, and eliminates electromagnetic and radio interferences to optimize signal quality and audio performance
Ensures clean and consistent 160V rail voltage and optimal power delivery from a standard 15-amp home circuit
Power-Factor-Correction (PFC) time aligns the AC voltage to the AC current resulting in less heat, greater efficiency, reliable peak power output, and the ability to maintain rated power over a wide-range of voltages
FEA optimized convection cooling system has no exterior heatsinks, an extraordinary feat for such a powerful amplifier

Extreme Subwoofer Intelligence – 295 MHz Analog Devices DSP
Orchestrating the cutting-edge amplifier, motor, and driver ecosystem is the most sophisticated DSP ever deployed in a home audio subwoofer.

Accurately shapes in-room frequency response with absolute precision for faithful signal reproduction
Monitors every function of the amplifier to stabilize AC voltage delivery to the power supply to maintain consistent peak output
Multi-point thermal, voltage, and current monitoring systems ensure maximum output and efficiency
Advanced digital audio processing and DACs (Digital-to-Analog Converters) with 120 dB Signal-to-Noise Ratio provide greater headroom, lower noise, and pristine fidelity

SVS Subwoofer Smartphone Control App
Convenient subwoofer tuning and control from the comfort of your favorite seat. Works via Bluetooth with Apple iOS, Google Android, and Amazon Fire platforms.

Controls for volume, low pass filter, phase, polarity, six parametric equalizers, room gain compensation, port tuning modes, power management settings, and more.
Includes three convenient memory presets for fast and easy system adjustments to match your listening preferences – music, movies, night mode, and more
Amplifier Rear Panel OLED and control interface provide fast and direct control of the most important features and includes a convenient “Display Flip” function.

SVS Subwoofer Auto EQ Room Correction
Achieves pristine fidelity by resolving acoustic issues caused by your room in a few easy steps.

Automatically tunes subwoofer output using your smartphone microphone or an external microphone and the SVS subwoofer app
Applies equalization, capitalizes on available room gain, and shapes in-room frequency response at the main listening positions for optimal in-room performance
Will be available soon via an over-the-air SVS Subwoofer Control App update

Acoustically Inert, Rigidly Braced Ported Box Cabinet Design
Triple-ported cabinet design results in subterranean deep bass extension with room-energizing output that fills even the largest home theaters.

Double-thick 2-inch MDF front baffle and rigid internal bracing to support the massive drive unit and to ensure an acoustically inert environment.
Three high-flow 3.5-inch rounded ports enable massive airflow for greater dynamic headroom.
Highly reinforced internal design and acoustic insulation eliminates all coloration or resonance from the cabinet, even when the deepest low frequencies are played at reference volume.
Protective non-resonant extra-thick ABS grille frame with fabric mesh cover shields driver to prevent damage while ensuring longevity.
Custom elastomer feet reduce noise artifacts within a room.

15Hz to 180Hz +/- 3dB (standard mode – all ports open)
13Hz to 180Hz +/- 3dB (extended mode – 2 ports open)
16Hz to 270Hz +/- 3dB (sealed mode – all ports sealed)
Expect 2-3Hz deeper extension in small to mid-size rooms.
Roll-off slope specifically optimized to take maximum advantage of available room gain.
2-meter ground plane away from reflective structures (quasi-anechoic).

Subwoofer Specifications
-Available in Piano Gloss Black and Black Ash finishes
-Front-firing 15-inch high-excursion driver
-Triple high-flow 3.5-inch ports for maximum airflow
-Protective, non-resonant extra-thick ABS grille frame with fabric mesh cover
-Screw-in Iso-elastomer feet to reduce noise and improve stability
-Built with robust Medium Density Fiberboard (MDF)
-Internal bracing ensures resonance-free performance at high output levels

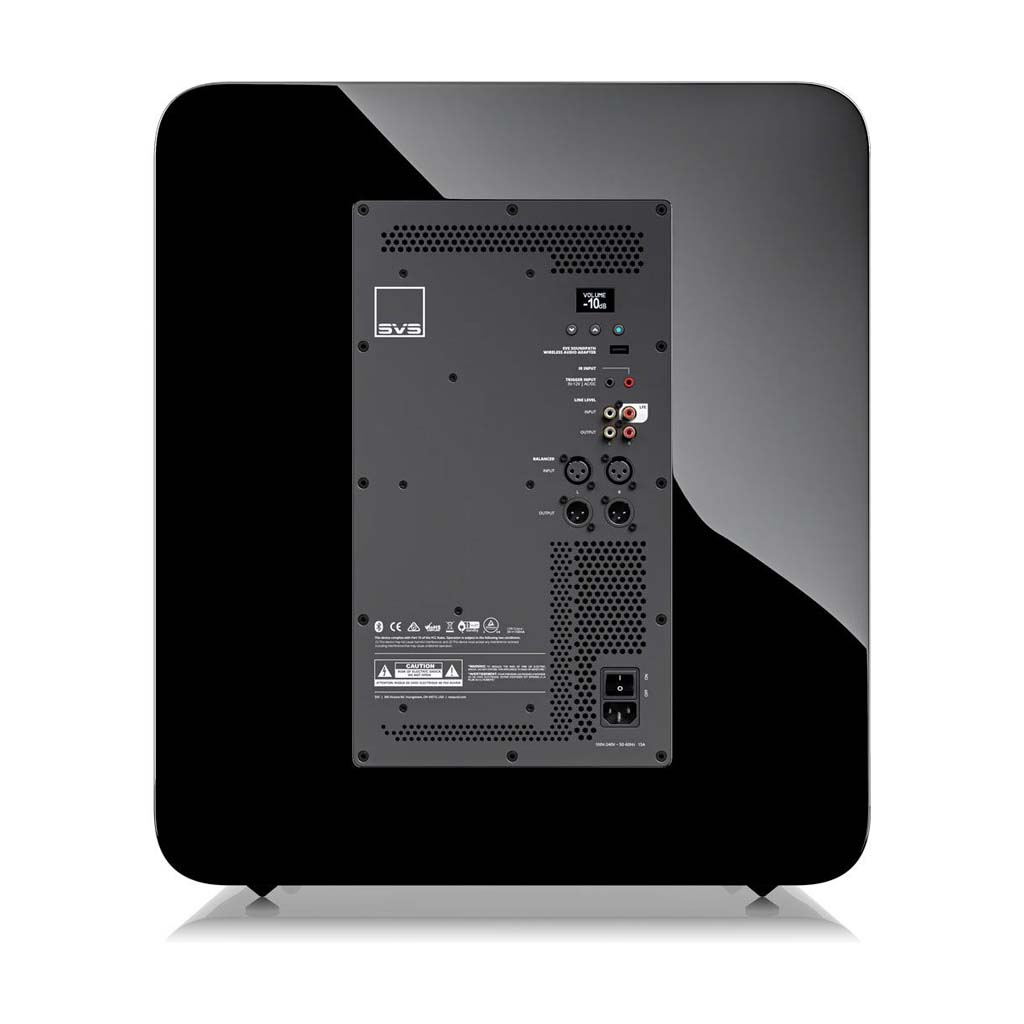

-Rear panel OLED display and control interface
-Includes Display Flip function for flexible installation
-With grille: 23.4” (595mm) H × 20.5” (520mm) W × 28.7” (727mm) D
-Without grille: 23.4” (595mm) H × 20.5” (520mm) W × 27.6” (701mm) D
-Shipped dimensions: 29.1” (738mm) H × 26.0” (661mm) W × 36.0” (915mm) D
-Unboxed with grille: 153.9 lbs (69.8 kg)
-Shipped weight: 174.3 lbs (79.1 kg)

Driver Specifications
-All-new proprietary 15-inch long-throw driver
-High-precision tuned overhung motor configuration for enhanced control and output
-Woofer Weight: 46.3 lbs (21 kg)
-Motor Weight: 38.4 lbs (17.46 kg)
-Xmax: 46.32 mm
-Xmech: 77.44 mm (precision aligned for extreme linear motion)
Voice Coil:3” diameter
-High-current, 6-layer bifilar flat edge-wound aluminum wire
-Dual Voice Coil Design: Captures power from dual-mono amplifier outputs into a single voice coil for maximum output
-Former/Bobbin: High-temperature glass-fiber composite
-Two-piece high-grade oversized Y30 Ferrite magnet motor
-Delivers effortless on-demand driving force
-Copper Shorting Sleeve: Around T-yoke to reduce inductance and lower distortion
-Precision-machined with narrow tolerances
-Integrated pole-piece extension
-Made from zinc-plated low carbon 1010 steel for optimal magnetics and thermal performance
-Spiders: Dual Nomex-composite extreme-excursion linear suspension spiders
-Proprietary injection-molded parabolic NBR rubber
-Ensures flawless pistonic motion and distortion-free performance even at high drive levels
Cone & Dust Cap
-Vented composite cone sub-structure
-Premium glass-fiber laminated dustcap
-Exceptional stiffness-to-mass ratio enables massive air movement with crisp accuracy
Basket & Terminals
-High-density 15” powder-coated cast aluminum
-FEA-optimized for maximum rigidity, tensile strength, and energy transfer
-Nickel-plated high-tension spring terminals for secure, long-lasting connections

Amplifier Specifications
-Class D amplifier delivering 2,000 watts continuous power and over 5,000 watts peak power for effortless low-frequency performance.
-Utilizes a 295MHz Analog Devices Audio DSP with double-precision 56-bit filtering—over 5× more processing power than previous models.
-Ensures the most precise and accurate subwoofer signal processing in its class.
-The DSP continuously monitors all amplifier functions to ensure clean, regulated voltage to and from the switch-mode power supply.
-It runs complex power management algorithms with multi-point thermal, voltage, and current monitoring to maintain consistent peak performance and high efficiency.
-Advanced DACs with a 120 dB Signal-to-Noise Ratio deliver exceptional headroom, ultra-low noise, and pristine audio fidelity.
-Powered by eight massive 60A / 200V MOSFETs, delivering low EMI and maximum efficiency.
-Each voice coil receives dedicated, clean, and continuous power for effortless SPL and subsonic clarity.
-New SMPS includes two-stage 100V–240V full-range active Power Factor Correction (PFC).
-Pre-regulates input to a solid 390V DC, ensuring stable 160V rail voltage for the dual-mono amplifier outputs.
-Aligns AC voltage with current to minimize heat, boost efficiency, maintain output power across varying input voltages, and improve long-term performance.
-Filters and stabilizes incoming power, corrects waveform distortion, and eliminates EMI/RFI interference for optimized audio quality.
-New convective cooling system draws cool air from below the amplifier plate, flowing across internal heat sinks and components—removing the need for external heatsinks.
-5000 Series-specific presets allow full room control and accurate, immersive bass performance, tailored to your environment.
-Unbalanced RCA input (10k ohms input impedance – supports up to 4Vrms)
-Balanced XLR input (14k ohms input impedance – supports up to 4Vrms / +14dBu)
-Rear panel OLED display with intuitive controls for core settings
-USB power port supports SVS SoundPath Wireless Audio Adapter (sold separately), eliminating cable clutter
-App-based control supports Auto/On and Trigger functions (3.5mm input, 3–12V AC/DC)
-3.5mm IR input for seamless integration with control systems
-Low standby power consumption (0.5 watts)
-RoHS compliant, lead-free design with worldwide safety certifications

SVS App Features
-Works with Apple iOS, Google Android, and Amazon Fire devices.
-Provides convenient and intuitive control of all subwoofer functions from your smartphone or tablet.
-Powered by Analog Devices DSP, offering control over:
-Fully adjustable low pass filter
-Phase and polarity
-Six-band parametric EQ (PEQ)
-Room gain compensation
-Tuning modes
-Power management and more
-Three memory presets allow quick switching between different settings based on your listening preferences or content type.
-Automatically calibrates your subwoofer using your device’s built-in microphone (or optional accessory mic).
-Measures in-room performance and applies precision EQ filters to optimize sound at your listening position.
-Changes made in the app reflect instantly on the subwoofer’s interface—and vice versa—for seamless control.
-An easy-to-follow guide walks users through all features, making setup and adjustments simple for any user.
