Big Powerful Woofers
The PS2K subwoofer leaves no room for compromise. Four 13″ woofers, or drivers, with massive magnets are the heart and soul of the PS2K. They utilize our patented Low Distortion High Performance (LD/HP®) Magnetic Circuit Design, which significantly reduces distortion while increasing the driver’s power handling and efficiency.

Finite Element Analysis (FEA) played a pivotal role in optimizing the drivers’ performance, ensuring a sound experience that is simply breathtaking. The drivers have been developed with extreme linearity in order to reduce distortion. The voice coil is extra long, while the suspension is specially designed with a long excursion to give longer linear capability than most drivers.

Multi-Layer Carbon Fiber Cones
Witness a new pinnacle in craftsmanship with the PS2K’s innovative multi-layer carbon fiber cones. The cones have an integrated formed joint with the voice coil, resulting in extreme rigidity and high power handling capability. While there have been carbon fiber cones available in the past, they were typically made from a single layer of carbon fiber and could still flex quite a bit, which could negatively impact sound performance. We leave no room for acoustic compromises, so the multi-layer cones in the PS2K’s drivers are very strong and can resist long, extended excursion travel without any unwanted flexing.

Raw Power
Feel the passion in your favorite songs and movies as the PS2K’s four woofers, each driven by a dedicated 500 Watt Class D amplifier, unite to unleash a total power output of up to 2,000 Watts. The amplifiers are meticulously calibrated to minimize distortion and produce clear, tight bass with astonishingly low distortion in even the most expansive listening spaces.

The woofers are stacked atop the amplifier module, which features a power output meter that shows the total output of the PS2K. The enclosure baffle is nearly 1-1/2″ (3.8cm) thick to ensure ultimate rigidity and low vibration, and has a sealed box design to eliminate any potential port noises.

Big Performance for All
The PS2K is designed to effortlessly keep up with the output levels that can be obtained with our Reference Two-Channel and Reference Home Theater systems. These systems are powered by our 2,000 Watt tri-chassis MC2.1KW monoblock amplifiers and feature our large XRT2.1K and XRT1.1K speakers (or the previous generation XRT2K and XRT1K speakers); the PS2K will be a perfect match both sonically and visually with these McIntosh speakers.

With a sleek design that bridges the gap between power and finesse, the PS2K is also the perfect complement to high-output loudspeakers from other manufacturers. With its robust power capabilities, the PS2K subwoofer will not “run out of steam” at the high volume levels achievable from the main speakers in any high-end home audio or home theater system.

Seamless Integration and Adjustability
The PS2K is not only a powerhouse in performance but also a master of versatility. Whether you have a two-channel stereo system or a multi-channel home theater setup, the PS2K offers balanced stereo inputs and outputs, as well as balanced and unbalanced subwoofer inputs and outputs. This variety of connection options will satisfy virtually all installations. Daisy-chaining capabilities are in place so that more than one PS2K can be used in a system.

Built-In Protection for a Lifetime of Listening
At McIntosh, we prioritize the longevity of your audio investment. The PS2K comes with two of our indispensable protection technologies. The first is Power Guard®, which monitors the audio input signal coming into the amplifiers and if necessary, makes real time, near speed of light adjustments to prevent harsh sounding clipping. These adjustments are imperceptible to your ear so there is no degradation to sound quality.

The second is Sentry Monitor™, our fuse-less short-circuit protection circuit that disengages the amplifier’s output stage before current could ever exceed safe operating levels, and automatically resetting when operating conditions return to normal.

Crafted to Inspire
The PS2K’s high gloss black finish with carbon trim and aluminum base reflects the elegance of our renowned XRT2.1K and XRT1.1K speakers, creating an awe-inspiring visual harmony. Designed with convenience in mind, the PS2K incorporates our Power Control technology for seamless integration with other McIntosh equipment. Our eco-friendly on/off signal sensing ensures efficient power management, while the inclusion of glide feet for hard floors and spikes for carpeting ensures an effortless fit in your space.

Experience the Pinnacle of Bass Perfection
Elevate your audio experience with the McIntosh PS2K Powered Subwoofer – a masterclass in precision, power, and passion. Contact your local dealer today and embark on a journey that transcends sound, reaching the depths of your soul. At McIntosh, we invite you to discover the art of sound – the ultimate inspiration for life’s grandest moments.

- (4) 13” Woofers
- (4) 500 Watt Amplifiers
- Up to 2,000 Watt Power Rating
- Adjustable Low & High Pass Filters, Parametric EQ Filters, Level Control, and Phase Adjustment
- Extra thick enclosure baffle to ensure ultimate rigidity and low vibration

Enclosure Finish
Highly polished Piano Black
Metal Finish
Anodized aluminum base
High Durable powder coated plate surfaces

Electronic Specifications
Impedance Nominal
8 Ohms

Power Output
2KW (Four 500W, one per woofer)
Maximum Output > 120 dB

Frequency Response
20Hz - 500Hz with LFE
20Hz - 100Hz without LFE

Filter Frequencies
High Pass: 40Hz - 100Hz
Low Pass: 40Hz - 100Hz
Phase: Continuously Variable
Parametric: Two band 30Hz - 100Hz, variable bandwidth and level +/- 8dB

Input Sensitivity
1V Balanced
500mV Unbalanced (0.5V)

Total Harmonic Distortion
Amplifier: 0.05%
Preamplifier (rear panel outputs): 0.005%

Voltage Gain
Amplifier: 31dB
Preamplifier: 10dB
Signal To Noise Ratio
Amplifier: 115dB A Weighted
Preamplifier: 100dB A Weighted

Input Impedance
20K Ohms Balanced
10K Ohms Unbalanced
Maximum Input Signal
9V Balanced
4.5V Unbalanced

Driver Specifications
Number of Woofers: 4
Woofer Size: 13"
Woofer Type: Carbon Fiber with extra long excursion and Low Distortion High Performance (LD/HP®) Magnetic Circuit Design

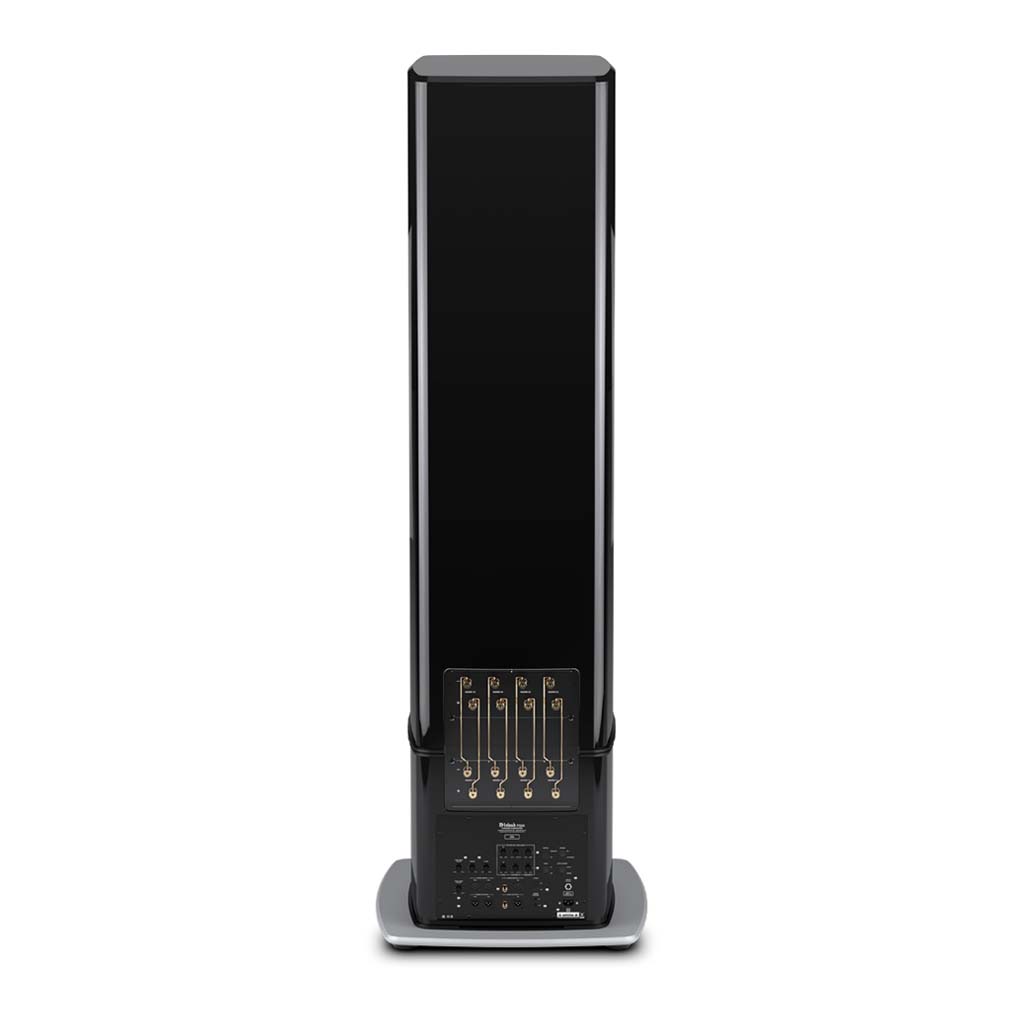

Connectivity
Balanced Input
1 Pair Stereo
1 Subwoofer (mono)
Unbalanced Input
1 Subwoofer (mono)

Balanced Output
1 Pair Stereo
1 Subwoofer (mono)
Unbalanced Output
1 Subwoofer (mono)

Weights & Dimensions
Unit Dimensions (W x H x D): 19-1/4” (48.9cm) x 78-5/8” (199.7 cm) x 22-1/2” (57.2cm)
Base footprint: 25-5/16" (64.3cm) x 28-7/16" (21.43cm)
Unit Weight: 458 lbs (207.7kg)
Shipping Weight: 932 lbs (422.7kg)
