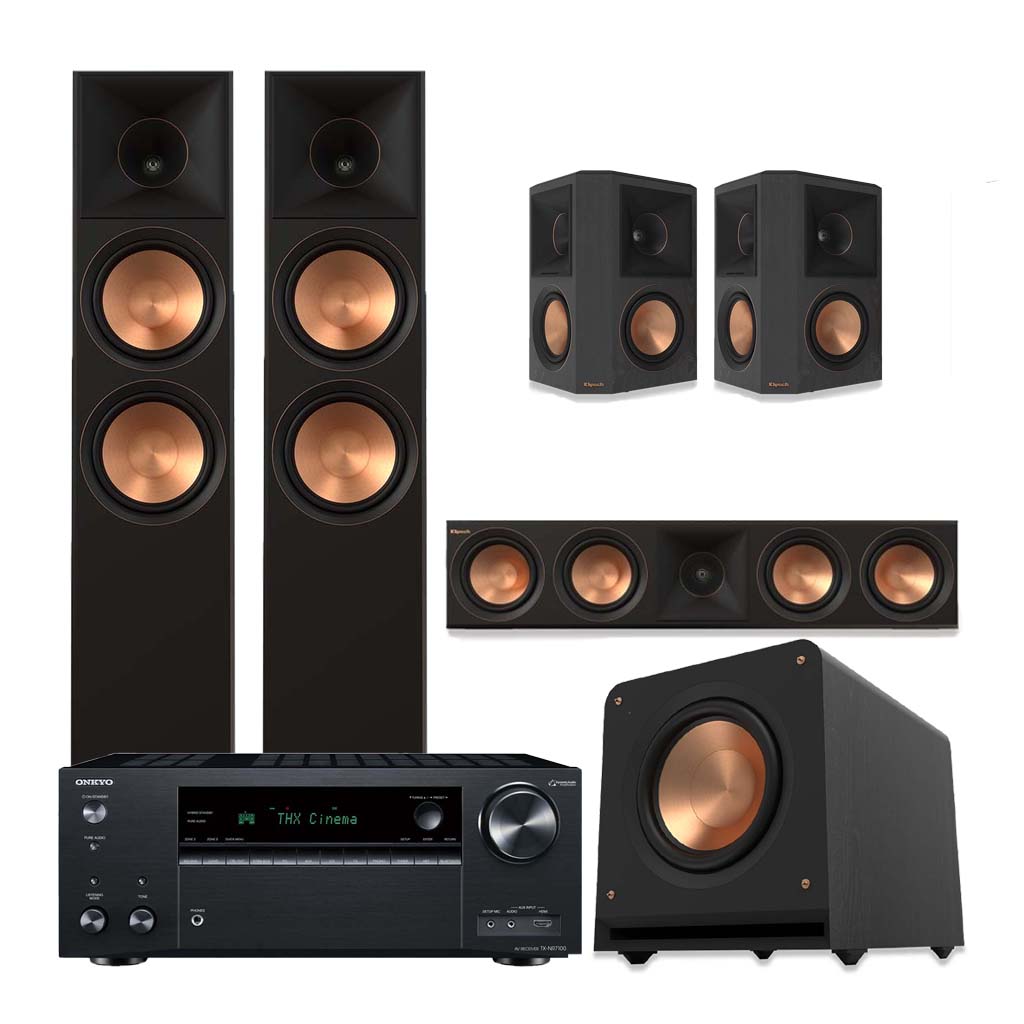

Klipsch RP-8000F II Floor Standing Speaker Description

BIGGER HORN, BETTER SOUND
A new, larger 90° x 90° silicone composite hybrid Tractrix® horn provides incredibly efficient transfer of high-frequency waves into the listening area for crisper, clearer sound. The phase plug and compression molded silicone face ensure smooth frequency response.

LINEAR TRAVEL SUSPENSION (LTS) TITANIUM DIAPHRAGM TWEETER
The exclusive 1″ LTS minimizes distortion for enhanced, detailed performance. LTS tweeters are a hallmark of previous Reference Premiere Series, making it a core component of some of the best speakers in the world.

VENTED TWEETER DESIGN
The vented tweeter housing reduces standing waves that create unwanted harmonics, resulting in enhanced detail and clarity in high-frequency reproduction.

ALL-NEW CERAMETALLIC WOOFERS
A signature feature on the Reference Premiere series speakers, the dual 8″ Cerametallic™ woofers the RP-8000F II houses have been updated for absolutely flawless sound reproduction, minimum distortion, and maximum efficiency. The redesigned woofer will deliver the power, detail, and emotion you expect from a Klipsch Reference Premiere speaker.

TRACTRIX PORT
Utilizing Tractrix geometry, the Reference Premiere port allows for the most efficient, fastest air transfer from the cabinet, which reduces port noise for punchier low frequencies and cleaner, more powerful bass.

BI-WIRING BI-AMPING CAPABILITY
Dual input terminals on the RP-8000F II for bi-wiring / bi-amping capabilities separate high and low-frequency current into different speaker cables, reducing distortion for clearer midrange. Bi-amping allows for further optimization of performance with separate outboard power amplifiers for the high frequency and low-frequency drivers.

JUST ADD DOLBY ATMOS
Upgrading to immersive Dolby Atmos sound with the RP-500SA speakers is incredibly easy with simple, hidden connections on the back of the speakers. These refined connections reduce wire visibility while holding them in place for better wire management.
(jumper wires included in the box)

Klipsch RP-504C II Center Channel Speaker Description

BIGGER HORN | BETTER SOUND
Hear every word of the dialogue and lyrics with crystal-clear precision.

A new, larger 90° x 90° silicone composite hybrid Tractrix® horn provides incredibly efficient transfer of high-frequency waves into the listening area to create a crisper, clearer sound.

LINEAR TRAVEL SUSPENSION (LTS) TITANIUM DIAPHRAGM TWEETER
The exclusive 1″ LTS minimizes distortion for enhanced, detailed performance. LTS tweeters are a hallmark of previous Reference Premiere Series, making it a core component of some of the best speakers in the world.

VENTED TWEETER DESIGN
The vented tweeter housing reduces standing waves that create unwanted harmonics, resulting in enhanced detail and clarity in high-frequency reproduction.

ALL-NEW CERAMETALLIC WOOFERS
A signature feature on the Reference Premiere series speakers, the four 5.25″ Cerametallic™ woofers have been updated for absolutely flawless sound reproduction, minimum distortion, and maximum efficiency. The redesigned woofer will deliver the power, detail, and emotion you expect from a Klipsch Reference Premiere speaker.

TRACTRIX PORT
Utilizing Tractrix geometry, the Reference Premiere port allows for the most efficient, fastest air transfer from the cabinet, which reduces port noise for punchier low frequencies and cleaner, more powerful bass.

HIGH-FIDELITY HOME AUDIO
Redesigned, the Reference Premiere Series combines Klipsch signature acoustic expertise with cutting-edge technology to deliver the new gold standard in premium home theater and hi-fi listening solutions.

Klipsch RP-502S II Surround Speakers Description

BIGGER HORN, BETTER SOUND
A new, larger 90° x 90° silicone composite hybrid Tractrix® horn provides incredibly efficient transfer of high-frequency waves into the listening area for crisper, clearer sound. The phase plug and compression molded silicone face ensure smooth frequency response.

LINEAR TRAVEL SUSPENSION (LTS) TITANIUM DIAPHRAGM TWEETER
The exclusive 1″ LTS minimizes distortion for enhanced, detailed performance. LTS tweeters are a hallmark of previous Reference Premiere Series, making it a core component of some of the best speakers in the world.

VENTED TWEETER DESIGN
The vented tweeter housing reduces standing waves that create unwanted harmonics, resulting in enhanced detail and clarity in high-frequency reproduction.

ALL-NEW CERAMETALLIC WOOFERS
A signature feature on the Reference Premiere series speakers, the 5.25″ Cerametallic™ woofers have been updated for absolutely flawless sound reproduction, minimum distortion, and maximum efficiency. The redesigned woofer will deliver the power, detail, and emotion you expect from a Klipsch Reference Premiere speaker.

ON-WALL OPTIONS
The Klipsch RP-502S II Surround Speakers can also be utilized as an on-wall elevation or surround speaker via its easy-to-use keyhole mounting system – delivering the perfect angle for enhanced sound effects.

WIDE DISPERSION SURROUND TECHNOLOGY
The cornerstone of every Klipsch surround speaker, proprietary Wide Dispersion Surround Technology (WDST) provides astounding sonic detail for lifelike, cinematic sound in any room, even in less-than-ideal placement configurations.

HIGH-FIDELITY HOME AUDIO
Redesigned, the Reference Premiere Series combines Klipsch signature acoustic expertise with cutting-edge technology to deliver the new gold standard in premium home theater and hi-fi listening solutions.

Klipsch RP-1200SW Subwoofer Description

The Klipsch RP-1200SW Subwoofer delivers authoritative, room-shaking bass, serving as the ultimate low-frequency foundation for large home theaters and discerning audio systems. As part of Klipsch’s premium Reference Premiere Series, it boasts a 12-inch Spun Copper Cerametallic™ Woofer with high-excursion capabilities, ensuring incredibly precise, powerful, and distortion-free bass response.

Driving this robust driver is a 600W RMS (1200W Peak) Class D amplifier with an analog preamp stage, providing maximum output with exceptional clarity. Its front-firing slot port features optimized internal flare geometry for enhanced bass extension and reduced port noise. Encased in a durable MDF cabinet with a scratch-resistant ebony vinyl finish and a removable steel grille, the RP-1200SW offers versatile placement and premium aesthetics. With flexible LFE/line-level inputs, variable controls for phase, gain, and crossover, plus an optional WA-2 wireless port, it seamlessly integrates into any setup, unleashing dynamic, accurate low-end performance.

Onkyo TX-NR7100 9.2-Channel AV Receiver Description

The Onkyo TX-7100 9.2-Channel AV Receiver With 9 channels and built-in, ready-to-use Dirac Live® Room Correction and THX® Certified AV Receiver brings new meaning to the phrase, “home movie night”

Klipsch Optimize Mode
Klipsch Optimize Mode allows you to easily integrate your Klipsch Reference and Reference Premiere speakers seamlessly with your Onkyo AV receiver. Klipsch and Onkyo teamed up to implement the precise crossover values for specific new Reference Premiere speakers. Now, you can simply select the model speakers you’ll be using for each individual channel, and the optimized crossover setting will be automatically applied.

Discrete Zone 3 HDMI Switching
Set up different high-definition entertainment options with up to 8K60 resolution* in two different rooms from your Onkyo receiver when the kids don’t feel like partaking in whatever you like or vice versa.**

*8K60 only valid for Zone 1/Zone 2 will only produce 4K120 resolution when two separate HDMI sources are used
**Zone 3 for analog and Net sources only

THX Certified
In 1993, Onkyo became the first consumer electronics brand to be THX-certified. With literally thousands of tests, before earning the THX-certification logo: no matter what input is used, no matter what combination of the many built-in features for the AVR, preamplifier, or amplifier, there can be absolutely nothing added, nothing taken away from the source material. The TX-NR7100 offers four distinct THX listening modes: cinema, gaming, music, and surround EX.

Built-In Streaming Services
Access to Spotify®, TIDAL, Deezer, TuneIn, and Pandora® are built into the system. Use dedicated apps (where available) or the free Onkyo Control App for Apple and Android devices to find and play music.

HDMI 2.1 WITH 8K PROVIDES IMMERSIVE SOUND FROM YOUR TV APPS
HDMI® 2.1 is the most recent update of the HDMI® spec and supports eARC, a range of higher video resolutions and refresh rates including 8K60 and 4K120, and Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. HDMI 2.1 with 8K and eARC ensures your system is ready for the clearest and cleanest picture available both now and down the road.

SMART HOME COMPATIBLE WITH VOICE CONTROL
The Onkyo TX-NR7100 9.2-Channel THX® Certified AV Receiver easily integrates into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can operate seamlessly in your multi-room ecosystem.*

*Requires third-party AI compatible smart home device with microphone

WORKS WITH SONOS CERTIFIED
This receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Port.* This works with Sonos Certified AVR offers a best-in-class tie-in to the Sonos ecosystem, waking, changing inputs, and playing at the volume you want using the Sonos Volume-Pass Through feature from the Sonos app. The TX-NR7100 can work with up to three Sonos Ports—one for each of three independent zones—each playing a completely different streaming service from Sonos Radio.

*Sonos Port required and sold separately

ULTIMATE 4K GAMING EXPERIENCE
Own your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. – ALLM (Auto Low Latency Mode) optimizes latency from source to screen – QFT (Quick Frame Transport) limits lag for a smoother experience.

BI-DIRECTIONAL BLUETOOTH WIRELESS TECHNOLOGY
This Onkyo AVR can send and receive audio via Bluetooth wireless technology. Stream from your device to the receiver using SBC or AAC codecs, or transmit audio playing through the AVR to compatible wireless headphones using SBC, aptX™, or aptX HD codecs including 24-bit audio over aptX HD. The improved data transfer capabilities of the latest generation of Bluetooth ensure clear and reliable sound reproduction so you hear your favorite songs just as the recording engineer intended.

READY FOR DTS PLAY-FI
DTS Play-Fi allows you to enjoy high-quality music from connected online services, networked media servers, and your device library over Wi-Fi® to any number of compatible products using the Onkyo Music Control App for iPad, iPhone, and Android smartphones/tablets. DTS Play-Fi can synchronize the music in every room. Each member of your family can use their own device to listen to their music in a room or group of rooms. DTS Play-Fi lets you structure a comprehensive multi-room ecosystem that satisfies virtually

Klipsch RP-8000F II Floor Standing Speaker Features

90° X 90° SILICON COMPOSITE HYBRID TRACTRIX HORN
Horn loading maximizes efficiently and increases detail while focusing high frequencies towards the listening area. Proprietary Tractrix® geometry provides the most efficient transfer of high frequency waves into the listening area. The phase plug and compressed molded silicon face ensure smooth frequency response. When combined, the cleanest, most natural sound possible is created. The second generation increases horn size for a larger soundstage and enhanced directivity.

LINEAR TRAVEL SUSPENSION (LTS) TITANIUM DIAPHRAGM TWEETER
The exclusive Linear Travel Suspension minimizes distortion for enhanced, detailed performance. LTS tweeters are a hallmark of previous Reference lines, making it a core component of some of the best speakers in the world.

VENTED TWEETER DESIGN
The vented tweeter housing reduces standing waves that create unwanted harmonics, resulting in enhanced detail and clarity in high frequency reproduction.

CERAMETALLIC WOOFERS – ALL NEW DESIGN
A signature feature on the Reference Premiere series, Cerametallic™ woofers are exceptionally rigid and lightweight for minimal distortion and maximum efficiency. New aluminum shorting rings reduce distortion as well as increased power handling and the new motor structure improve transit response with more control with greater speed and accuracy.

TRACTRIX PORTS
Utilizing Tractrix geometry, the Reference Premiere ports allow for the most efficient, fastest air transfer from the cabinet, which reduces port noise for punchier low frequencies. Klipsch Tractrix ports have custom designed inner flares that help reduce air turbulence entering the port. Less turbulent air helps reduce port noise for cleaner, more powerful bass.

BI-WIRING / BI-AMPING CAPABILITY
Dual input terminals for bi-wiring / bi-amping capabilities. Bi-wiring separates high and low frequency current into separate speaker cables, reducing intermodulation distortion, for clearer midrange. Bi-amping allows for customization using outboard crossovers when using separate amplifiers.

ADVANCED CABINET DESIGN
Additional bracing and a divided cabinet have been added to minimize cabinet resonances and vibration, for the utmost transparency and clarity.

REFINED ATMOS CONNECTIONS
Upgrading to Dolby Atmos is extremely easy with the simple and hidden connections located on the back of the speakers. These refined connections reduce the amount of wire seen and hold them in place for better wire management.

NEW AND IMPROVED INPUT PANEL
Featuring audiophile-grade wire and easily accessible aluminum binding posts for any connection type.

Klipsch RP-504C II Center Channel Speaker Features

90° X 90° SILICON COMPOSITE HYBRID TRACTRIX HORN
Horn loading maximizes efficiently and increases detail while focusing high frequencies towards the listening area. Proprietary Tractrix® geometry provides the most efficient transfer of high frequency waves into the listening area. The
phase plug and compressed molded silicon face ensure smooth frequency response. When combined, the cleanest, most natural sound possible is created. The second generation increases horn size for a larger soundstage and enhanced directivity.

LINEAR TRAVEL SUSPENSION (LTS) TITANIUM DIAPHRAGM TWEETER
The exclusive Linear Travel Suspension minimizes distortion for enhanced, detailed performance. LTS tweeters are a hallmark of previous Reference lines, making it a core component of some of the best speakers in the world.

VENTED TWEETER DESIGN
The vented tweeter housing reduces standing waves that create unwanted harmonics, resulting in enhanced detail and clarity in high frequency reproduction.

CERAMETALLIC WOOFERS – ALL NEW DESIGN
A signature feature on the Reference Premiere series, Cerametallic™ woofers are exceptionally rigid and lightweight for minimal distortion and maximum efficiency. New aluminum shorting rings reduce distortion as well as increased power handling and the new motor structure improve transit response with more control with greater speed and accuracy.

TRACTRIX PORTS
Utilizing Tractrix geometry, the Reference Premiere ports allow for the most efficient, fastest air transfer from the cabinet, which reduces port noise for punchier low frequencies. Klipsch Tractrix ports have custom designed inner flares that help reduce air turbulence entering the port. Less turbulent air helps reduce port noise for cleaner, more powerful bass.

NEW AND IMPROVED INPUT PANEL
Featuring audiophile-grade wire and easily accessible aluminum binding posts for any connection type.

FURNITURE GRADE MATERIALS AND FINISHES
Finishes include ebony vinyl and walnut vinyl that boast satin painted baffles with a scratch resistant finish.

STRONG, FLEXIBLE, REMOVABLE GRILLE
Attaches magnetically for an elegant transition from powerful showstopper to discrete performance piece.

CORK PADS
Cork pads replace rubber bumpers for security on a stand or table.

Klipsch RP-502S II Surround Speakers Features

90° X 90° SILICON COMPOSITE HYBRID TRACTRIX HORN
Horn loading maximizes efficiently and increases detail while focusing high frequencies towards the listening area. Proprietary Tractrix® geometry provides the most efficient transfer of high frequency waves into the listening area. The phase plug and compressed molded silicon face ensure smooth frequency response. When combined, the cleanest, most natural sound possible is created. The second generation increases horn size for a larger soundstage and enhanced directivity.

LINEAR TRAVEL SUSPENSION (LTS) TITANIUM DIAPHRAGM TWEETER
The exclusive Linear Travel Suspension minimizes distortion for enhanced, detailed performance. LTS tweeters are a hallmark of previous Reference lines, making it a core component of some of the best speakers in the world.

VENTED TWEETER DESIGN
The vented tweeter housing reduces standing waves that create unwanted harmonics, resulting in enhanced detail and clarity in high frequency reproduction.

CERAMETALLIC WOOFERS – ALL NEW DESIGN
A signature feature on the Reference Premiere series, Cerametallic™ woofers are exceptionally rigid and lightweight for minimal distortion and maximum efficiency. New aluminum shorting rings reduce distortion as well as increased power handling and the new motor structure improve transit response with more control with greater speed and accuracy.

WIDE DISPERSION SURROUND TECHNOLOGY
As the cornerstone of every Klipsch surround speaker, proprietary Wide Dispersion Surround Technology (WDST) provides astounding sonic detail – for lifelike, cinematic sound in any room, even with less-than-ideal placement configurations.

NEW AND IMPROVED INPUT PANEL
Featuring audiophile-grade wire and easily accessible aluminum binding posts for any connection type.

FURNITURE GRADE MATERIALS AND FINISHES
Finishes include ebony vinyl and walnut vinyl that boast satin painted baffles with a scratch resistant finish.

STRONG, FLEXIBLE, REMOVABLE GRILLE
Attaches magnetically for an elegant transition from powerful showstopper to
discrete performance piece.

Klipsch RP-1200SW Subwoofer Features

The Best High-Performance Subwoofers Klipsch has ever Made

HYPER-EFFICIENT BALANCED PERFORMANCE
Striking the optimal balance between amplifier power, driver capability and cabinet volume, Reference Premiere subwoofers achieve maximum low frequency extension with great output, accuracy and speed.

SPUN COPPER FRONT-FIRING CERAMETALLIC WOOFERS
Newly designed Cerametallic™ woofers are exceptionally light and extremely rigid, providing remarkable low frequency response with minimal cone breakup and distortion for higher, cleaner output using less amplifier power.

HIGH EFFICIENCY CLASS D AMPLIFIER
The built-in, high efficiency amplifier features an analog preamp design, which maintains the original signal path for cleaner, true-to-source reproduction. The Class D output stage ensures maximum efficiency for maximum output, detail, and low frequency power.

FRONT-FIRING SLOT PORT WITH EXCLUSIVE INTERNAL FLARE TECHNOLOGY
Proprietary internal geometry with a new Aerofoil slot port design minimizes port noise for clean undistorted low frequencies. The front-firing design allows for placement flexibility.

WA-2 WIRELESS SUBWOOFER KIT CAPABLE
The Klipsch WA-2 Wireless Subwoofer Kit (sold separately) allows high resolution wireless connectivity for easy placement anywhere in your room and optimizes output and low frequency response. Connect up to four WA-2 wireless kits to compatible Klipsch subwoofers in a single room for a completely wireless connection.

FLEXIBLE CONTROLS
Low Pass Crossover and Variable Phase control allows you to tune the subwoofer to your Klipsch speakers and to your room, establishing the ideal level of bass. Line Level / LFE RCA inputs ensure compatibility with home theater receivers.

1/2-WATT STANDBY MODE
Exceptional efficiency on or off. Meets global efficiency standards - reducing energy costs for the user.

USE INPUTS SIMULTANEOUSLY
Both the RCA and wireless inputs can be utilized, giving you the ability to use a
single subwoofer with multiple system in the same room. For example, you can use
the wireless input for your home theater set up and the RCA input for your 2-channel system, without needing to switch inputs when changing between systems.

ULTRA-DURABLE EBONY FINISH
Scratch resistant ebony vinyl finish looks like real wood and covers the entire cabinet.

DETAILED DESIGN
Rounded corners, shock-absorbing rubber feet, steel grille posts and a woven cloth grille ensure a premium look and feel.

Onkyo TX-NR7100 9.2-Channel AV Receiver Features

Klipsch Optimize Mode
Klipsch Optimize Mode allows you to easily integrate your Klipsch Reference and Reference Premiere speakers seamlessly with your Onkyo AV receiver. Klipsch and Onkyo teamed up to implement the precise crossover values for specific new Reference Premiere speakers. Now, you can simply select the model speakers you’ll be using for each individual channel, and the optimized crossover setting will be automatically applied.

Discrete Zone 3 HDMI Switching
Set up different high-definition entertainment options with up to 8K60 resolution* in two different rooms from your Onkyo receiver when the kids don’t feel like partaking in whatever you like or vice versa.**

*8K60 only valid for Zone 1/Zone 2 will only produce 4K120 resolution when two separate HDMI sources are used
**Zone 3 for analog and Net sources only

THX Certified
In 1993, Onkyo became the first consumer electronics brand to be THX-certified. With literally thousands of tests, before earning the THX-certification logo: no matter what input is used, no matter what combination of the many built-in features for the AVR, preamplifier, or amplifier, there can be absolutely nothing added, nothing taken away from the source material. The TX-NR7100 offers four distinct THX listening modes: cinema, gaming, music, and surround EX.

Built-In Streaming Services
Access to Spotify®, TIDAL, Deezer, TuneIn, and Pandora® are built into the system. Use dedicated apps (where available) or the free Onkyo Control App for Apple and Android devices to find and play music.

HDMI 2.1 WITH 8K PROVIDES IMMERSIVE SOUND FROM YOUR TV APPS
HDMI® 2.1 is the most recent update of the HDMI® spec and supports eARC, a range of higher video resolutions and refresh rates including 8K60 and 4K120, and Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. HDMI 2.1 with 8K and eARC ensures your system is ready for the clearest and cleanest picture available both now and down the road.

SMART HOME COMPATIBLE WITH VOICE CONTROL
The Onkyo TX-NR7100 9.2-Channel THX® Certified AV Receiver easily integrates into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can operate seamlessly in your multi-room ecosystem.*

*Requires third-party AI compatible smart home device with microphone

WORKS WITH SONOS CERTIFIED
This receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Port.* This works with Sonos Certified AVR offers a best-in-class tie-in to the Sonos ecosystem, waking, changing inputs, and playing at the volume you want using the Sonos Volume-Pass Through feature from the Sonos app. The TX-NR7100 can work with up to three Sonos Ports—one for each of three independent zones—each playing a completely different streaming service from Sonos Radio.

*Sonos Port required and sold separately

ULTIMATE 4K GAMING EXPERIENCE
Own your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. - ALLM (Auto Low Latency Mode) optimizes latency from source to screen - QFT (Quick Frame Transport) limits lag for a smoother experience.

BI-DIRECTIONAL BLUETOOTH WIRELESS TECHNOLOGY
This Onkyo AVR can send and receive audio via Bluetooth wireless technology. Stream from your device to the receiver using SBC or AAC codecs, or transmit audio playing through the AVR to compatible wireless headphones using SBC, aptX™, or aptX HD codecs including 24-bit audio over aptX HD. The improved data transfer capabilities of the latest generation of Bluetooth ensure clear and reliable sound reproduction so you hear your favorite songs just as the recording engineer intended.

READY FOR DTS PLAY-FI
DTS Play-Fi allows you to enjoy high-quality music from connected online services, networked media servers, and your device library over Wi-Fi® to any number of compatible products using the Onkyo Music Control App for iPad, iPhone, and Android smartphones/tablets. DTS Play-Fi can synchronize the music in every room. Each member of your family can use their own device to listen to their music in a room or group of rooms. DTS Play-Fi lets you structure a comprehensive multi-room ecosystem that satisfies virtually.

Klipsch RP-8000F II Floor Standing Speaker Specification

FREQUENCY RESPONSE: 35-25kHz +/- 3dB
SENSITIVITY*: 98dB @ 2.83V / 1m*
POWER HANDLING (CONT/PEAK): 150W / 600W
NOMINAL IMPEDANCE: 8 Ohms Compatible
CROSSOVER FREQUENCY: 1630Hz
HIGH FREQUENCY DRIVER:
- 1" Titanium LTS Vented Tweeter with Hybrid
- Cross-Section Expanded Tractrix® Horn
LOW FREQUENCY DRIVER: Dual 8” Cerametallic Cone Woofers with Faraday rings
ENCLOSURE MATERIAL: MDF(Internally Braced)
ENCLOSURE TYPE: Bass Reflex via dual chamber rear-firing Tractrix® Ports
INPUTS: Dual aluminum binding posts / bi-wire / bi-amp with Dolby Atmos® passthrough
HEIGHT INCHES (MM): 43.10" (109.5 cm)
WIDTH INCHES (MM): 10.84" (27.5 cm)
DEPTH INCHES (MM): 18.25" (46.3 cm)
PRODUCT WEIGHT LBS (KG): 61.4lb (27.85kg)

Klipsch RP-504C II Center Channel Speaker Features

FREQUENCY RESPONSE: 50-25kHz +/- 3dB
SENSITIVITY:* 96dB @ 2.83V / 1m*
POWER HANDLING (CONT/PEAK): 150W/600W
NOMINAL IMPEDANCE: 8 Ohms Compatible
CROSSOVER FREQUENCY: 650Hz/1950Hz
HIGH FREQUENCY DRIVER:
- 1" Titanium LTS Vented Tweeter with Hybrid
- Cross-Section Expanded Tractrix® Horn
LOW FREQUENCY DRIVER: Quad 5.25" Cerametallic Cone Woofers with Faraday rings
ENCLOSURE MATERIAL MDF: (Internally Braced)
ENCLOSURE TYPE: Bass Reflex via rear-firing Tractrix® Port
INPUTS: Single aluminum binding posts
HEIGHT INCHES: (MM) 6.87" (17.4 cm)
WIDTH INCHES (MM): 32.06" (81.4 cm)
DEPTH INCHES (MM): 15.08" (38.3 cm)
PRODUCT WEIGHT LBS(KG): 36.3lb (16.45kg)

Klipsch RP-502S II Surround Speakers Specification

FREQUENCY RESPONSE: 62-25kHz +/- 3dB
SENSITIVITY*: 94dB @ 2.83V / 1m*
POWER HANDLING (CONT/PEAK): 100W/400W
NOMINAL IMPEDANCE: 8 Ohms Compatible
CROSSOVER FREQUENCY: 1500Hz
HIGH FREQUENCY DRIVER:
- 1" Titanium LTS Vented Tweeter with Hybrid
- Cross-Section Expanded Tractrix® Horn
LOW FREQUENCY DRIVER: Dual 5.25" Cerametallic Woofers with Faraday rings
ENCLOSURE MATERIAL MDF: (Internally Braced)
ENCLOSURE TYPE: Sealed
INPUTS Single aluminum binding posts
HEIGHT INCHES (MM): 14.15" (36.0 cm)
WIDTH INCHES (MM): 11.94" (30.3 cm)
DEPTH INCHES (MM): 7.63" (19.4 cm)
PRODUCT WEIGHT LBS (KG): 16.7lb (7.60kg)
ACCESSORIES: Rubber Feet (8)

Klipsch RP-1200SW Subwoofer Specification

Frequency Response: 16.5Hz - 138Hz +/- 3dB
Maximum Acoustic Output: 121dB
Amplifier Type: Class D with Analog Preamp Stage
Amplifier Power: 400W RMS / 800W Peak
Woofer: 12" Ultra Long Throw Cerametallic
Enclosure Material: MDF
Enclosure Type:Bass Reflex via Front-Firing Aerofoil Slot Port
Inputs: Dual RCA/LFE Line In, WA-2 Wireless Port
Height: 18.89" (48 cm)
Width: 17.00" (43.2 cm)
Depth: 25.92" (65.8 cm)
Weight: 68.6 lbs (31.1 kg)
Finish: Ebony Vinyl


Onkyo TX-NR7100 9.2-Channel AV Receiver Specification

Amplification
Number Of Channels:9
Stereo RMS Power (watts):100
THD in Stereo:0.08 %
Frequency Bandwidth (stereo):20-20k Hz
Minimum Impedance L/R: 4 ohms
Minimum Impedance Center:4 ohms
Minimum Impedance Surround:4 ohms

General Features
Bluetooth:Built-in
Apple AirPlay:AirPlay 2
Alexa-compatible:Yes
Google Assistant-compatible:Yes
Chromecast built-in:Yes
DTS Play-Fi:Yes
App Remote Control:Yes
On-Screen Display:Thru HDMI
Auto Speaker Calibration:DIRAC Live or AccuEQ

Multi-room Audio/Video
Powered Multi-room Audio Output:Yes
Preamp Multi-room Audio Output:Yes
Multi-room HDMI Output:Yes
Total Number of Zones: 3
Playback from Digital Audio Inputs:Yes
Playback from Streaming Sources:Yes

Surround Processing
Dolby Digital:DD, TrueHD, DD+
Dolby Atmos:Yes
Dolby Atmos Height Virtualization:Yes
DTS:DTS, HD, HDMA, ES, 96/24
DTS:X: Yes
DTS Virtual:X:Yes

Inputs
Audio-Video Inputs:7
Number of HDMI Inputs: 7
Component Video Inputs:1
Audio-only Inputs:2
Phono Input:1
Optical Digital Inputs:1
Coaxial Digital Inputs:1
Multi-Channel Analog Input:No
Ethernet Port:Yes
USB Connections:Y

Outputs
HDMI Monitor Outputs:2
Component Video Monitor Outputs:None
Optical Digital Outputs:None
Coaxial Digital Outputs:None
Subwoofer Outputs:2
Discrete Subwoofer Outputs:No
Multi-channel Preamp Output:No
Main Speaker Output Pairs:1
Speaker Terminals:Binding Posts

HDMI Features
HDMI Version:2.1
VRR (Variable Refresh Rate):Yes
ALLM (Auto Low Latency Mode):Yes
4K/120Hz-Capable Inputs:6
Audio Return Channel:eARC supported
Video Upscaling To: 4K and 8K
HDR (High Dynamic Range) Support
- HDR10
- HDR10+
- HLG
- Dolby Vision

Other Info
DAC Bit Depth: 24-bit
DAC Sample Rate: 192 kHz
FM Sensitivity: Not Given
Multibrand Remote Control: No
Learning Remote:No
Removable Power Cord:IEC 2-prong
Supports Wireless Rear Speakers:No
Width (inches):17.1875
Height (inches):6.8125
Depth (inches):16.1875
Weight (pounds):22.9

RP-8000F II Floor Standing Speaker Box Contents
- Speaker Pair
- Jumper wires
- Manual

Orders ship Sunday through Friday from our offices in Dubai, UAE.

In-stock products typically ship within 48 hours and should be expected to arrive in 3-4 business days. Orders outside of the UAE should be expected to arrive in 5-7 business days.

Pre-order and backorder products will state the approximate delivery timeline beside the Add To Cart button.

If you would like to place a custom order, chat with our specialists for a guided shopping experience. Once your order has been placed, a timeline will be provided depending on your order details.

- Free delivery within the UAE
- Shipping charges will be calculated upon checkout for orders outside of the UAE (Bahrain, Oman, Kuwait, Saudi Arabia & Qatar).
- Taxes and duties are calculated according to the applicable laws of the state or country an item is shipped to and are the customer's responsibility.

For additional information on shipping and our exchange & return policy visit our help center.

Installation charges are applicable and can be paid upon delivery for our clients based in Dubai.

- Installation Charges: AED 450 Per Hour
- Speaker Cables: AED 32 Per Meter
- Trunking: AED 10 Per Meter

For clients based outside of the UAE, please contact our specialists and we will share an estimate based on your requirements.
