Effortless Output from High-Excursion 15-inch SVS Driver
The most formidable, sealed cabinet subwoofer driver in its class features all-new dual edge wound voice coils, suspension, basket, and extreme-excursion surround to achieve visceral sound pressure levels with pinpoint accuracy.
Lightweight and rigid 15-inch glass fiber composite cone with optimal stiffness-to-mass ratio for maximum efficiency and acoustic linearity
Two-piece toroidal ferrite electromagnetic motor generates massive force with precise control, remaining authoritative yet detailed and controlled
Extreme-excursion catenary SBR surround maintains pure, long-throw pistonic driver motion

Unerring Control from Dual Edge Wound Voice Coils
Precision engineered dual edge wound voice coils ensure stable transfer of electro-magnetic current to the 15-inch driver for authoritative output and exacting driver control.
6-layer bi-filar dual voice coils conduct the massive power from the dual-mono amplifier to the motor with maximum thermal efficiency, resulting in effortless acoustic output
Flat edge wound aluminum voice coil wire maximizes density for optimal magnetic field strength and thermal capacity

Dual Mono STA-2000D Amplifier Design with Discrete MOSFET Output
A revolutionary new amplifier platform with technology adapted from the flagship SVS subwoofers. Rated conservatively at 2,000 Watts Continuous, 5,000+ Watts Peak, the innovative design maximizes driver potential with refined behavior and pristine response at any volume.
High Current Output of Fully Discrete MOSFET transistors with efficiency of Class D Amplifier generates immense sonic force with precise control for outstanding real-world performance at all volumes.
Each monoblock amp drives one of the dual voice coils within the motor to assert pinpoint control and maximize power fed to the driver
Eight 60 Amp 200 Volt MOSFET transistors deliver extreme high current for reference-level output with maximum efficiency

Performance Enhancing Switch Mode Power Supply
Regardless of the power coming out of your household circuit, the SB-5000 R|Evolution always maintains peak performance and remains impervious to voltage fluctuations.

Onboard AC line conditioner filters and stabilizes incoming voltage, corrects waveform distortions, and eliminates electromagnetic and radio interferences to optimize signal quality and audio performance
Ensures clean and consistent 160V rail voltage and optimal power delivery from a standard 15-amp home circuit
Power-Factor-Correction (PFC) time aligns the AC voltage to the AC current resulting in less heat, greater efficiency, reliable peak power output, and the ability to maintain rated power over a wide-range of voltages
FEA optimized convection cooling system has no exterior heatsinks, an extraordinary feat for such a powerful amplifier

Extreme Subwoofer Intelligence - 295 MHz Analog Devices DSP
Orchestrating the cutting-edge amplifier, motor, and driver ecosystem is the most sophisticated DSP ever deployed in a home audio subwoofer.
Accurately shapes in-room frequency response with absolute precision for faithful signal reproduction
Monitors every function of the amplifier to stabilize AC voltage delivery to the power supply to maintain consistent peak output
Multi-point thermal, voltage, and current monitoring systems ensures maximum output and efficiency
Advanced digital audio processing and DACs (Digital-to-Analog Converters) with 120 dB Signal-to-Noise Ratio provide greater headroom, lower noise, and pristine fidelity

SVS Subwoofer Smartphone Control App
Convenient subwoofer tuning and control from the comfort of your favorite seat. Works via Bluetooth with Apple iOS, Google Android, and Amazon Fire platforms.
Controls for volume, low pass filter, phase, polarity, six parametric equalizers, room gain compensation, tuning modes, power management settings, and more.
Includes three convenient memory presets for fast and easy system adjustments to match your listening preferences – music, movies, night mode, and more
Amplifier Rear Panel OLED and control interface provide fast and direct control of the most important features and includes a convenient “Display Flip” function.

SVS Subwoofer Auto EQ Room Correction
Achieves pristine fidelity by resolving acoustic issues caused by your room in a few easy steps.
Automatically tunes subwoofer output using your smartphone microphone or an external microphone and the SVS subwoofer app
Applies equalization, capitalizes on available room gain, and shapes in-room frequency response at the main listening positions for optimal in-room performance
Will be available soon via an over-the-air SVS Subwoofer Control App update

Acoustically Inert, Rigidly Braced Sealed Box Cabinet Design
Sealed cabinet design results in tighter, more musical bass and makes it significantly more compact than ported box subwoofers with similar specs.
Double-thick 2-inch MDF front baffle and rigid internal bracing to support the massive drive unit and to ensure an acoustically inert environment.
Highly reinforced internal design and acoustic insulation eliminates all coloration or resonance from the cabinet, even when the deepest low frequencies are played at reference volume.
Protective non-resonant extra-thick ABS grille frame with fabric mesh cover shields driver to prevent damage while ensuring longevity.
Custom elastomer feet reduce noise artifacts within a room.

-17Hz to 280Hz +/- 3dB
-Expect 2-3Hz deeper extension in small to mid-size rooms.
-Roll-off slope specifically optimized to take maximum advantage of available room gain.
-2-meter ground plane away from reflective structures (quasi-anechoic).

Subwoofer Specifications

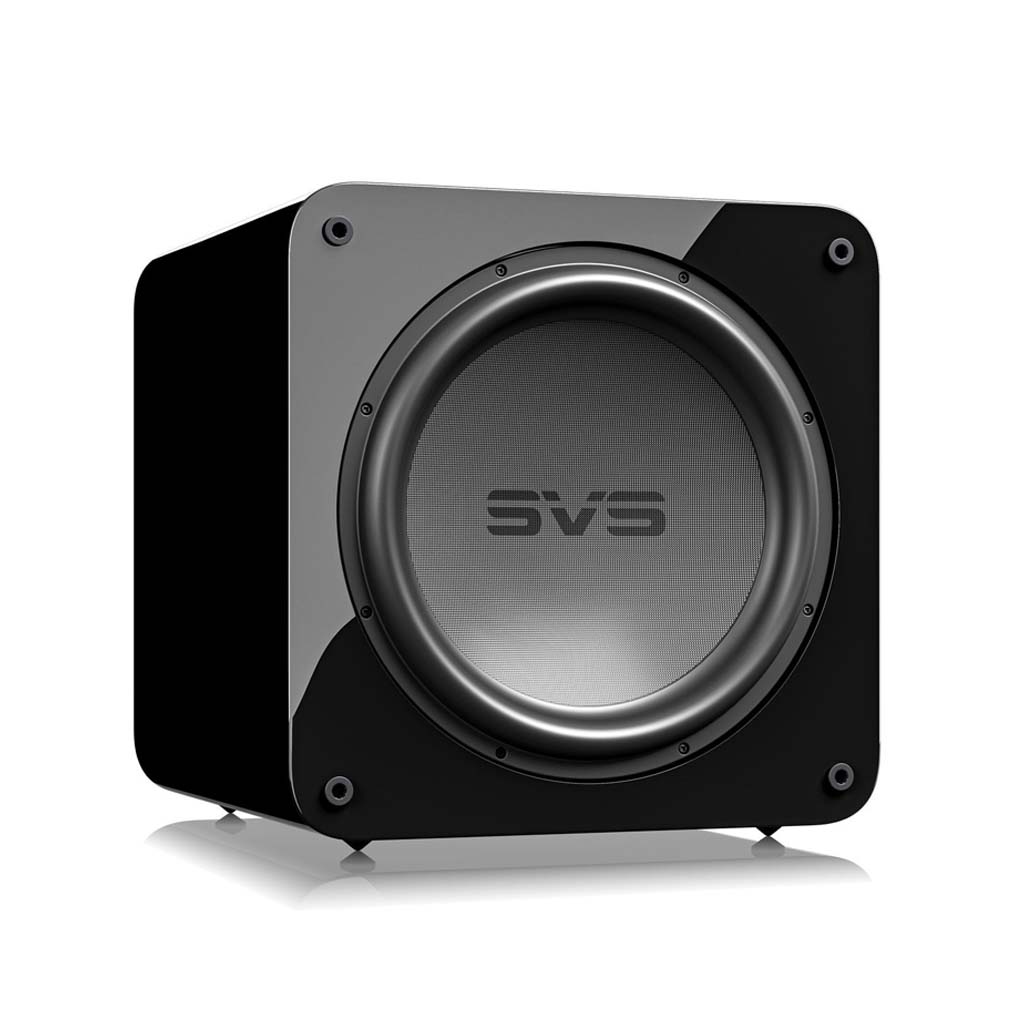

-Front-firing 15-inch high-excursion driver
-Robust Medium Density Fiberboard (MDF) construction with internal bracing for resonance-free performance at high drive levels

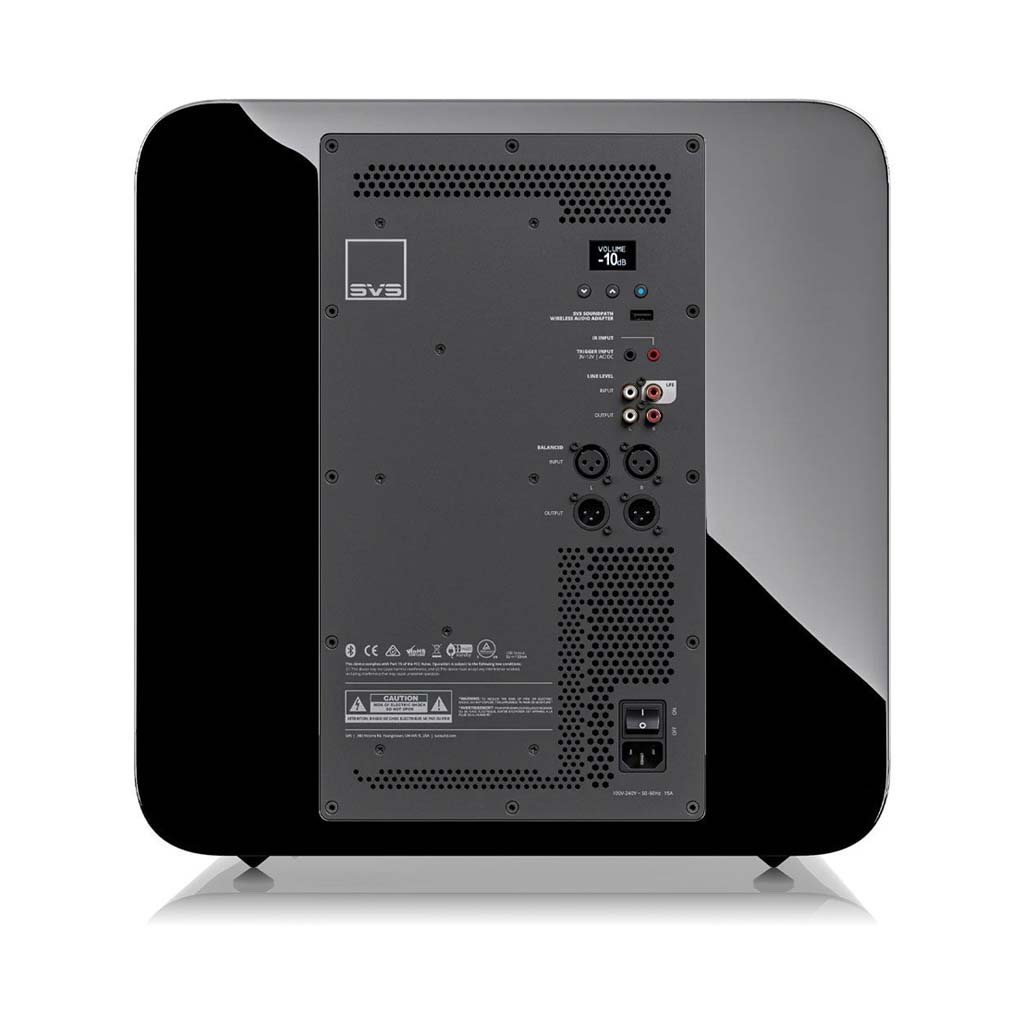

-Rear panel OLED display and control interface provide fast, direct access to key features, including a convenient “Display Flip” function

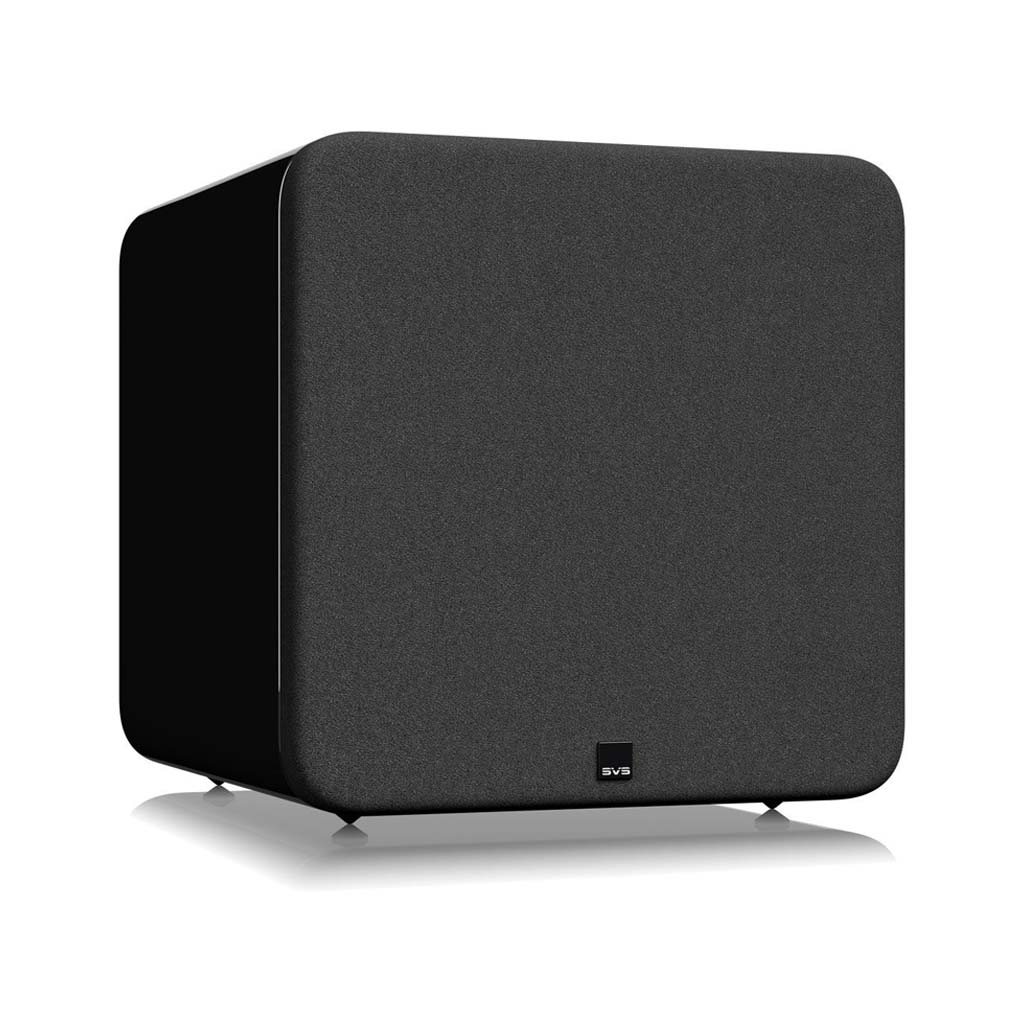

-Protective, non-resonant extra-thick ABS grille frame with fabric mesh cover shields the driver to prevent damage and ensure longevity
-Screw-in Iso-elastomer feet reduce noise artifacts and improve stability
-With grille: 18.3” (465 mm) H × 17.8” (453 mm) W × 19.5” (495 mm) D
-Without grille: 18.3” (465 mm) H × 17.8” (453 mm) W × 18.4” (468 mm) D
-Shipped: 23.2” (588 mm) H × 23.5” (598 mm) W × 28.0” (712 mm) D
-Weight:Unboxed: 102.1 lbs (46.3 kg)
-Shipped: 120.7 lbs (54.8 kg)

Driver Specifications
-All-new proprietary 15-inch long-throw driver with high-precision tuned overhung motor configuration
-Woofer weight: 46.3 lbs (21 kg) with 38.4 lbs (17.46 kg) motor
-46.32 mm Xmax and 77.44 mm Xmech precision aligned excursion
-3” diameter voice coil with high-current 6-layer bifilar flat edge wound aluminum wire windings
-Dual voice coil design captures power delivery from dual-mono amplifier outputs into a single voice coil for maximum acoustic output
-High-temperature glass-fiber composite former/bobbing
-Two-piece high-grade oversized Y30 Ferrite magnet motor producing effortless on-demand driving force for subtle and powerful bass thrills
-Copper shorting sleeve around T-yoke reduces gap inductance and lowers distortion
-Dual 24-strand silver-plated copper-alloy and Nomex composite high-temperature leads woven through the spider provide pristine electrical connection from amplifiers to voice coils
-Precision machined, narrow tolerance top-plate and oversized T-yoke with integrated pole-piece extension made from zinc-plated low carbon 1010 steel for optimal magnetics and thermal capacity
-Dual Nomex-composite extreme excursion linear suspension spiders
-Proprietary injection-molded extreme-excursion parabolic NBR rubber surround ensures flawless pistonic motion for pinpoint control and accuracy without distortion at highest drive levels
-Premium glass-fiber laminated dustcap and vented composite cone sub-structure with exceptional stiffness-to-mass ratio ensures a light, rigid, and neutral radiating surface, able to move massive amounts of air with crisp precision
-High-density 15” powder-coated cast aluminum basket, FEA optimized for maximum rigidity, tensile strength, and energy transference
-Nickel-plated high-tension spring terminals provide secure connections

Amplifier Specifications
-Massively powerful 2,000-watt continuous Class D design with over 5,000 watts peak power
-High-resolution 295 MHz Analog Devices Audio DSP with double-precision 56-bit filtering — over 5× the processing power of previous subwoofers, delivering the most advanced subwoofer processing for perfect audio reproduction
-DSP monitors every amplifier function to ensure precisely regulated clean voltage to/from the switch mode power supply and pushes maximum current to the driver’s voice coils
-Continuous running of complex power management algorithms with multi-point thermal, voltage, and current monitoring to optimize AC voltage delivery for peak performance and maximum efficiency
-Advanced digital audio processing and DACs (Digital-to-Analog Converters) with 120 dB Signal-to-Noise Ratio, providing greater headroom, lower noise, and flawless fidelity
-Dual-mono discrete Class D amplifiers powered by eight massive 60A 200V MOSFETs, resulting in lower EMI, highest efficiency, and effortless power delivery to each voice coil for pristine SPLs and low-frequency output beyond reference listening levels
-New Switch Mode Power Supply (SMPS) with two-stage 100V-240V full-range active Power Factor Correction (PFC), pre-regulating mains to a stable 390V DC regardless of voltage quality, ensuring consistent 160V rail voltage for dual-mono amplifiers
-Power-Factor-Correction (PFC) time aligns AC voltage and current, reducing heat, increasing efficiency, peak power output, and maintaining rated power over a wide AC voltage range
-Onboard AC line conditioner filters and stabilizes incoming voltage, corrects waveform distortions, and eliminates electromagnetic and radio interference to optimize signal quality and audio performance
-New convective cooling plate design pulls cool air through vents at the bottom, flowing over amplifier components and internal heat sinks, eliminating the need for external heatsinks
-Customer EQ and DSP limiter settings tailored for the 5000 series, enabling the subwoofer to control room acoustics with accurate, heart-pounding, tuned bass
-Inputs:
Unbalanced RCA with 10 kΩ input impedance (compatible with consumer/professional audio up to 4 Vrms inputs)
Balanced XLR with 14 kΩ input impedance (compatible with consumer/professional audio up to 4 Vrms / +14 dBu inputs)
-OLED control interface for easy access to the most important features
-USB powers the SVS SoundPath Wireless Audio Adapter (sold separately), eliminating the need for cable runs from source to subwoofer
-Auto/On and Trigger options via app for convenient installation (3.5mm trigger input, 3–12V AC/DC)
-3.5mm IR input for easy integration with control systems
-Green low standby power consumption: 0.5 watts
-RoHS compliant, lead-free construction with worldwide safety certifications

SVS App Features
-Compatible with Apple iOS, Google Android, and Amazon Fire platforms, the industry-leading SVS Subwoofer Control app offers convenient and intuitive management of all subwoofer controls.
-The Analog Devices DSP supports a comprehensive menu of functions, including:
-Volume control
-Fully adjustable low pass filter
-Phase and polarity adjustment
-Six PEQs (parametric equalizers)
-Room gain compensation
-Tuning modes
-Power management settings
-And more
-Includes three memory presets for quick and easy system adjustments to suit listener preferences.
-Subwoofer Auto Room Equalization (Coming Soon): Uses your mobile device’s built-in microphone or an accessory microphone to measure room acoustics and automatically create precise equalization filters, optimizing subwoofer and room performance at your listening position.
-Unique bidirectional feedback displays adjustments in real time on both the app and the subwoofer interface.
-Easy-to-follow tutorial guides users clearly through all app functions.
