SR-009D Electrostatic Earspeaker Description

The Legend Returns
The SR-009, the origin of STAX’s current high-end models, has made a triumphant return. After its production ceased with the arrival of a new flagship, countless requests from fans worldwide have brought this legendary earspeaker back. The SR-009D is the return of the iconic model that led the high-end headphone culture for a long time, now available at a more accessible price with updated features, making it the perfect gateway to the world of highend electrostatic audio.

Advanced Technology for Unparalleled Sound
At the core of the SR-009D is the MLER (Multi-Layer-Electrode) technology, a groundbreaking innovation that originated with the SR-009. This technology utilizes a fixed electrode formed by unifying three stainless steel plates at the atomic level through thermal diffusion bonding, without the use of any adhesives.
This process results in a fixed electrode with exceptional planarity, low resonance, and high sound wave transmission, delivering a sound that is both incredibly detailed and transparent, setting a new standard for audio reproduction.

Enhanced Usability and Modern Design
The SR-009D features a detachable and replaceable cable structure, a standard in the current STAX lineup, which enhances usability and allows for future upgrades and easy maintenance.
The newly developed injection-molded unit case reduces the overall weight of the earspeaker, ensuring a comfortable listening experience even for extended periods. The headpad features a 10-step click mechanism, allowing for a perfect fit for a wide range of head shapes. The body color, cable material, and unit case have also been updated from the original model, combining legendary performance with modern convenience.

SRM-500T Headphone Amplifier Description

SR-009D Electrostatic Earspeaker Features

MLER (Multi-Layer-Electrode) Technology: Offers ultra-low resonance and delivers pristine, transparent sound for unmatched audio fidelity.
Detachable Cable Design: Improves convenience, usability, and allows for easy future upgrades to accommodate evolving listening needs.
Lightweight Construction: Incorporates a newly developed injection-moulded casing, reducing weight for enhanced long-term comfort during use.

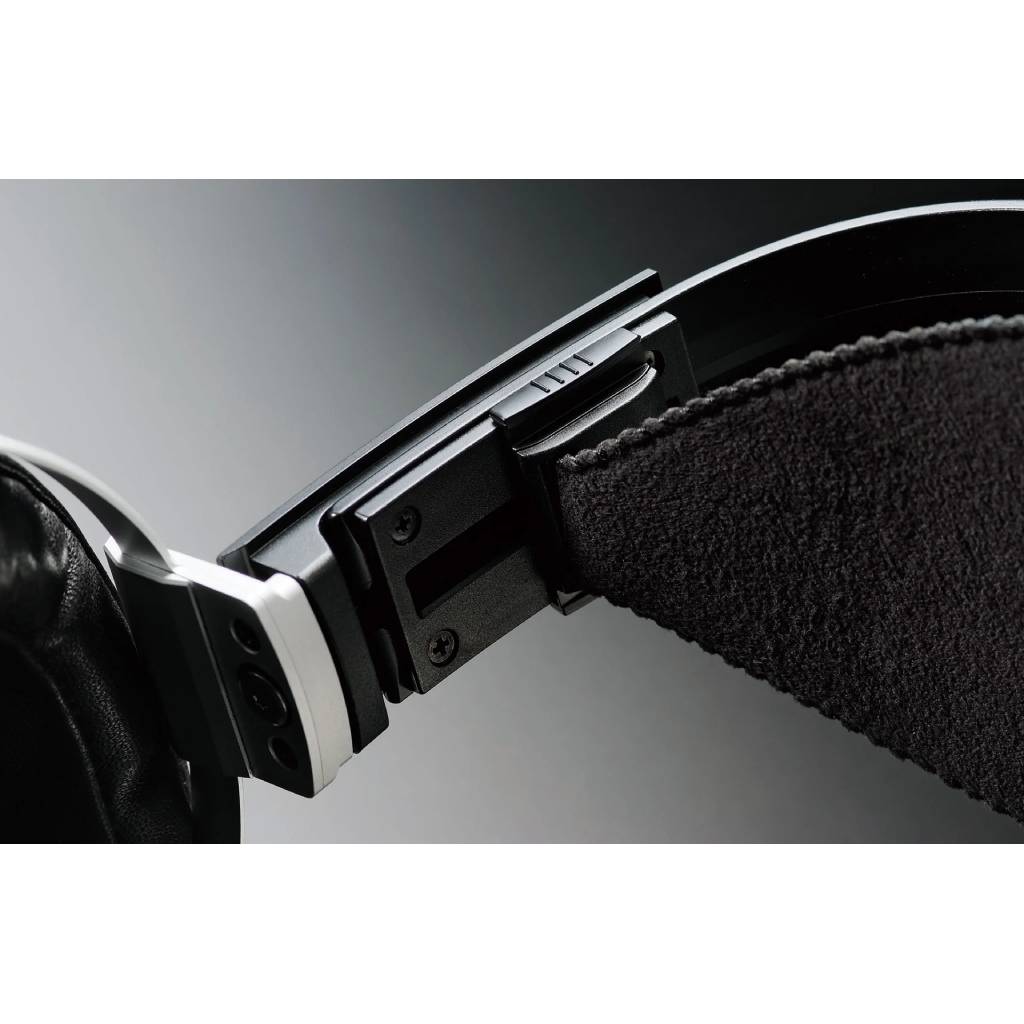

Adjustable Headband: Features a 10-step click mechanism, ensuring a customizable fit for all head shapes and sizes.
Premium Materials: Designed with genuine sheep leather earpads, providing a luxurious feel and exceptional comfort for an immersive listening experience.
Aluminium Carrying Case : lightweight, durable, and secure protection against impacts, weather, dust, heat, and wear ensuring the long-term preservation of headphones.

SRM-500T Headphone Amplifier Features
- FET Input + vacuum tube output hybrid DC amplification
- Newly Designed Vacuum Tube Output Stage
- Custom-Made Low Noise Dual FETs
- Pair of 6FQ7/6CG7 pre-installed Vacuum Tubes
- Pair of RCA input terminals
- Pair of XLR 3-pin input terminals
- RCA parallel output terminals

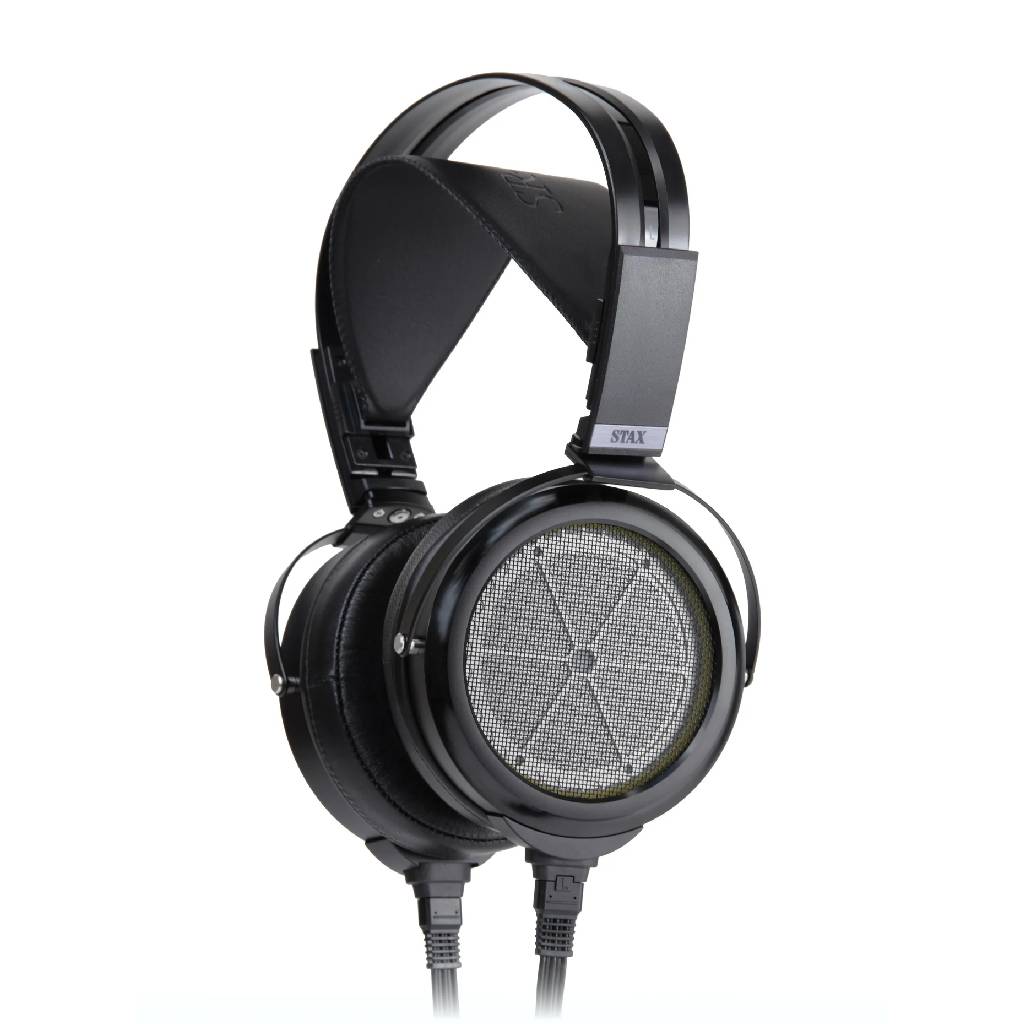

SR-009D Electrostatic Earspeaker Specification

Type : Push-pull electrostatic sound element, open-air type enclosure
Sound Element Shape : Large round shape
Frequency Response : 5 - 42,000Hz
Electrostatic Capacitance : 110pF
Impedance : 145kΩ
Sound Pressure Sensitivity : 101dB
Bias Voltage : 580V DC
Attached Cable Conductor : OFC
Cable : Parallel 6-strand, low-capacity wide cable
Cable Length : 2.5m
Earpad : Genuine sheep leather, artificial leather (surrounding portion)
Weight : 452g (earspeaker)
Origin : Made in Japan

SRM-500T Headphone Amplifier Specification
Type:FET input + vacuum tube output hybrid DC amplification driver unit
Vacuum tube: 6FQ7/6CG7
Frequency response: DC - 90kHz (with one SR-L500 MK2)
Gain: 60dB
Harmonic distortion: 0.01% or less (1kHz/100Vrms output)
Input impedance: 50kΩ (RCA), 50kΩx 2 (XLR)
Maximum output voltage: 300Vrms (1kHz)
Bias voltage: DC 580V
Operating temperature/humidity: 0 to 35 degrees C/less than 90% (non condensing)
Input terminal: RCA x 1, XLR x 1(mutual exclusion input)
Output: RCA parallel output
Power consumption: 38W
Dimension: 195 (W) x 102 (H) x 376 (D) mm (maximum protruding portion included)
Weight: 3.4kg
