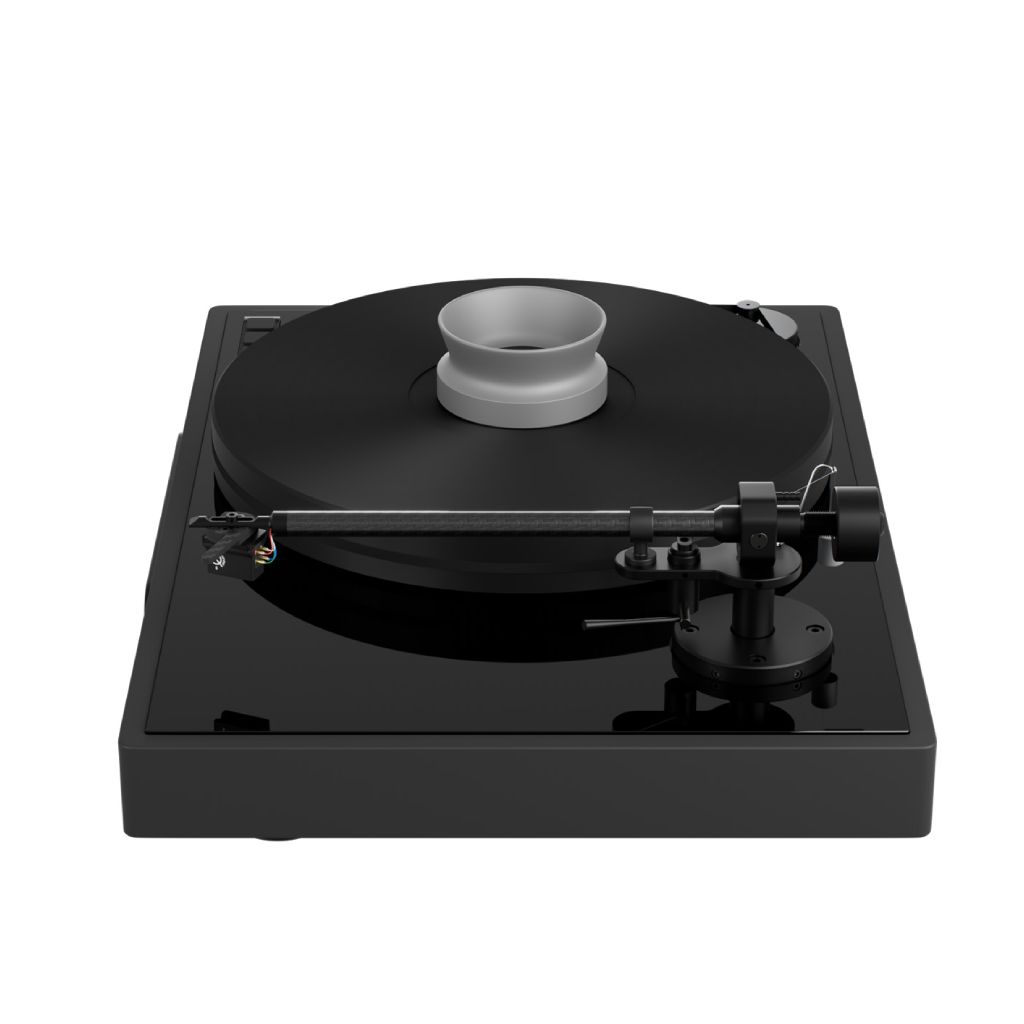

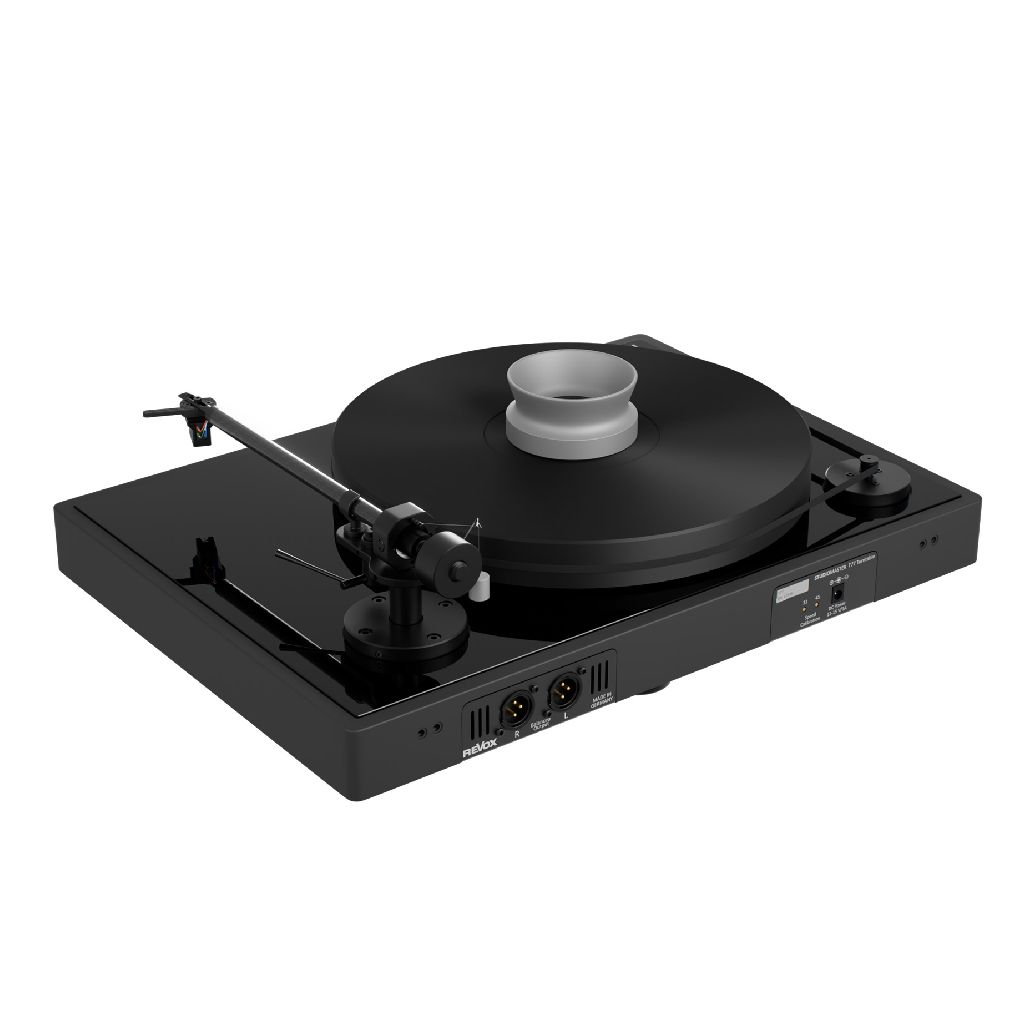

The Revox T77 Turntable is a high-end turntable for home and studio systems. It features an integrated MC phono preamplifier with extensive customization options. With its built-in XLR output, the new Revox T77 is ideally equipped for perfect playback – in both private and professional settings. It is manufactured in Germany from the highest quality materials and also stands out thanks to its elegant appearance.

One highlight of the T77 turntable is its unique, integrated MC phono preamplifier. The integration of the preamplifier enables the best and shortest connection between the cartridge and preamplifier, resulting in the highest signal quality.

The music signal is output from the T77 in the form of an analog, balanced studio format via XLR connectors. If there are no XLR inputs on the connected device, the audio signal can be output unbalanced using the XLR-RCA adapters included in the scope of delivery.

The T77 outputs the music signal in the form of an analog, balanced studio format via XLR connectors. If the connected device does not have XLR inputs, the audio signal can be output unbalanced using the XLR-RCA adapters included in the scope of delivery.

Absolute speed accuracy is essential to ensure the best sound quality. To achieve this, the T77 features high-precision electronic PLL speed control via a contactless optical sensor.

The T77 turntable comes with the high-quality Ortofon Quintet Black S MC cartridge: The Quintet Black S is equipped with a Nude Shibata diamond, which is considered one of the best scanning profiles available, mounted on a high-performance sapphire cantilever.

The T77 is also equipped with the Revox record weight in NAB adapter design (silver), which ensures that the record sits securely on the turntable. The turntable of the T77 is made of black POM (polyoxymethylene), so no additional mat is required.

Another highlight is the high-end bFly PolarX absorber feet. The built-in copper conductor makes the sound even more natural.

The tonearm is made of high-quality metals, and the tonearm tube is made of carbon fiber. The tonearm cable is soldered by hand directly to the preamplifier.

It is operated using high-quality solid aluminum buttons.

The T77 turntable is visually matched to the design of the Revox B77 MK III tape machine, making it the perfect complement.

The Revox T77 turntable is the ideal playback device for any high-quality music system.

- Audiophile turntable
- studio sound quality
- Ortofon Quintet Black S MC cartridge
- Integrated MC phono preamplifier with extensive customization options
- XLR connectors, balanced audio outputs, studio level
- Switch for studio and home systems via DIL switch
- Electronic speed control; Neutrik XLR-RCA adapter (included)
- Anti-skating weight (silver)
- Revox record weight in NAB adapter look (silver); High-end bFly PolarX absorber feet
- Manual metal tonearm, carbon fiber tonearm tube
- Manually operated tonearm lift with oil damper
- Easy operation via full aluminum buttons
- Solid acrylic glass protective cover

Dimensions -
weight (kg):10.5
depth (mm):337
height (mm):160
width (mm):470

Scope of Delivery -
Ortofon Black cartridge, Plate weight in NAB adapter form, Neutrik XLR/RCA Adapter , PolarX high-end absorber feet by bfly

Impedance matching -
6 levels: 47 Ω, 100 Ω, 220 Ω, 470 Ω, 1 kΩ, 2 kΩ

Input sensitivity -
4 levels: 150 μV, 300 μV, 600 μV, 1,2 mV

Speed -
33 / 45 revolutions per minute

Speed variation - < 0,1%

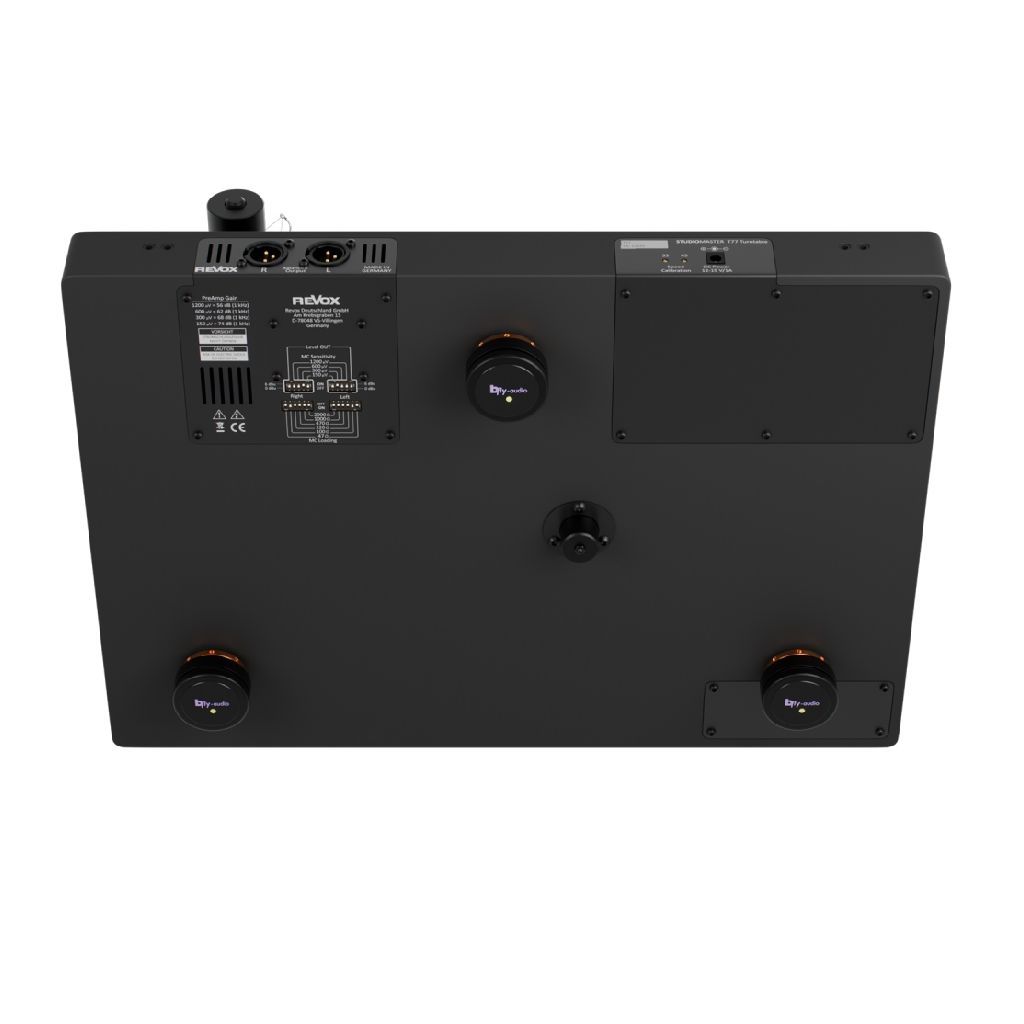

Input/output - 1x XLR balanced output

Outer dimensions - 470 x 337 x 160 mm (WxDxH) without sockets

Weight - 10,5 kg total, 2,85 kg turntable POM, 0.21 kg inner platter aluminium
