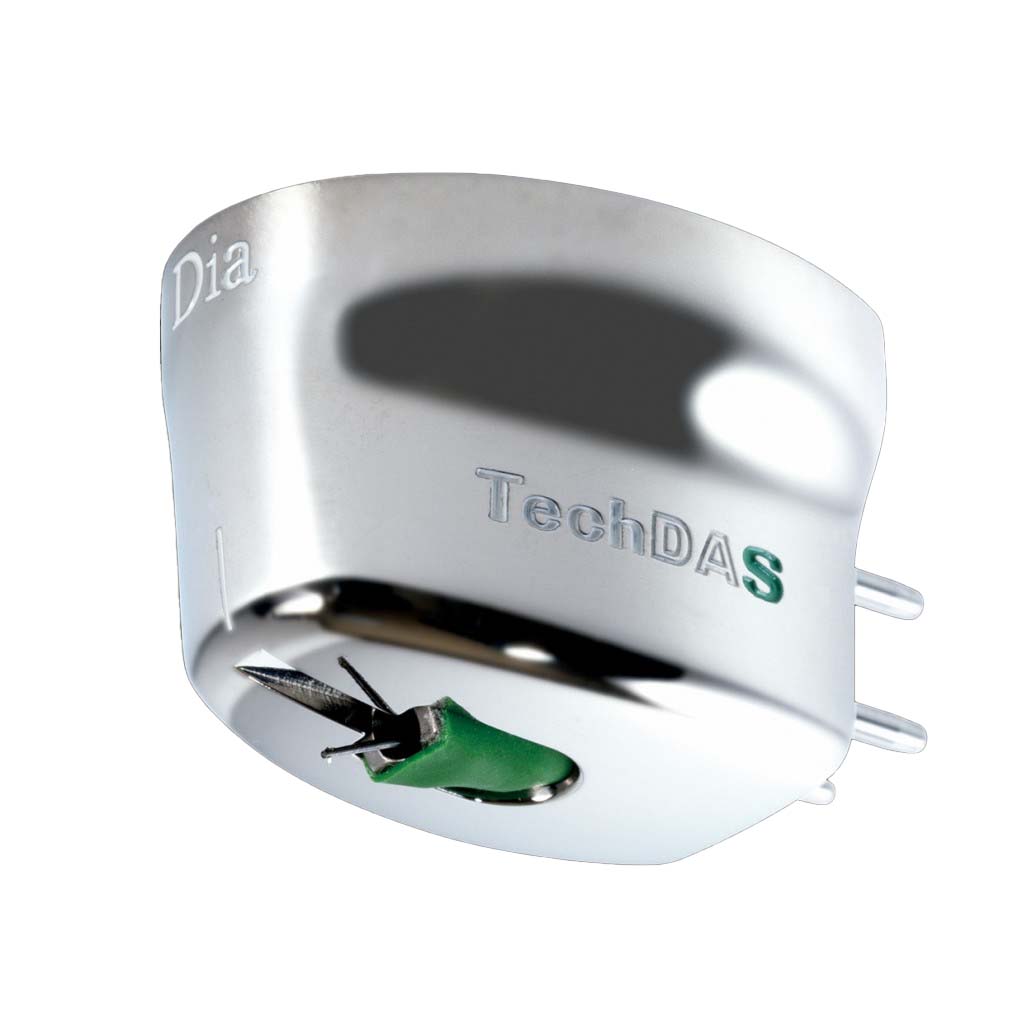

Diamond is renowned as the ultimate material for a cantilever. Leveraging diamond’s sonic transmission speed, the TDC01 Dia cartridge delivers every detail embedded in the groove. From the most subtle nuance to the most powerful slam, it achieves an unprecedented level of analog playback.

The TDC01 Dia features a tapered pipe diamond cantilever. Crafting a tapered pipe from diamond required precision and innovation. After three years of research and development, this was achieved using state-of-the-art laser processing technology.

Major features
• The world’s first tapered pipe diamond cantilever in the industry.
• The tapered pipe shape leads to extremely high rigidity and low mass, with highly controlled flexing. This ensures enhanced tracking ability, enabling lively and three-dimensional sound reproduction.
• The signature TechDAS egg-shaped housing, machined from solid titanium and treated for surface hardening, provides a robust platform to capture all the energy from the record groove.
• A high sound-to-noise ratio delivers outstanding details and clarity.

Type:
Moving Coil (MC)
Frequency response:10 – 50,000 Hz
Output voltage: 0.45mV (1kHz)
Internal impedance:1.4 ohm
Recommended load impedance:100 – 200 ohm
Tracking force recommended:2.0 – 2.5g
Cartridge weight:17g
Cantilever:Diamond (tapered pipe)
Stylus tip:Semi-line contact (3μm x 30μm)
Housing:Titanium with special processed hard surface treatment
Housing base:Titanium with special processed hard surface treatment + damping treatment
Channel balance:0.5dB (1kHz)
Channel separation:over 30dB (1kHz)
