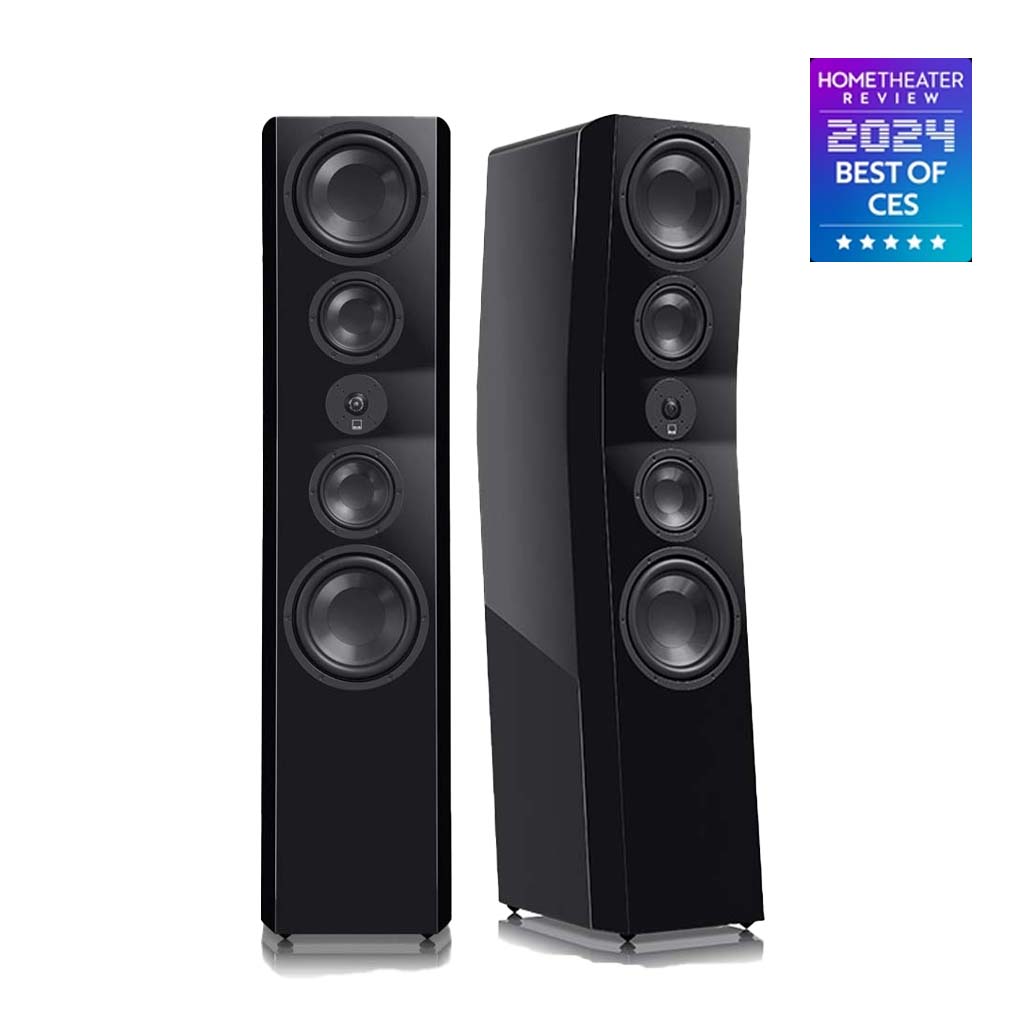

The SVS Ultra Evolution Pinnacle Speaker is the flagship floorstanding loudspeaker, engineered for unparalleled full-range audio performance. It features a sophisticated 3-way, 7-driver design, including a 1-inch Diamond Coated Aluminum Dome Tweeter, dual 5.25-inch composite glass-fiber midranges, and quad 8-inch glass-fiber woofers in a Force-Balanced Opposed Array. This innovative configuration delivers immense, distortion-free bass down to 24 Hz, while the diamond-coated tweeter provides airy highs up to 40 kHz.

Its Acoustically Centered Time Alignment Cabinet Architecture ensures pinpoint imaging and a coherent soundstage by aligning all drivers on a precise vertical plane. The robust MDF cabinet with extensive bracing eliminates resonances. Dual 3-inch rear ports enhance bass extension. Weighing 96.7 lbs (50.2 inches H×11.81 inches W×18.14 inches D), the Pinnacle offers reference-grade dynamics, clarity, and immersion, making it the ultimate choice for discerning audiophiles and demanding home theater systems in large rooms.

Audiophile Refinement. Breathtaking Home Theater Dynamics.
Design innovations in the Prime Pinnacle speaker harness qualities both discerning audiophiles and home theater fans will delight over. All-new driver array is optimized for massive dynamics and incredibly refined output while the cost-no-object cabinet design and materials, sophisticated components, and inspired acoustic engineering combine for a floor-standing speaker that stands alone at its price and well beyond.

All-New 5.25" Midrange Driver with Composite Glass-Fiber Cone
Delivers pinpoint accuracy and broad soundstage for more immersive audio experiences. The majority of audio content in music and movies is present in the midrange frequencies so it’s imperative to have a driver capable of producing slam and impact as well as subtle details with tonal accuracy. Prime Pinnacle’s midrange borrows design elements from the reference Ultra Series to deliver uncompromised audio performance at all drive levels.

Premium 1” Aluminum Dome Tweeter
Renders crystal clear highs with lifelike realism even at reference volume. Light, efficient, and impervious to distortion, the tweeter’s airy’ presentation effortlessly reveals every sonic detail with pristine clarity and unerring accuracy. The FEA-optimized diffuser ensures broad dispersion for a wide and convincing soundstage with a pinpoint on- and off-axis frequency response so everyone in your room is treated with the same amazing audio experience.

Trio of 6.5” High-Performance Woofers
Effortless low-frequency output and impressive deep bass extension from three 6.5” woofers lay the sonic foundation for all audio content. Engineered to convey the full thrill and excitement of cinematic blockbusters yet refined enough to handle the pluck of a bass guitar string and subtlest musical details with convincing realism, Prime Pinnacle delivers an amazing full-range listening experience with all audio content. By using three smaller woofers, each with its own 2-inch port, the new floor-standing speaker effortlessly conveys low-frequency output while maintaining a slim profile that fits in any room or system.

Three Unique Port Tuning Frequencies
Individual tuning frequencies and separate sub-enclosures for the trio of woofers epitomize the no-compromise design approach taken with Prime Pinnacle. This design ensures all drivers blend seamlessly together so you get silky-smooth transitions from the midrange driver to the woofers as well as accurate frequency response, amazing refinement, and crisp speed in transients; all without sacrificing deep, room-energizing bass.

SVS SoundMatch 3-Way Crossover
Creates an expansive soundstage with accurate frequency response and precise imaging for the largest “sweet spot” possible. The 3-way crossover is uniquely tuned so each driver, from tweeter to midrange and midrange to woofers, blends seamlessly with each other while offering excellent on and off-axis frequency response and pinpoint spatial imaging for the most convincing audio experience possible. The crossover’s topology and architecture are consistent with all SVS speakers so Prime Pinnacle is timbre-matched to integrate with any speaker from the acclaimed Prime or Ultra Series for the ultimate flexibility when building a system.

Sonically Inert and Rigidly Braced Cabinet
Four self-contained, acoustically tuned internal chambers eliminate any potential for resonances or sonic artifacts from the enclosure, resulting in pristine audio playback across the frequency spectrum. Tapered edges on the Prime Pinnacle speaker’s front baffle, known as chamfers, minimize edge diffraction for a clear and precise soundstage while features like shorting rings and tweeter diffusers provide acoustic enhancements with modern, high-end visual appeal.

Lifestyle-Friendly Footprint
Fits seamlessly in any room layout or décor. Slim enough to place next to furniture or near a wall, yet spacious enough to produce effortless output and reference sound quality, Prime Pinnacle delivers jaw-dropping performances in stereo and home theater systems from a classically handsome tower speaker design.

Frequency Response / Acoustic Data:
Frequency Response: 24Hz to 40kHz (+/-3 dB)
Nominal Impedance: 6 ohms
Sensitivity: 88dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)
Recommended amplifier power: 20 – 300 watts

Speaker Specs:
- Floor-standing Tower Loudspeaker
- Piano gloss black, piano gloss white, real black oak veneer finish options
- Dual gold-plated 5-way binding posts
- Dual 3” wide-flared rear-firing ports
- Cloth grille with magnetic retention system
- Elastomer screw-in feet – adjustable for level
- Spiked metal screw-in feet included – adjustable for level

Cabinet Dimensions: 49.61” (H) x 11.81” (W) x 18.14” (D) / 1260mm (H) x 300mm (W) x 460.7mm (D)
Overall Dimensions: 50.2” (H) x 11.81” (W) x 18.14” (D) / 1275mm (H) x 300mm (W) x 460.7mm (D) (includes grille, feet, and binding posts)
Shipped Dimensions: 54.6” (H) x 16.3” (W) x 22.6” (D) / 1387mm (H) x 415mm (W) x 575mm (D)
Weight Packaged: 110.8 pounds / 50.3 kgs
Weight Unboxed: 96.7 pounds / 43.9 kgs

Driver Specs:
- 1” Diamond Coated Tweeter
- FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity.
- Cutting-edge vapor-deposition grows a hyper-rigid diamond-like coating on an aircraft-grade aluminum dome, pushing high-frequency extension further beyond human hearing, and delivering best-in-class fidelity, linearity, and transient response.
- Silver tinsel leads for optimal signal transfer and power handling.

5.25” Midrange Drivers
- Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband.
- Precision-cast aluminum-alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
- Vented Kapton voice coil former is exceptionally lightweight for excellent dynamics and transient response.

8” Woofers:
- Long stroke motor and suspension for high output.
- Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband.
- Precision-cast aluminum alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
- Vented aluminum voice coil former to maximize thermal control while minimizing air compression artifacts at high drive levels.

Crossover & Cabinet Specs:
Crossover:
- 3-way crossover with premium-grade capacitors, inductors, resistors and heavy-trace printed circuit board
- Tweeter-to-Midrange crossover: 1.8 kHz
- Midrange-to-woofer crossover: 140 Hz

Cabinet:
- Acoustically Centered Time Alignment architecture.
- Acoustically-centered architecture orients the mid-range and woofer arrays in rotational-symmetry around the tweeter, ensuring that low, mid, and high-frequencies emanate from the same effective point in space, creating a coherent, integrated, faithful acoustic image.
- Time-aligned cabinet geometry introduces microsecond-level time delays between the drivers, ensuring that the effective-acoustic-center of each driver is equidistant from the listener.The result is improved linearity and directionality throughout the crossover frequencies, and a more accurate soundstage.
- Quad 8” woofers in Force-Balanced Opposed Array energize any room with deep, accurate, evenly distributed bass, while contributing a net-zero vibration force to the cabinet and other components.
- Dual 5.25” midrange drivers share a dedicated acoustic-suspension enclosure, symmetrical around the tweeter.
- Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve on-axis and off-axis high-frequency response
- Extra-thick 1” (25mm) driver baffles ensure a rigid, resonance-free mounting for all drivers.
- FEA-optimized ¾” (18mm) cabinet construction, extensive bracing, and acoustic insulation eliminate acoustic and structural resonances, ensuring an inert enclosure and an uncolored response, even at the highest drive levels.
