dCS Audio

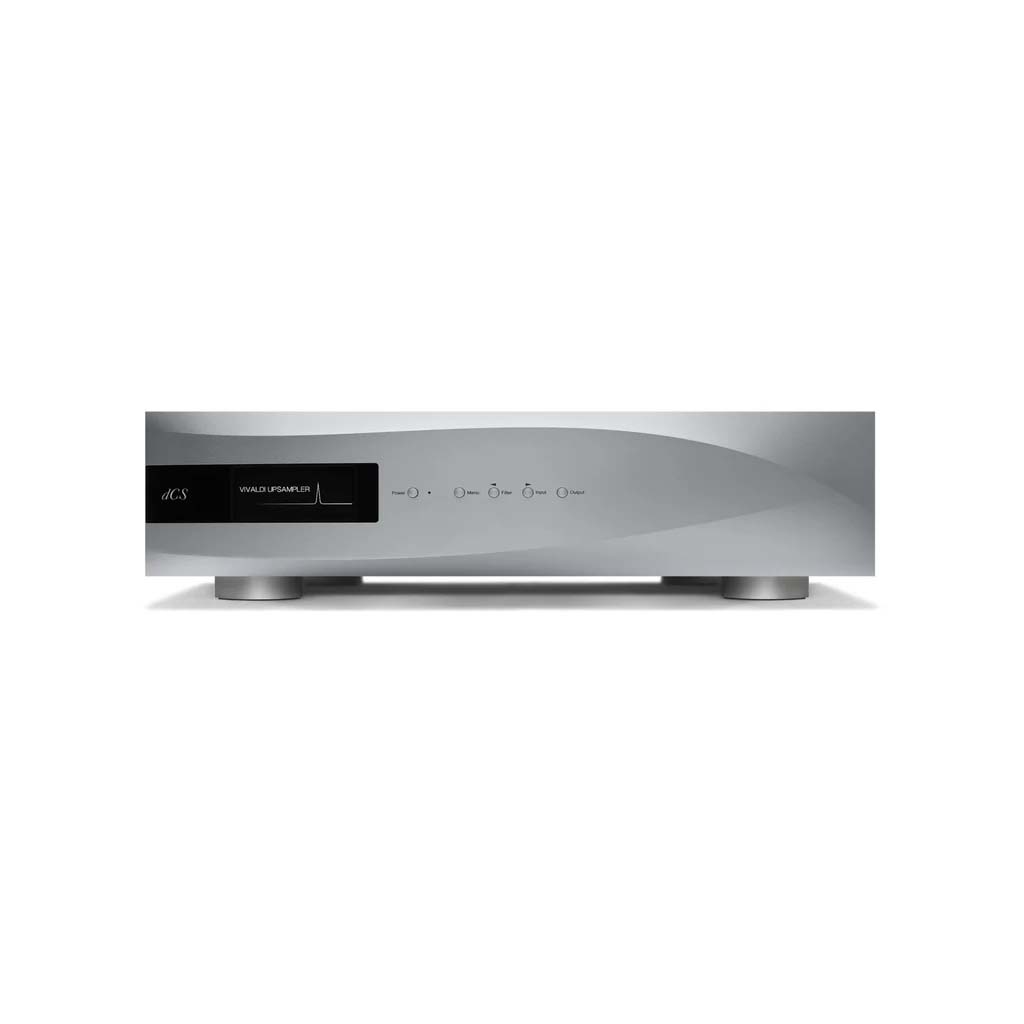

Vivaldi Upsampler

AED 151,725 (Inc. Tax)

Free delivery on orders above AED 500 in UAE.

1 in stock (can be backordered)

151725

Now accepting payments via cryptocurrency

Elevate your digital audio to its highest potential. This upsampler transforms standard digital files into a high-resolution signal, revealing incredible detail and a lifelike soundstage for the most demanding listeners.

Read More

Overview

The dCS Vivaldi Upsampler stands as a pivotal component within the esteemed dCS Vivaldi digital playback system, serving as both a sophisticated digital-to-digital converter and a high-performance network renderer. This meticulously engineered device takes digital audio from any source – be it a CD transport, computer, or network stream – and intelligently upsamples it to ultra-high-resolution formats like DXD (352.8 kHz or 384 kHz) or DSD (2.822 MHz or 5.644 MHz). This process extracts an astonishing level of detail and musicality that was previously unattainable.

Equipped with a comprehensive array of digital inputs including Ethernet (for UPnP streaming with integrated Tidal, Qobuz, Spotify, and Roon Ready support), asynchronous USB (for direct computer connection), AES/EBU, SPDIF, and SDIF-2, the Vivaldi Upsampler is truly a universal digital hub. Its advanced dCS Digital Processing Platform, combined with cutting-edge jitter-reduction technologies and improved power supplies, ensures an exceptionally clean and precise digital output signal. Housed in an aerospace-grade machined aluminum chassis and controllable via a full-color front panel, dedicated app, or premium remote, the Vivaldi Upsampler delivers a profoundly immersive and transparent musical experience, setting a benchmark for digital audio performance.

-Utilises the latest generation dCS Digital Processing Platform for state-of-the-art measured performance and unrivalled fidelity
-Designed for maximum flexibility, both input and output configuration can be optimised for systems with various digital sources
-Comprehensive clocking architecture to minimise jitter
-High quality streaming from TIDAL, Qobuz, Deezer and internet radio via the dCS Mosaic Control app
-Roon Ready, AirPlay, Spotify Connect and UPnP compatible
-USB, AES, Dual AES and S/PDIF digital audio inputs
-Auto clocking mode, Save/Restore settings, Universal Master Mode, the hiding of inactive inputs, DXD Lock and DSD Feed-through modes improve ease-of-use
-Asynchronous Network and USB interfaces do not use the computer’s jittery clock
-Improved power supplies give lower running temperature and superior tolerance to AC supply variations
-Multi-stage regulation ensures sensitive clock and PLL circuitry is unaffected by digital interference
-Aerospace-grade machined aluminium chassis fitted with tuned acoustic damping panels reduces magnetic effects and vibration
Type Digital-to-Digital Converter
Colour Silver or Black
Dimensions 444mm/17.5” x 435mm/17.2” x 125mm/5.0”. Allow extra depth for cable connectors. Allow space for air flow around the unit
Weight 14.2 kg/31.3lbs

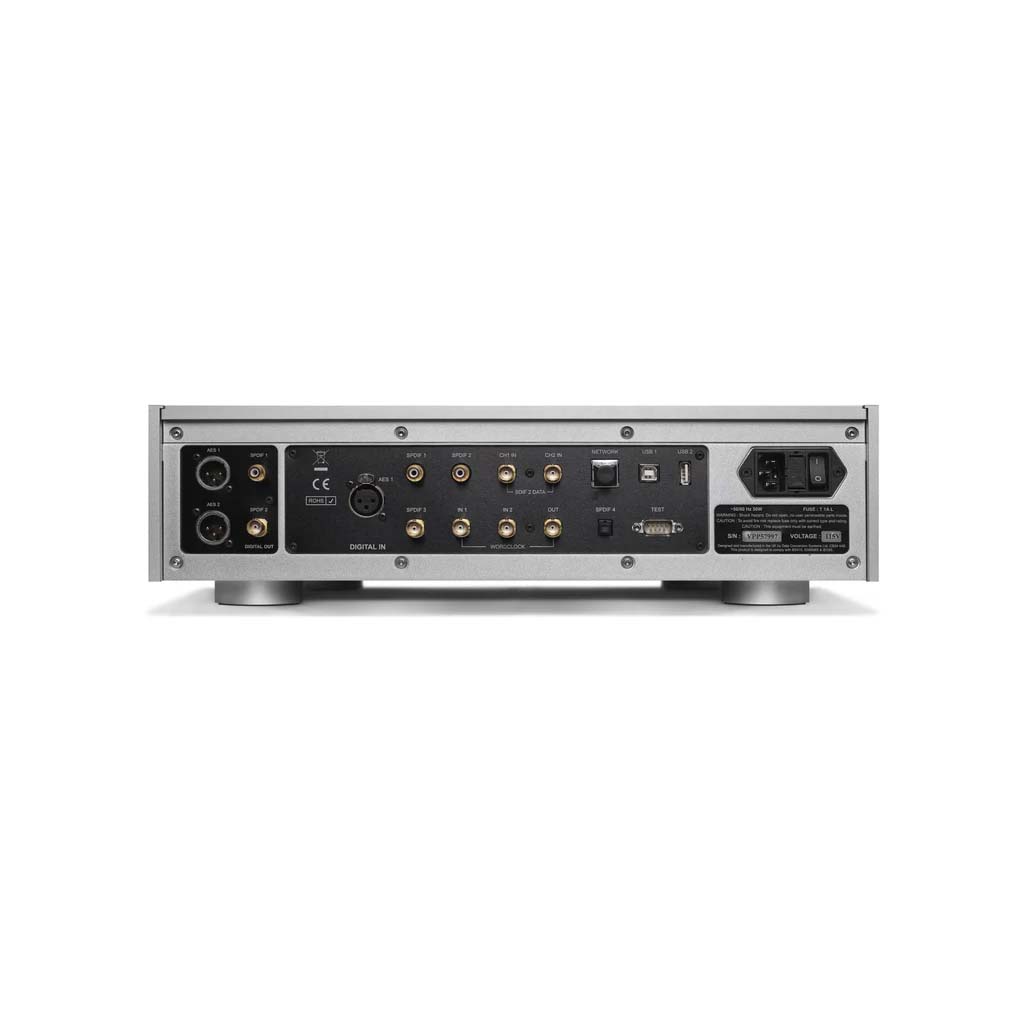

Digital Inputs Ethernet network port on RJ45 connector, accepts 24-bit 44.1 – 384kS/s PCM, DSD/64 & DSD128 in DFF/DSF format; USB 2.0 interface on B-type connector, accepts 24-bit 44.1 – 384kS/s PCM, DSD/64 & DSD128 in DoP format; USB On-The-Go interface on A-type connector, accepts 24-bit 44.1 – 384kS/s PCM, DSD/64 & DSD128 in DFF/DSF format; 1 x AES/EBU input on 3-pin female XLR connectors, accepts 24-bit 44.1 – 192kS/s PCM, DSD/64 & DSD/128 in DoP format; 2 x SPDIF on RCA Phono connector, accepts 24-bit 44.1 – 192kS/s PCM & DSD/64 in DoP format; 1 x SPDIF on BNC connector, accepts 24-bit 44.1 – 192kS/s PCM & DSD/64 in DoP format; 1 x SPDIF optical on TOSLINK connector, accepts 24-bit 44.1 – 96kS/s PCM
Digital Outputs 2 x AES interface on 3-pin male XLR connectors, each outputs 24-bit 32 – 192kS/s PCM, DSD/64 in DoP format; 1x Dual AES Pair on 2x 3-pin male XLR connectors, outputs 88.2 – 384kS/s & DSD/64 & DSD/128 in DoP format; 2 x SPDIF interface on RCA Phono and BNC connectors, outputs 24-bit 32 – 192kS/s PCM, DSD/64 in DoP format
Upsampling Rates Data from any input may be converted to 24 bit PCM at 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8 or 384kS/s or DSD/64 or DSD/128. The output sample rate must be equal to or greater than the input sample rate
World Clock I/O 2 x Word Clock Inputs on 2 x BNC connectors, accept standard Word Clock at 44.1, 48, 88.2, 96, 176.4 or 192kHz. The data rate can be the same as the clock rate or an exact multiple of the clock rate. Sensitive to TTL levels; 1 x Word Clock Output on 1x BNC connector. Outputs standard Word Clock at a frequency equal to the (single wire) output data rate, or 44.1kHz when set to output DSD
Spurious Responses Better than -100dB0 @ 20Hz-20kHz for Fs> 32kS/s, 20Hz-14kHz for 32kS/s
Filters A choice of anti-alias filters is available for 12 popular conversions
Software Updates Downloaded and installed from the internet via Mosaic App
Local Control dCS Mosaic App for Unit Configuration and Music Playback. dCS Universal Remote handset is supplied with Vivaldi DAC. RS232 (controlled by a third party device)
Power Supply Factory set for 100, 115, 220 or 230V AC, 50-60Hz
Power Consumption 15 Watts typical/18 Watts maximum
