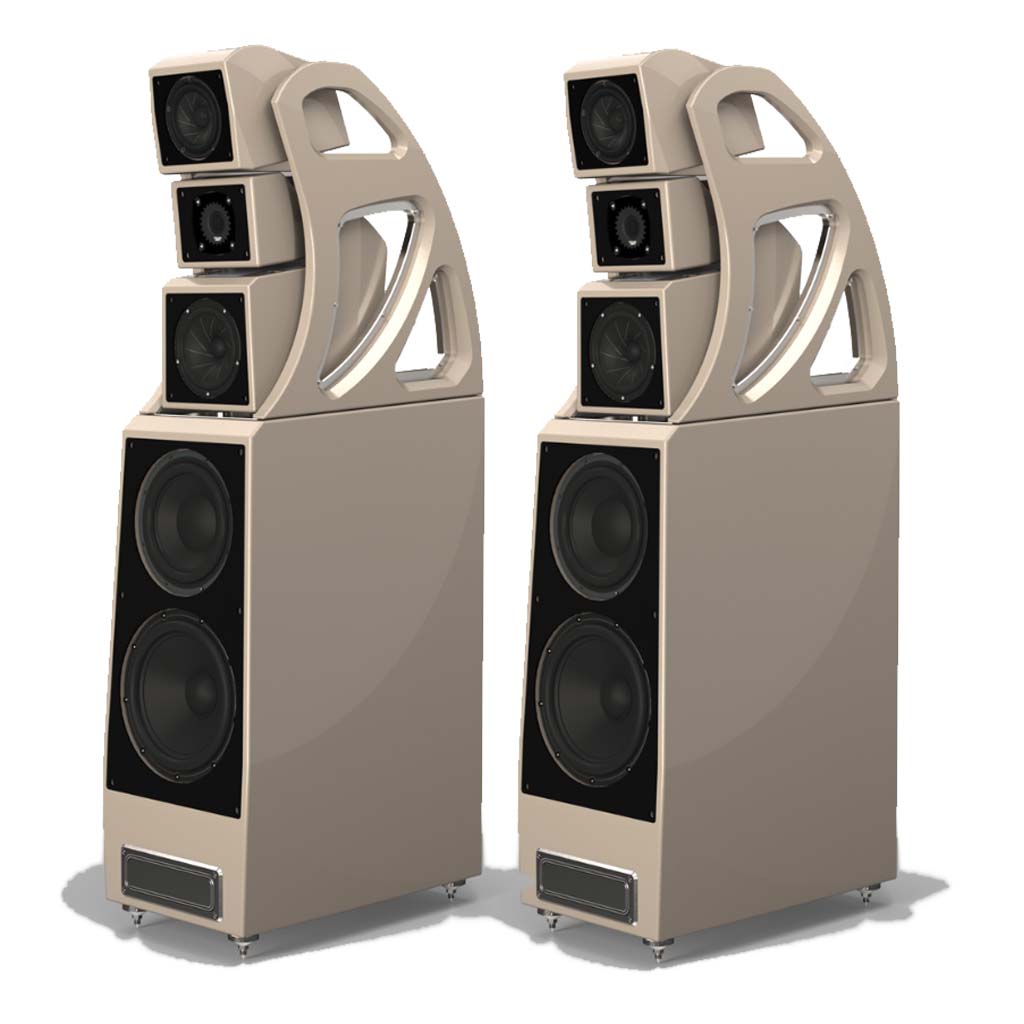

The original Alexx loudspeaker, launched in 2016, quickly gained critical acclaim throughout the industry. Alexx benefited from several elements developed during the five years Wilson Audio’s founder David A. Wilson and his unwavering R&D team brought to life his magnum opus: the WAMM Master Chronosonic. Now, five years after the monumental accomplishment of the WAMM, Alexx V builds upon the original Alexx’s success by offering a completely re-engineered performance envelope without greatly increasing the footprint. Comparing the overall size of Alexx V to the original, Alexx V is only one inch deeper and one inch taller while maintaining the same width. Each and every component of Alexx V has been re-evaluated and significantly improved. The launch of Alexx V represents a cumulative approach to loudspeaker design, something that Wilson Audio has been steadfast about integrating since the very first location monitor (WATT®) that Dave built almost five decades ago. Incorporating the latest technologies, engineering efficiencies, and material sciences, Alexx V has improved upon the original Alexx by giving, yet again, a higher level of resolution (both temporally and audibly). Finally, Alexx V incorporates Wilson Audio’s latest design language which started with the WAMM Master Chronosonic. The open gantry design not only allows for more structural rigidity and setup flexibility, it also provides a more free-flowing organic look and emotionally expressive sound.



Materials

Alexx V features unique and exotic materials that have been tested, developed, and refined exclusively for Wilson Audio over the course of roughly fifty years. Methodically utilizing mixed-materials, in pursuit of obtaining the highest performance, has long been a fundamental aspect of each Wilson loudspeaker.

A variety of carefully chosen materials have been implemented in this distilled design. The latest version of X-Material, extremely monotonic and damped in its response, is found throughout the woofer, gantry, and upper modules. S-Material is tightly coupled to each midrange and provides a neutral and natural surface from which music can launch. First used in the Chronosonic XVX, our latest and most remarkable sound-vortex, V-Material, is strategically nested into interface locations for superior vibration control. V-Material behaves like a vibration absorber and has been put in the structure between the woofer module and the gantry. V-Material can also be found in our new, carefully engineered, and high-performing Wilson Audio Acoustic Diode™ spike system.

X, S, and V-Material, combined with carbon fiber, austenitic stainless steel, and aerospace-grade aluminum, are aesthetically and judiciously blended to create cutting-edge audio and industrial art.

Adaptable

Alexx V boasts an exceptionally adaptable design, incorporating elements from its larger siblings, such as the XLF reversible woofer port and independently adjustable modules. These features enable the system to be seamlessly tailored to fit your listening room with elegance. The intrinsic adaptability of Alexx V, woven into its DNA, facilitates easy installation in a diverse range of listening spaces, allowing listeners to fully experience the depth and capabilities of the system.

The open architecture gantry, originally introduced with the WAMM Master Chronosonic and later seen in the Chronosonic XVX, has now become an integral part of Alexx V. This not only enhances the overall aesthetics of the loudspeaker but, more crucially, improves the rigidity of the entire upper module section while minimizing pressure trapped behind the enclosures. This results in heightened fidelity. The open gantry design not only contributes to the appearance of the loudspeaker but also plays a critical role in enhancing rigidity in the upper module section, reducing pressure build-up behind the enclosures, and ultimately improving fidelity.

Additionally, the accessibility to the upper modules has been improved, allowing for quicker adjustments. Taking a cue from our innovative lighting solution (Sono 1™ from Coolfall®) featured in Chronosonic XVX, Alexx V incorporates an illumination cross-brace at the rear of the gantry. This feature aids in speaker module setup and fine-tuning of time alignment.

Drivers

Continuing the Midrange – Tweeter – Midrange (MTM) design geometry of the original Alexx, our Engineering team has devoted considerable time to advancing key components of the loudspeaker’s sound characteristics. Every baffle angle at each module position has undergone refinement, bringing the time-alignment accuracy of Alexx V much closer to the XVX. This refinement grants the system the ability to recreate micro-detail one would expect from a much larger system.

The different sizes of lower and upper midrange drivers enable a meticulous tuning of the frequency band, coupled with the latest manufacturing advances, providing a greater degree of accuracy and adjustability. The 5.75” mid-woofer, known for its speed and resolution and used in the original Alexx, TuneTot®, and SabrinaX, continues its legacy in Alexx V. Managing the midrange band with two dissimilar sized drivers, we leverage the incredible advances of our Alnico (Aluminum, Nickel, Cobalt) QuadraMag® design. Originally developed for Chronosonic XVX, the 7” midrange driver brings warmth, beauty, and texture to the system, featuring four separate magnets arranged in an innovative quadrature geometry, enhancing the delicate intricacies found in the midrange region.

Behind the midrange drivers, internal wave diffusers have been machined directly into the material, aiding the resolving power of these drivers and dramatically increasing the settling speed of the system. This enhances the reproduction of midrange tone, expression, and accuracy in these remarkable midrange drivers.

In the tweeter realm, the R&D team opted for innovation, building an all-new Convergent Synergy® Carbon (CSC) tweeter for Alexx V. This tweeter, manufactured entirely in-house using 3D printers, features a modified version of the previous Convergent Synergy motor and an re-imagined rear-wave chamber. The CSC tweeter delivers far greater and more linear high-frequency extension, along with unprecedented ambient retrieval and superior harmonic detail.

The 10.5” and 12.5” woofers, originally developed in conjunction with the WAMM Master Chronosonic, represent state-of-the-art bass drivers. These drivers incorporate Wilson Audio’s latest advancements in accurate and musically relevant low-frequency reproduction. By carefully optimizing the Alexx V enclosure and significantly increasing the internal volume (+16%) compared to the original Alexx, the system achieves almost the same internal woofer volume as the Chronosonic XVX. This enhancement allows for much deeper low-frequency reproduction, faster transient settling, and an overall increase in bass resolution.

Drivers
- Woofers:
One—10 1/2 inch (26.67 cm)
One—12 1/2 inch (31.75 cm)
- Midrange: Two—7 inch (17.78 cm) / 5 3/4 inch (14.61 cm)
- Tweeter: One—1 inch (2.54 cm)

Enclosures & Materials
- Enclosure Type Woofer: XLF port, adjustable Rear or Front firing
- Enclosure Type Midrange: Lower: Rear Vented / Upper: Rear Vented
- Enclosure Type Tweeter: Sealed

Measurements
- Sensitivity: 92 dB @ 1W @ 1 meter @1 kHz
- Nominal Impedance: 4 ohms, 2.0 ohms minimal @ 250 Hz
- Minimum Amplifier Power: 50 Watts per channel
- Frequency Response: +/- 3 dB 20 Hz - 32 kHz

Dimensions
- Height: 63 5/16 inches (161 cm)
- Width: 15 3/4 inches (40 cm)
- Depth: 27 29/32 inches (68 cm)
- System Weight (Per Channel): 500 lbs each (226.80 kg)
- Total System Shipping Weight (Approximate): 1,400 lbs pair (635.03 kg)
