Overview
A high-performance digital-to-analog converter for immaculate musical detail
The RD160 is the first standalone DAC from Korean audiophile wizards HiFi Rose. It has their signature look and operational innovation, with simple front-panel controls and display. More importantly, its high-quality internal design uses a two-chip AKM DAC, three customized reference power supply units, and impeccable circuitry that can render music from all of your digital sources with crisp, articulate detail.
Dual-chip AKM DAC divides and conquers digital duties
AKM designed the RD160’s DAC module in collaboration with MUSES, an audio-focused semi-conductor developer. The dual-chip design divides the DAC’s decoding duties — one chip handles digital filtering and initial delta-sigma conversion stages while the other performs the digital-to-analog conversion. That helps this unit deliver immaculate analog sound with remarkably low noise
Connections for a wide range of digital sources and balanced output
The RD160 has coaxial and optical inputs, plus a USB-B input for your computer. It also has an audio-only HDMI I2S, AES/EBU XLR, and SFP (small form-factor pluggable) fiber ports. The fiber port provides the clearest possible signal from compatible components, like this DAC’s perfect match, the RS130 streaming transport.

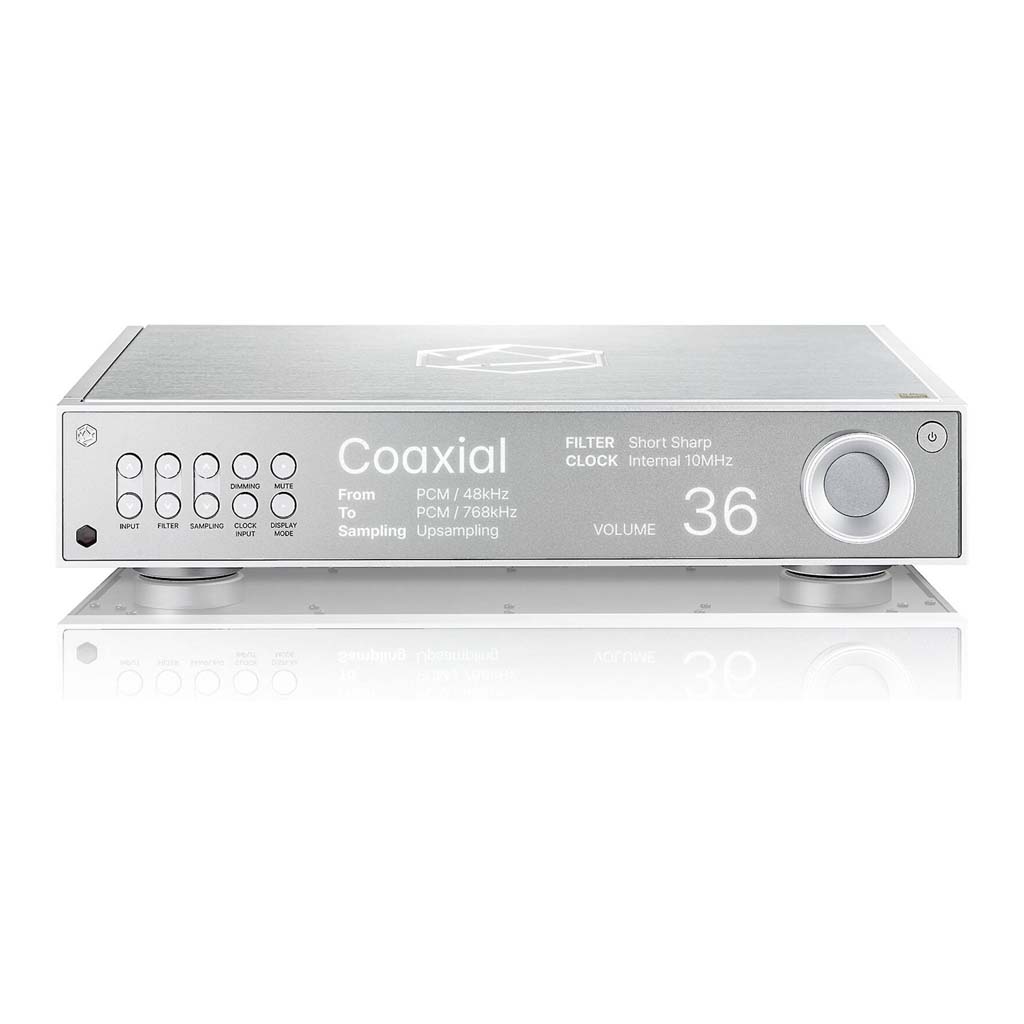

Easy front-panel control with a detailed “hidden” display
What looks like a blank front panel turns into a detailed display when you power up the RD160. A bank of buttons let you select input and cycle through filter and upsampling presets. You can also choose a clock input if you’re using an external one, mute playback, and set the display’s brightness and mode. The instantly responsive display can show you decoding data, a circuit-like design flow chart, and more. There’s also a large, defeatable volume knob.
Precision clock features for perfectly accurate timing
The RD160’s super-accurate built-in OCXO clock maintains a constant working temperature. That helps it keep timing errors that can smear musical detail to a very low level. You also get inputs for adding an external master clock generator for even cleaner, more precise, jitter-free digital audio signals.

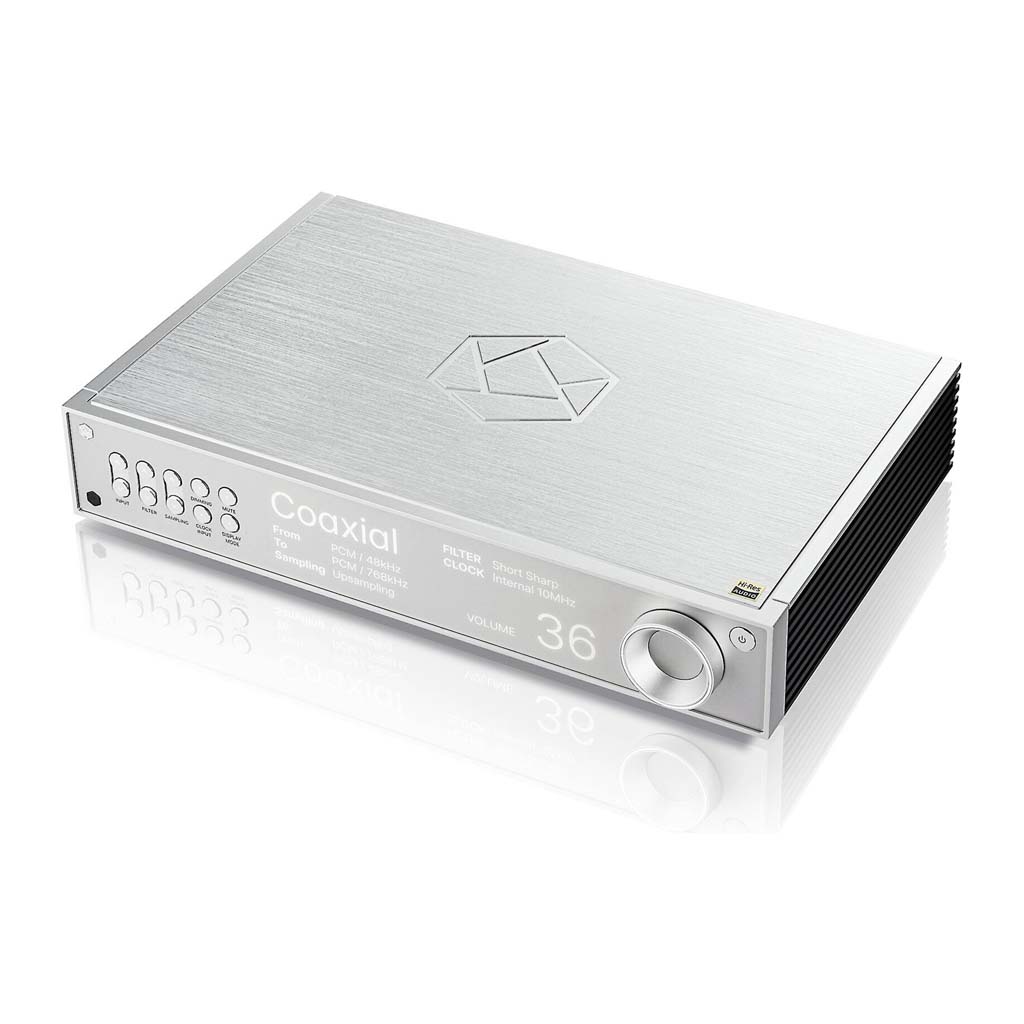

Exceptional build-quality, inside and out
This DAC features a chassis milled from a single piece of aluminum to eliminate joint vibration. Heat sink side panels keep internal running temperatures cool. Inside, three customized power supply units occupy the heart of the RD160’s top-quality circuitry. Critical input and output sections are wired using high-quality oxygen-free copper for distortion-free signal transfer.
The digital stage of the RD160 features the ROSE DPC™ module. It precisely synchronizes digital input signals with the high-precision OCXO clock for immediate, lifelike sound. And the circuit for the front-panel graphical user interface (GUI) is completely isolated from the digital audio signal path, nipping distortion and interference in the bud.
- AK4191 chip handles digital filtering and initial delta-sigma conversion stages
- AK4499EX chip performs digital-to-analog conversion
- Three reference linear power supply units minimize interference between channels and prevent digital noise
- High-quality J-FET input dual op-amps developed in collaboration with MUSES provide wide dynamic range and super-low distortion
- Rose NRA™ filtering provides wide, consistent frequency response
- High-precision OCXO clock suppresses timing errors that can smear musical detail - ROSE DPC™ module precisely synchronizes digital input signals with the OCXO clock for immediate, lifelike sound
- 4 upsampling and 6 filter options for flexibility in getting the best sound from a variety of recordings
- Large "hidden" display shows source, upsampling and filter selections, volume, and more in a circuit-like design
- Chassis machined from a single piece of high-purity aluminum minimizes vibrations that could interfere with audio signal
- Heat sink side panels keep operating temperature cool
- High-quality oxygen-free copper wiring in internal power and audio input/output sections ensures distortion-free signal transmission.
The HiFi Rose RD160 Absolute True Fidelity DAC (digital-to-analog converter) takes digital audio fidelity to new heights with advanced technology and superior craftsmanship. With seven total inputs and balanced and unbalanced outputs, the unit provides wide connectivity for your media sources and output stages. It has a unique AMOLED hidden display that takes up over half of the front panel, but disappears when you turn it off. With 4.5V (unbalanced) and 9V (balanced) analog outputs, the Absolute True Fidelity DAC is capable of functioning as a preamp, connecting it directly to your power amp. You can control the volume on the unit or with the full-sized wireless remote. The RD160 has an aluminum and rust-proof steel chassis that is as beautiful as it is solid. The DAC comes with an IR remote control, a detachable IEC power cord, and a 1-meter USB A-to-B cable.
Front Panel Display: The RD160's large front panel display features two "hidden" polycarbonate AMOLED screens that show a weatlth of information in selectable modes. The high-contrast display can show a flow chart of how the DAC functions from the input to the filters and the analog output. It can also single or dual soundwaves that respond to the music, or a graphical display of the volume curve. When the source display is chosen, you'll be able to view the source and volume setting from across the room, the input and output signal type and resolution, plus the chosen filter and clock settings. You can change the brightness of the display via the front panel controls or the remote. When the unit is turned off, the display disappears, showing a plain matte front finish.
Front Panel Controls: The front panel includes a large rotary volume knob that gives you detailed control of the volume on a scale of 0 to 100. Above the volume knob is the unit's Power button. On the other side of the display are ten push-button controls for Input (up/down; 7 choices), Filter (up/down; 6 choices), Sampling Rate (up/down; 4 choices), Dimming (6 levels), Clock Input, Mute, and Display Mode.
Remote Control: Included with the RD160 is a full-sized wireless remote control that mirrors the front panel controls, except for Clock Input. The sleek silver aluminum 38kHz Infrared remote is powered by two "AAA" alkaline batteries, which are included.

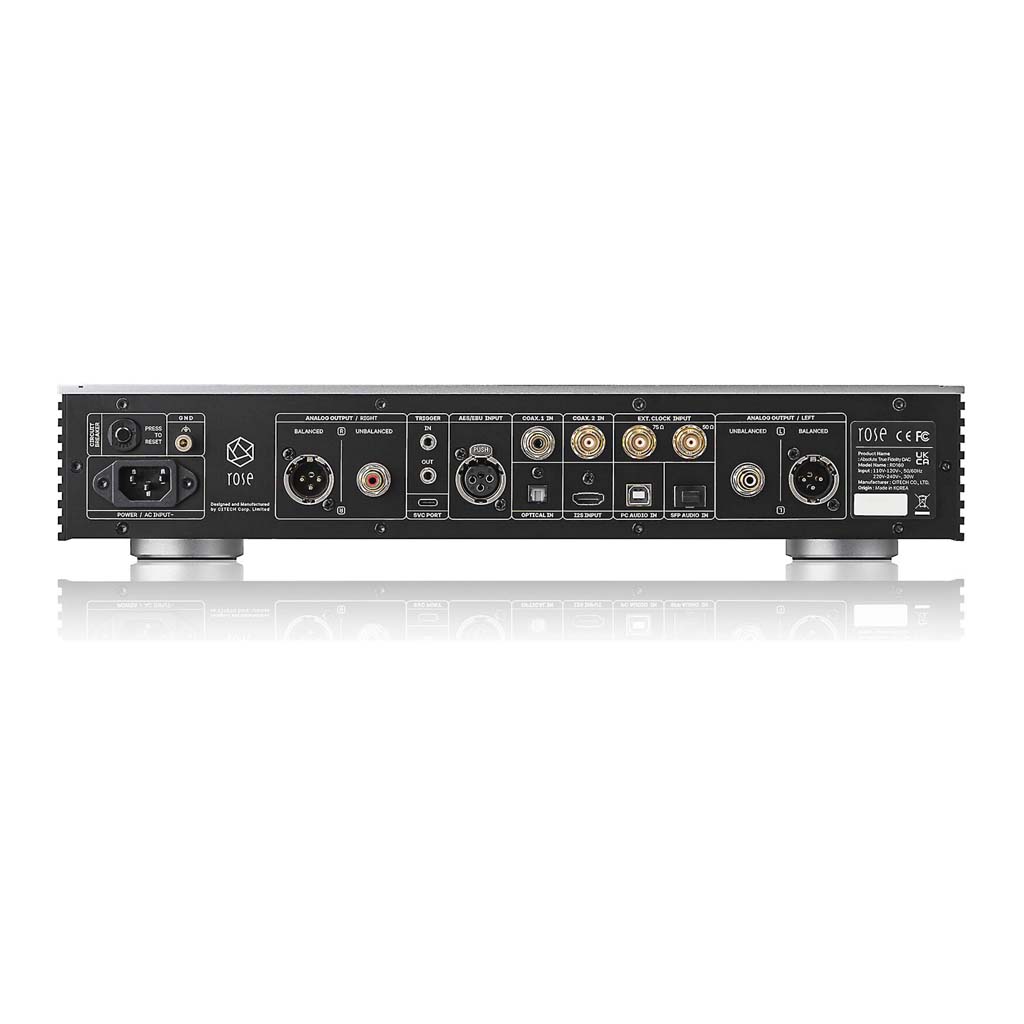

Inputs/Outputs: The RD160 Absolute True Fidelity DAC offers seven digital inputs and two analog outputs:
Inputs:
USB SFP (small form-factor pluggable) Module: PCM up to 32-bit / 768kHz, Native DSD512 (22.6 MHz)
USB 2.0 Type-B: PCM up to 32-bit / 768kHz, Native DSD512 (22.6 MHz)
HDMI I2S: PCM up to 32-bit / 768kHz, Native DSD512 (22.6 MHz)
Coaxial (RCA): PCM up to 32-bit / 384kHz, DSD128 (5.6 MHz)(only DoP)
Coaxial (BNC): PCM up to 32-bit / 384kHz, DSD128 (5.6 MHz)(only DoP)
Optical: PCM up to 24-bit / 192kHz, DSD64 (2.8 MHz)(only DoP)
AES/EBU (XLR): PCM up to 32-bit / 384kHz, DSD128 (5.6 MHz)(only DoP)
Outputs:
Balanced (Stereo XLR pair)
Unbalanced (Stereo RCA pair)
External Clock Inputs:
BNC 75Ω (10MHz)
SMA 50Ω (10MHz)
AC Power Input: IEC C14 3-prong inlet
Ground: Screw terminal for grounding to an external device
Trigger In/Out: Female 3.5mm jacks for sending or receiving power control signals
Dual-chip AKM DAC: Each channel of the RD160 is equipped with dual audiophile-grade chips from AKM to provide immaculate sound. The AK4191EQ multi-bit Premium Digital Data Converter uses VELVET SOUND™ technology to process the digital signal, minimizing the effects of digital noise within the analog output. It has a digital filter with a premium multi-bit delta-sigma modulator for superb signal-to-noise performance. The AK4191EQ, paired with the world-class AK4499EXEQ, processes digital signals with extreme accuracy, bringing out the details in your music. The RD160 provides high-quality digital-to-analog conversion, and extreme high-resolution playback up to 32-bit/768kHz and DSD512.
ROSE CIM™: The RD160's ROSE CIM (Completely Isolated and Moduled) architecture physically separates the digital and analog stages. This unique design minimizes crosstalk and interference so each signal remains pure and clean. By isolating the left and right channels, stereo imaging and dynamic range are greatly improved.
ROSE NRA™ Filter: The analog stage of the DAC features the ROSE NRA™ (Noise Reduction Analog) filter, which ensures the frequency response remains flat across the spectrum, especially in low frequencies. From the lowest lows to the highest highs, each note is reproduced with high fidelity and consistency. The audio remains smooth and detailed at any volume.
Power Supplies: The RD160 Absolute True Fidelity DAC features three independently customized reference linear power supply units to deliver optimum power for each section. The DAC has a dedicated power supply for the digital input stage, and one each for the left and right analog output stages. Isolating power delivery in this manner results in lower interference and digital noise, better dynamics, and clearer sound quality.
OCXO Clock: The DAC features a high-precision OCXO, or Oven Controlled Xtal (Crystal) Oscillator, internal clock that reduces timing errors for smooth, detailed audio playback. If you choose to use an external Master Clock Generator, you can connect it to the DAC using a 50Ω SMA cable or a 75Ω BNC cable (sold separately). You can select the internal or external clock using the dedicated front panel Clock Input button.
- 10Hz to 20kHz (-0.3dB)
- 10Hz to 50kHz (-1.5dB)
- 10Hz to 73kHz (-3.0dB)
Sampling Rates:
PCM: 8kHz - 768kHz (8/16/24/32-bit per Sample)
DSD: DSD64 (2.8MHz), DSD128 (5.6MHz), DSD256 (11.2 MHz), DSD512 (22.6MHz)
Input Sensitivity: 0dBF 1kHz
Output Impedance: 300Ω
Output Level:
- RCA (unbalanced): 4.5 Vrms
- XLR (balanced): 9 Vrms
- THD+N (1kHz 0dBF):
- RCA (unbalanced): 0.005%
- XLR (balanced): 0.005%
Signal-to-Noise Ratio:
RCA (unbalanced): 124dB
XLR (balanced): 124dB
Stereo Crosstalk (1kHz 0dBF):
- RCA (unbalanced): -124dB
- XLR (balanced): -124dB
