SVS
PB-3000 R-Evolution

AED 7,938 (Inc. Tax)

(Price Per Unit)
Free delivery on orders above AED 500 in UAE.

4 interest-free payments

2 in stock

7938

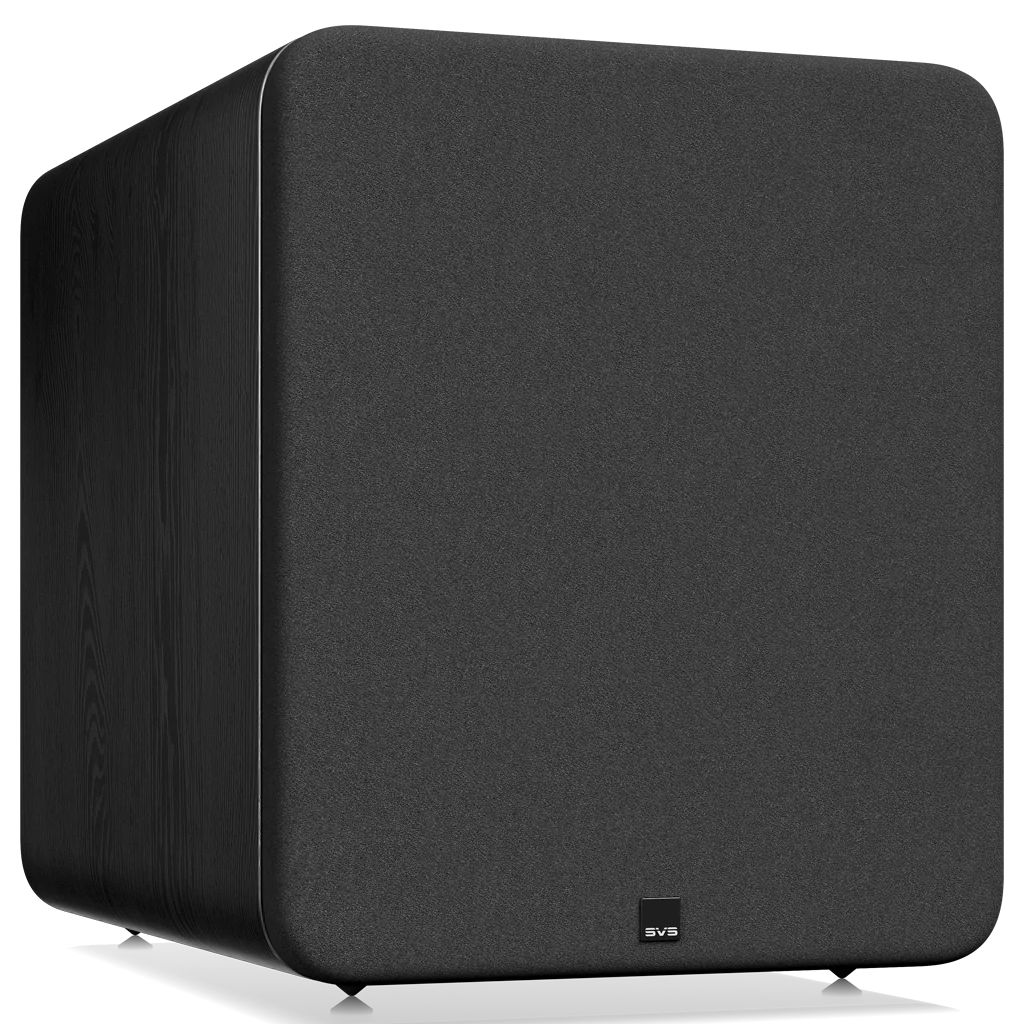

PB-3000 R|Evolution turns every musical and cinematic moment into an event. Built around an all-new 13-inch SVS high-excursion driver and 1,200-watt Continuous MOSFET amplifier, the ported cabinet subwoofer delivers deep, tactile bass with extraordinary speed, control, and tonal accuracy. Explosive dynamics. Ultra-low distortion. Effortless output that energizes your room with bass that hits harder, digs deeper, and stays clean, rising to the demands of any audio content.

Read More

Overview

Reference Subwoofer Performance Hits New Lows.
A subwoofer shouldn’t just be heard, it should be felt, lived, and remembered. The 3000 R|Evolution Series embodies that philosophy. Building on flagship SVS 17-Ultra R|Evolution Series technologies that raised the bar for performance, these models are the sweet spot of SVS subwoofers, delivering unrivaled output, extension,and transient response, with untraceable distortion.

3000 R|Evolution is the culmination of 20+ years of SVS acoustic breakthroughs – engineering that elevates music, home theater, and gaming into emotionally charged, high-impact experiences. These subwoofers don’t just play bass; they unleash it with precision, musicality, and authority that captivates listeners and reshapes expectations.

PB-3000 R|Evolution combines the most sophisticated SVS subwoofer technology ever developed with trailblazing innovations to set a new standard for ported subwoofer performance in its class and beyond.

Iron Fist in a Velvet Glove – Breakthrough Driver Architecture.
The beating heart of PB-3000 R|Evolution is an all-new high-excursion 13″ driver with groundbreaking voice coil design engineered for immense, effortless output with surgical accuracy.

Flat-Edge Split-Wind Voice Coil maximizes magnetic force at high excursion while maintaining ultra-low mass for responsiveness and efficiency.The result is room-shaking output with unerring accuracy and a highly visceral experience.

Two-Piece Toroidal Ferrite Magnet Overhung Motor maintains precise linearity to drive the highest levels of excursion, SPL, and start/stop power for the deepest, most authoritative bass possible from a 13″ driver.

Rigid 1100 Pure Aluminum Cone is lightweight and neutral for convincing, distortion-free output, even at extreme levels.

Long-Throw Extreme Excursion SBR Surround maintains ideal pistonic motion while enabling massive driver movement for clean, room-pressurizing low end.

Power with Control. STA-1200D2 MOSFET Amplifier.Empty heading
Conservatively rated at 1,200 watts Continuous and 4,000+ watts peak power, the STA-1200D2 amplifier maximizes the 13" driver's full potential with effortless power and absolute control.

The pioneering design combines the efficiency of a Class D amplifier with the ability to move massive current through the fully discrete MOSFETs for outstanding real-world subwoofer performance at all drive levels.

High Current MOSFET Output with Class-D Efficiency allows the STA-1200D2 amplifier to move massive amounts of current through the fully discrete MOSFETs, enabling the 13" driver to fully maximize on its potential with output beyond reference levels with control and accuracy.

Performance Enhancing Switch Mode Power Supply (SMPS) maximizes system performance and reliability under all operating conditions by monitoring amplifier and AC main output voltage/current as well as multiple temperature sensors.

Premium Grade 56bit Digital Audio Processing and premium DACs (Digital-to-Analog Converters) with more than 120 dB Signal-to-Noise Ratio provide greater headroom, lower noise, and flawless fidelity.

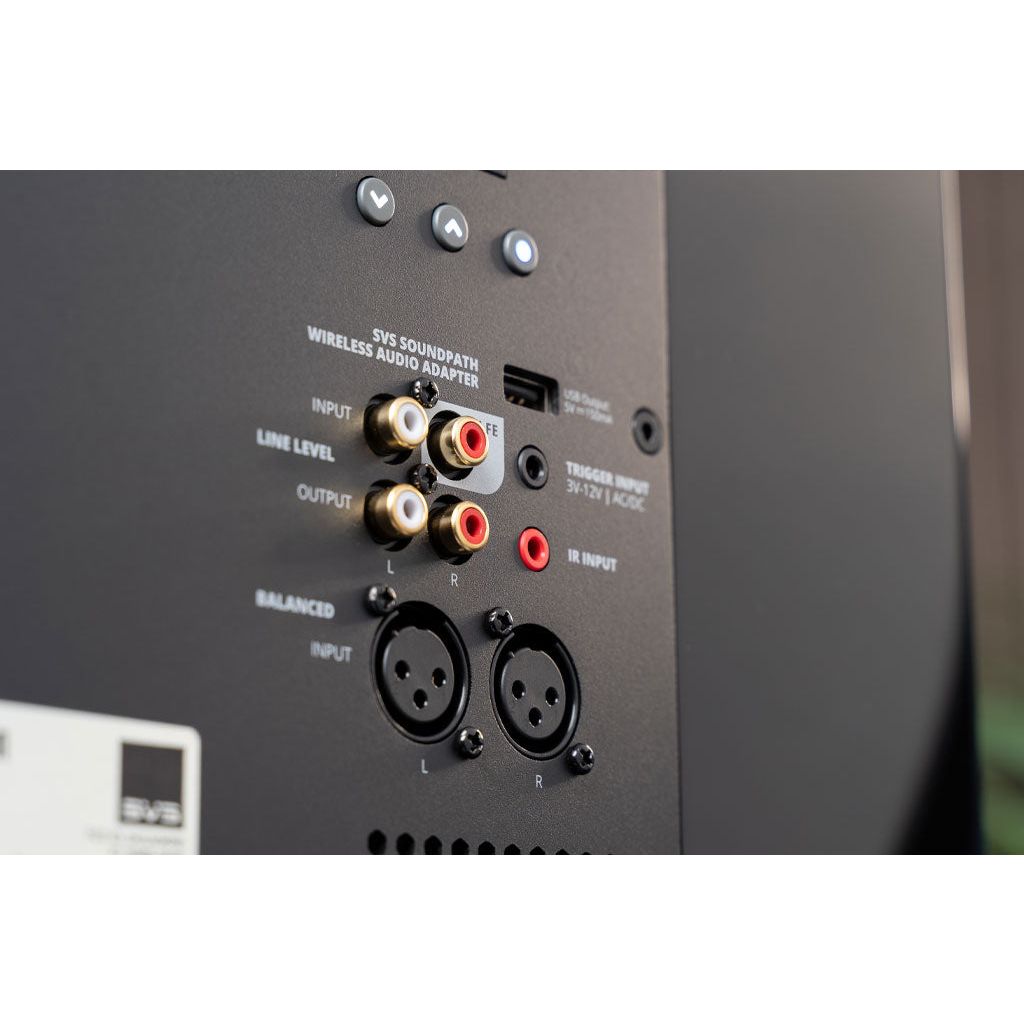

Balanced XLR 18kohm Input for pristine audiophile performance and long-distance cable runs. Compatible with consumer and pro audio systems.

The Brains Behind the Brawn. 295 MHz Analog Devices DSP.
Orchestrating the cutting-edge amplifier, motor, and driver ecosystem is the most sophisticated DSP ever deployed in a home audio subwoofer.

Accurately shapes in-room frequency response with absolute precision for faithful signal reproduction
Monitors every function of the amplifier to stabilize AC voltage delivery to the power supply to maintain consistent peak output
Multi-point thermal, voltage, and current monitoring systems ensure maximum output and efficiency
Advanced digital audio processing and DACs (Digital-to-Analog Converters) with 120 dB Signal-to-Noise Ratio provide greater headroom, lower noise, and pristine fidelity
Frequency Response / Acoustic Data:
16-235Hz ± 3 dB (standard mode - all ports open)
17Hz to 270Hz ± 3dB (sealed mode - all ports sealed)
Expect 2-3Hz deeper extension in small to mid-size rooms.
Roll-off slope specifically optimized to take maximum advantage of available room gain
2-meter ground plane away from reflective structures (quasi-anechoic)
20% to 60% lower acoustic THD+N in critical low frequency bandwidth compared to previous generation.

Subwoofer Specs:
Premium Black Ash finish

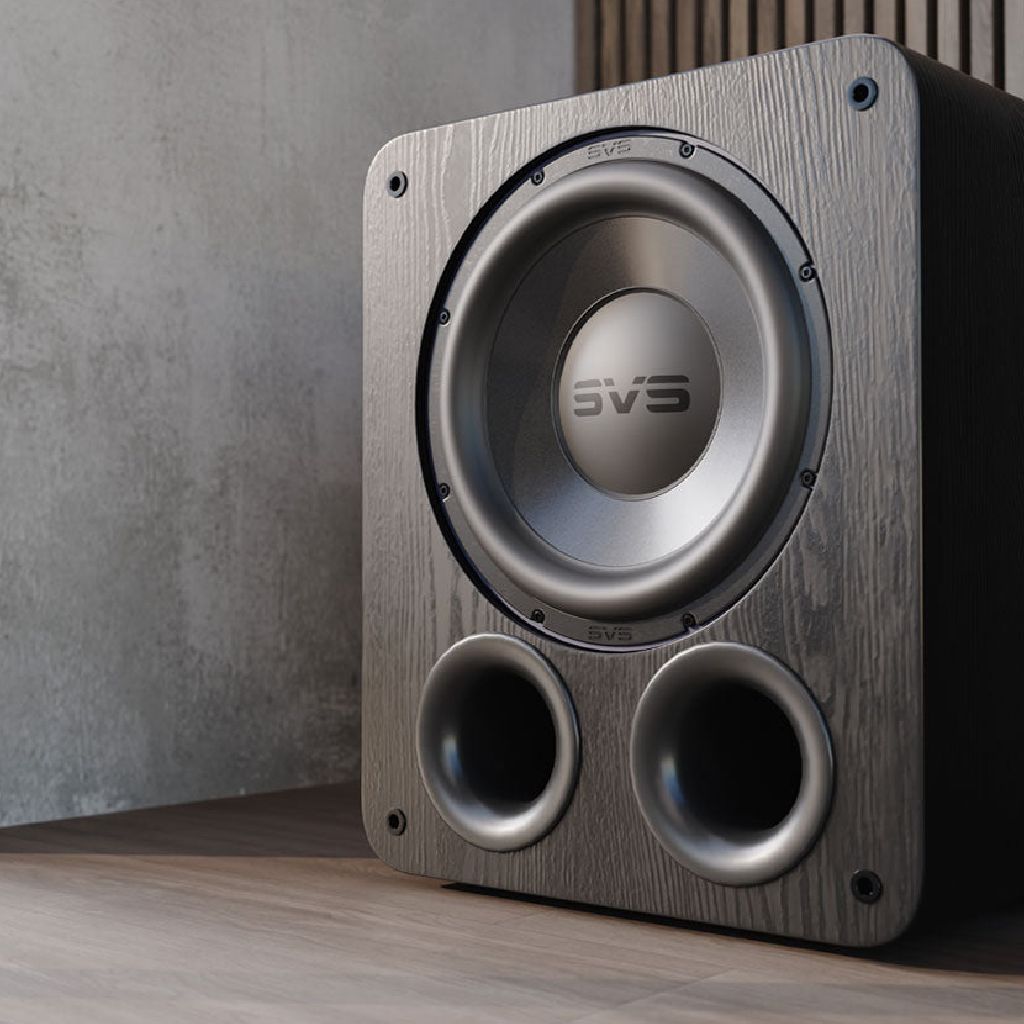

Front Firing 13-inch high-excursion driver
Dual High-flow 3.5-inch ports

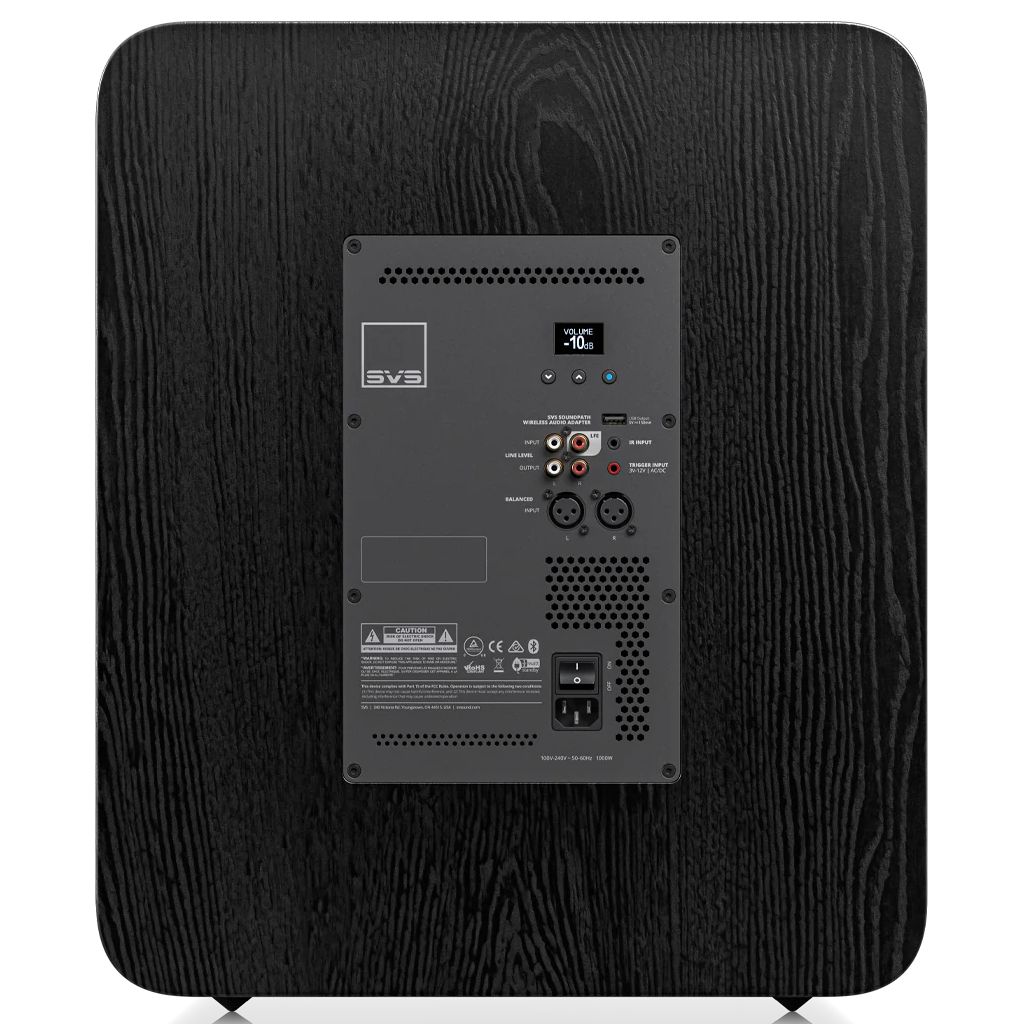

Amplifier Rear Panel OLED and control interface provide fast and direct control of the most important features and includes a convenient "Display Flip" function.

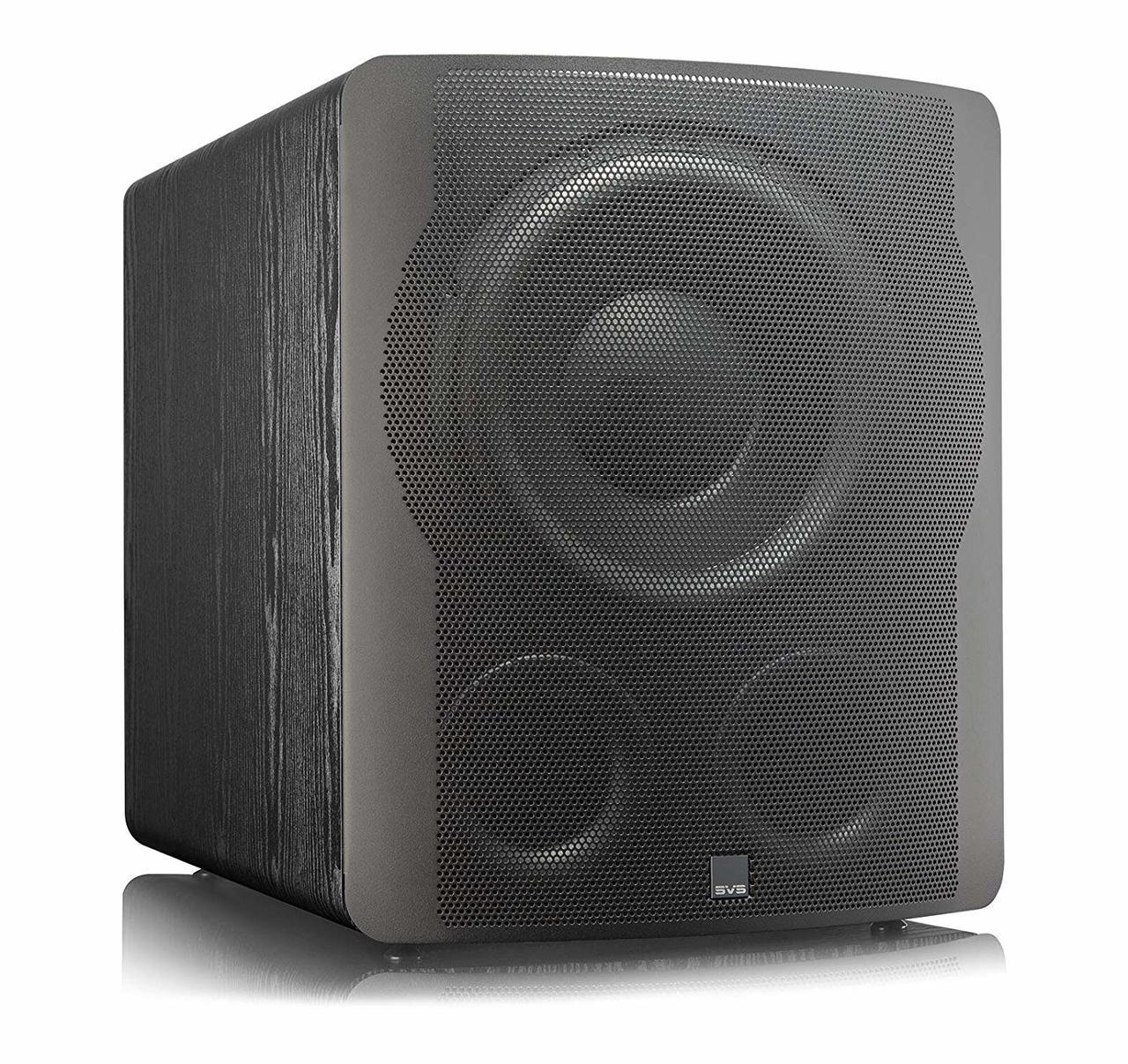

Protective non-resonant extra-thick ABS grille frame with fabric mesh cover shields driver to prevent damage while ensuring longevity.
Robust Medium Density Fiberboard (MDF) cabinet construction with internal bracing for resonance free performance at highest drive levels.
Screw-in Iso-elastomer feet reduce noise artifacts and improve stability
Dimensions (w/ grille): 21.9” (557mm) H X 18.3” (465mm) W X 24.7” (626mm) D
Dimensions (without grille): 21.9” (557mm) H X 18.3” (465mm) W X 23.5” (597mm) D
Shipped Dimensions: 26.6” (675mm) H 24.4” (619mm) W X 29.1” (739mm) D
Weight (unboxed): 85.1 lbs. (38.6 kg)
Shipped Weight: 104.3 lbs (47.3kg)

Driver Specs:
Proprietary 13-inch long-throw driver with high-precision tuned overhung motor configuration.
24.1lb (10.5kg) pound Woofer with 18.5lb (8.4kg) pounds motor
30.1mm Xmax, 72.9mm Xmech precision aligned excursion
SVS industry leading flat edge wound split-wind voice coil provides maximum magnetics at high excursion while reducing mass and improving overall driver efficiency. Built around a premium grade aluminum 2" former for maximum thermal conductivity
Two massive, dedicated toroidal Y30 ferrite magnets generate unparalleled levels of magnetic force to drive the highest levels of excursion, SPL, and start/go power for the deepest and most authoritative bass possible.
High density FEA-optimized Powder-coated cast aluminum basket provides unequaled levels of rigidity, tensile strength, and energy transference available from a subwoofer.
Two balanced 24-strand silver plated Litz wire high temperature leads woven through the 6.5" 2-ply Nomex composite linear spider provide a pristine electrical connection from the amplifier to the voice coil.
Vented 13" 1100 Aluminum cone ensures a light, rigid, and neutral radiating surface.
Precision machined motor elements and narrow tolerance suspension parts produce unmatched linearity at full excursion for exceptionally tight and fast output, even at reference volumes.
Extreme oversized low carbon T07A steel T-yoke and SPHC steel top plate provide superior cooling and improved magnetics for maximum performance and efficiency.
6063 Aluminum shorting sleeve reduces gap induction and distortion, enhances thermal conductivity, and improve magnetic linearity.
Nickel-plated high-tension spring terminals.
Proprietary injection molded gasket and SBR extreme-excursion surround maintains ideal pistonic motion for pinpoint accuracy and control.

Amplifier Specs:
Massively powerful 1,200-watt continuous Class D design with over 4,000 watts of Peak Power.
50% Higher Continuous power output than previous generation
High resolution 295Mhz Analog Devices Audio DSP with double precision 56bit filtering, with over 5x the processing power of our previous subwoofers, the most advanced subwoofer processor available for perfect audio reproduction.
The Switch Mode Power Supply (SMPS) employs dual discrete 65Mhz PMUs (Power Management Unit) that work with the DSP to monitor amplifier output voltage and current, AC main input voltage and current, and numerous temperature sensors. This maximizes system performance and reliability under all operating conditions with optimal efficiency.
DSP runs real time complex power management algorithms, monitoring the real-time power, driver excursion, and current thousands of times per second. This allows the DSP to drive precisely regulated clean voltage, greatest headroom, and maximum current to push the driver's voice coil with optimized efficiency.
Advanced audiophile grade 56bit digital audio processing and premium DACs (Digital-to-Analog Converters) with more than 120 dB Signal-to-Noise Ratio provide greater headroom, lower noise, and flawless fidelity.
Discrete Class D amplifiers create effortless and endless power from four massive 60A 200V MOSFETs, resulting in lower EMI and highest efficiency while providing effortless power each voice coil, producing SPLs and low frequency output with pristine clarity well beyond reference listening levels.
All new Switch Mode Power Supply (SMPS) with a high-efficiently resonant LLC ensuring a consistent regulated 160V rail voltage for the amplifier.
< 0.05% THD+N at rated power (70% to 90% lower than previous generation), ensuring exacting signal integrity at all drive levels.
- Protective non-resonant extra-thick ABS grille frame with fabric mesh cover
- 2 Foam port tuning plugs
- Iso-elastomer feet
- Extra heavy-duty, high current 6' power cord
- Quick Start Guide
