Acoustically Centered Time Alignment Cabinet Architecture
Curved front baffle aligns the sonic emanation point of all drivers on a vertical plane ensuring sound from each driver reaches your ears at the exact same instant.

Maximizes phase coherence for more convincing and immersive soundstage with pinpoint accuracy and imaging.

Midrange drivers and woofers positioned above and below the tweeter allow for seamless crossover blending to create an idealized “point-source” where sound flows from a single point in front of the speaker to optimize dispersion characteristics.

Diamond Coated Aluminum Dome Tweeter
Through a process called Vapor Deposition, a layer of diamond carbon is applied to the aluminum dome tweeters to vastly improve rigidity and acoustic properties.

This breakthrough in material science raises the frequency response well beyond the limits of human hearing resulting in effortless, airy, and unveiled highs with no measurable distortion.

The diamond coating also pushes low frequency extension of the tweeter deeper for more seamless blending with the midrange.

Organic cell lattice tweeter diffuser protects the dome and employs semi-random pattern derived from organic cell structures to improve off-axis response and maximize the listening “sweet spot.”

Quad 6.5” Glass-Fiber Woofers in Force-Balanced Array
Dual opposing active woofers on the top and bottom of the cabinet render effortless low frequency response while addressing room modes. Deep, authoritative bass is evenly spread throughout the listening area.

Mechanical energy from each front-firing woofer is equaled inside the cabinet by the rear-firing woofer eliminating mechanical coloration for pure, accurate low frequencies at any playback level.

Dual 4.5" Glass Fiber Composite Midrange Drivers
Superb stiffness to mass ratio on dual driver array renders stunning dynamics with flawless tonal accuracy.

Frequency Response / Acoustic Data:
Frequency Response: 27Hz to 40kHz (+/-3 dB)
Nominal Impedance: 6 ohms
Sensitivity: 88dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)
Recommended amplifier power: 20 – 300 watts

Speaker Specs:

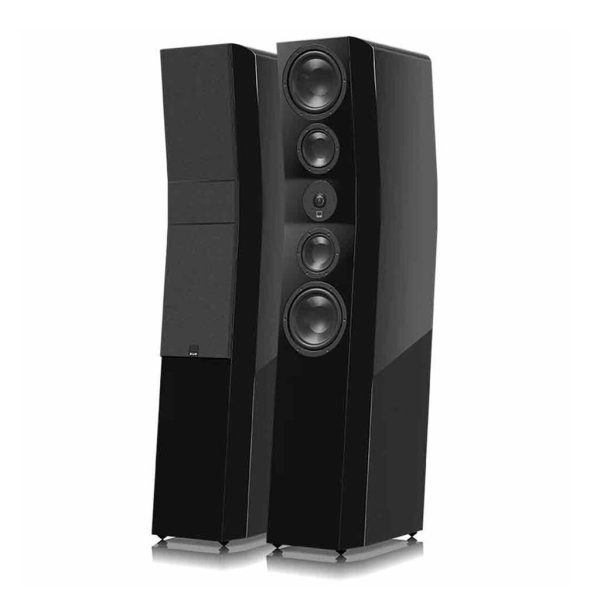

Floor-standing Tower Loudspeaker
Finish options: Piano gloss black, piano gloss white, real black oak veneer
Dual gold-plated 5-way binding posts

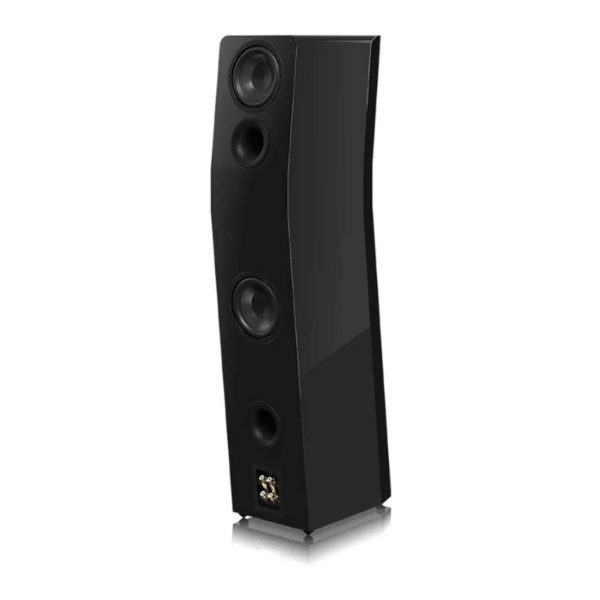

Dual 2.5” wide-flared rear-firing ports
Cloth grille with magnetic retention system
Elastomer screw-in feet: adjustable for level
Spiked metal screw-in feet: adjustable for level
Cabinet Dimensions: 46.54” (H) x 9.8” (W) x 17.3” (D) / 1182mm (H) x 249mm (W) x 439.3mm (D)
Overall Dimensions: 47.13” (H) x 9.8” (W) x 17.3” (D) / 1197mm (H) x 249mm (W) x 439.3mm (D) (includes grille, feet, and binding posts)
Weight (Packaged): 80.5 pounds / 36.5 kgs
Weight (Unboxed): 69.7 pounds / 31.6 kgs

Driver Specs:
1” Diamond Coated Tweeter:
- FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity
- Cutting-edge vapor-deposition grows a hyper-rigid diamond-like coating on an aircraft-grade aluminum dome, pushing high-frequency extension beyond human hearing
- Delivers best-in-class fidelity, linearity, and transient response
- Silver tinsel for optimal signal transfer and power handling
Dual 4.5” Midrange Drivers:
- Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband
- Precision-cast aluminum-alloy baskets ensure precise alignment and thermal dissipation
- Vented Kapton voice coil former for lightweight, excellent dynamics, and transient response
Quad 6.5” Woofers:
- Long stroke motor and suspension for high output
- Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband
- Precision-cast aluminum-alloy baskets ensure alignment and thermal dissipation
- Vented aluminum voice coil former for thermal control and minimized air compression artifacts at high drive levels

Crossover & Cabinet Specs:
Crossover:
- 3-way crossover with premium-grade capacitors, inductors, resistors, and heavy-trace printed circuit board
- Tweeter-to-Midrange crossover: 1.9 kHz
- Midrange-to-Woofer crossover: 160 Hz

Cabinet:
Acoustically Centered Time Alignment architecture:
- Rotational-symmetry orientation for midrange and woofer arrays around the tweeter, ensuring coherent acoustic image
- Microsecond-level time delays between drivers for improved linearity and directionality throughout crossover frequencies
- Quad 6.5” woofers in Force-Balanced Opposed Array for deep, accurate bass and net-zero vibration force
- Dual 4.5” midrange drivers share a dedicated acoustic-suspension enclosure, symmetrical around the tweeter
- Chamfered front baffle and flush-mounted drivers reduce edge diffraction for improved high-frequency response
- Extra-thick 1” (25mm) driver baffles for rigid, resonance-free mounting
- FEA-optimized ¾” (18mm) cabinet construction with extensive bracing and acoustic insulation for inert enclosure and uncolored response at high drive levels
